23 - Lack of Air Conditioning (A/C Not Functioning)
23 - Lack of Air Conditioning (A/C Not Functioning)

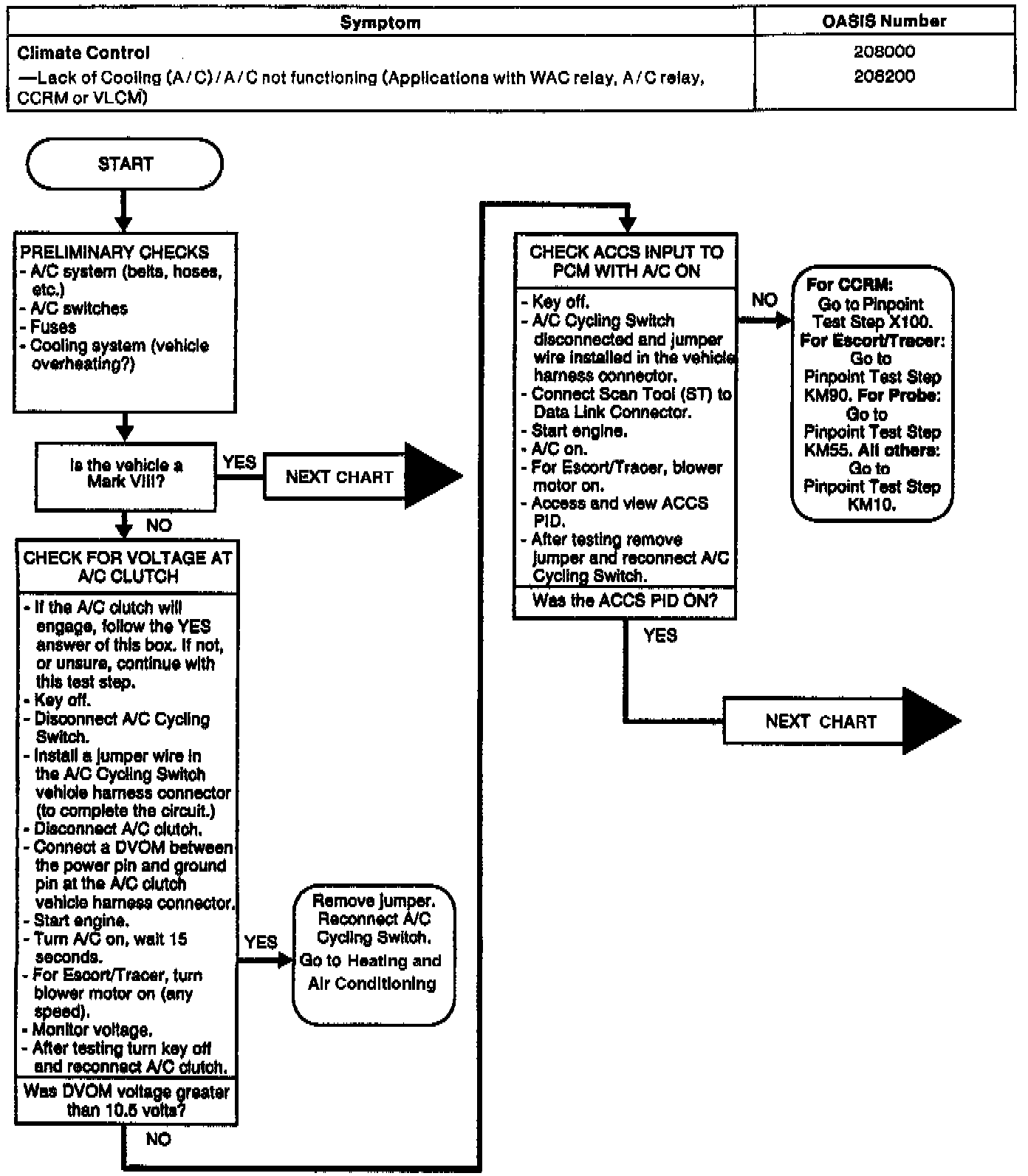

Chart 23 (Part 1 of 2):

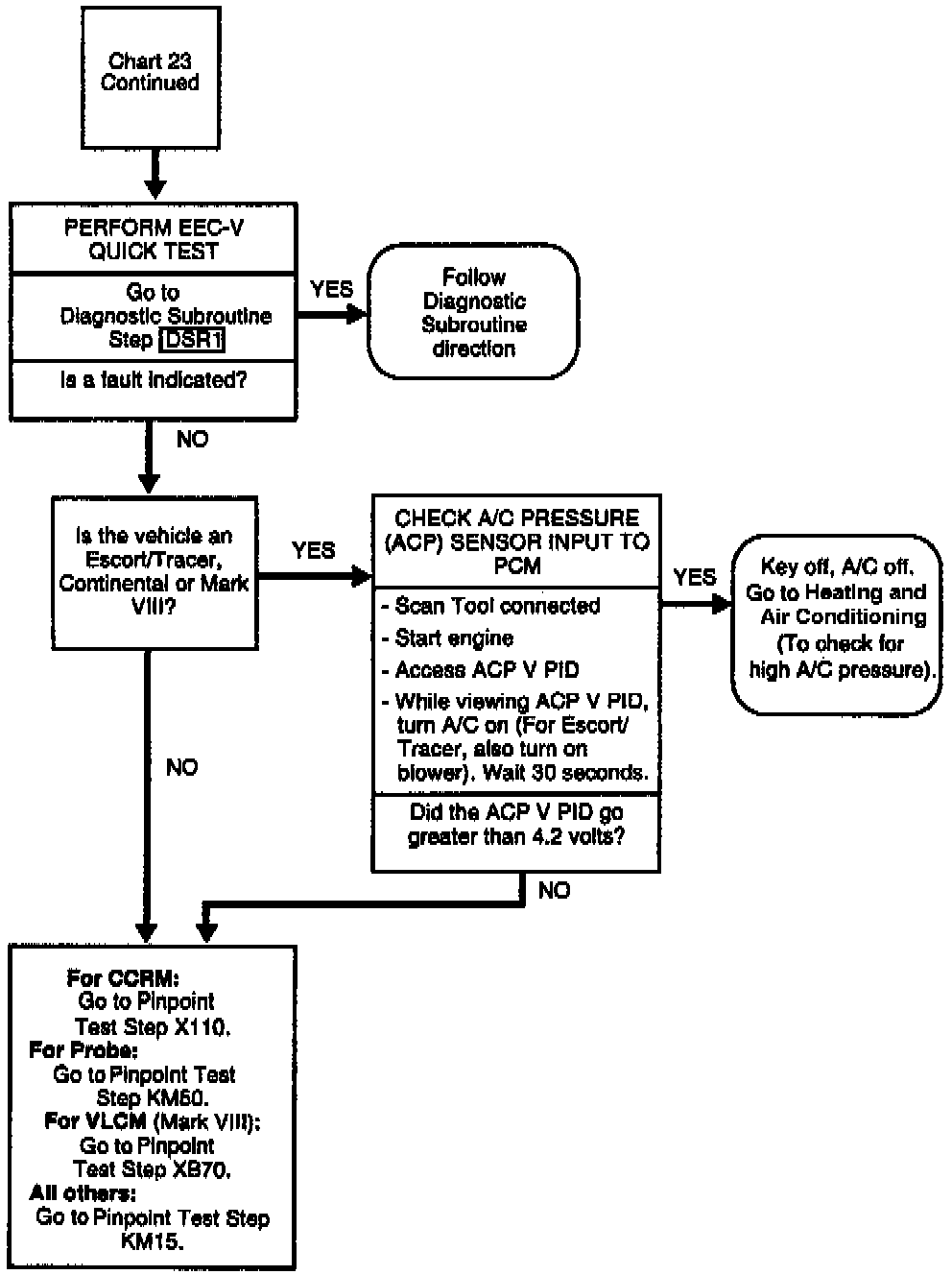

Chart 23 (Part 2 of 2):
