TE - Transmission Fluid Temperature (TFT) Sensor
>>

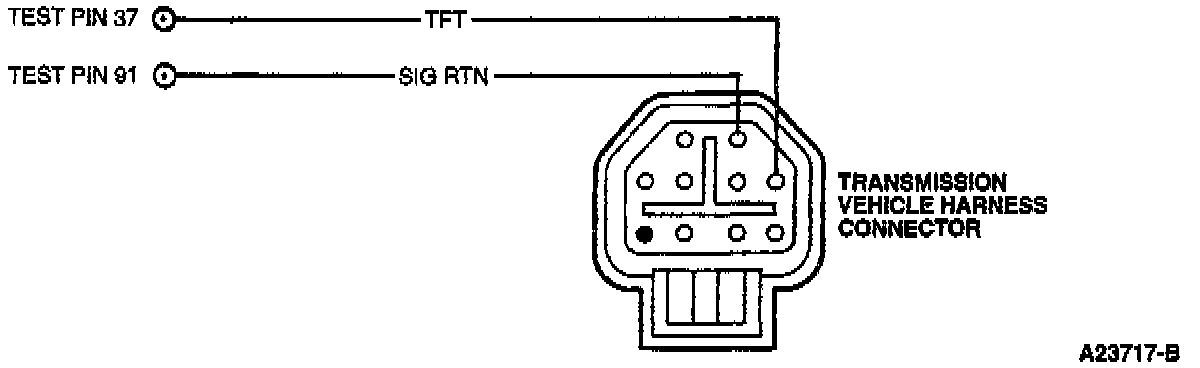

Pinpoint Test Schematics
Pinpoint Test Schematics
Mustang, Thunderbird/Cougar, Crown Victoria/Grand Marquis, Town Car, Mark VII (4R70W), 4.2L And 4.6L F-Series, 5.0L Bronco/E-/F-Series (4R70W):
