Tables and Charts

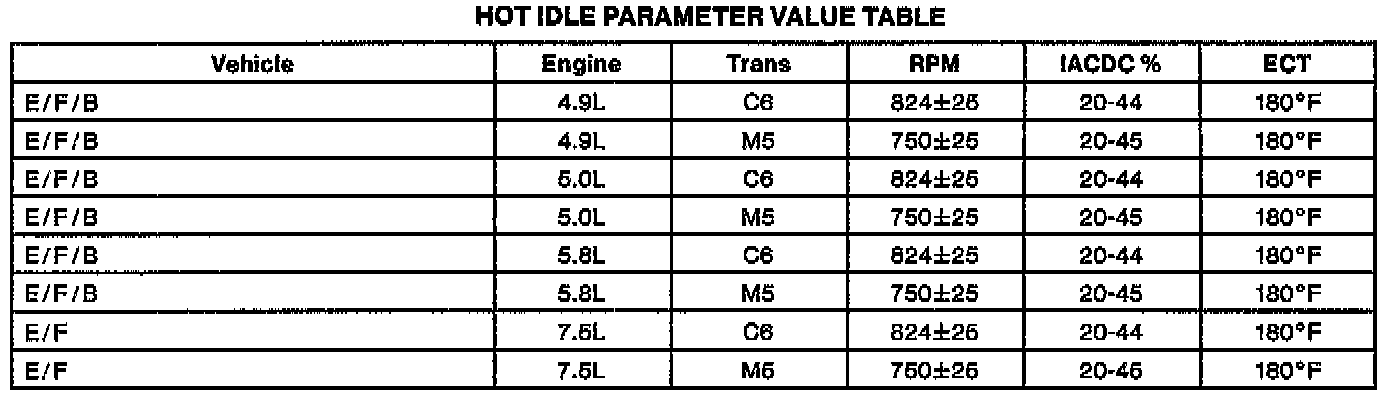

Hot Idle Parameter Value Table (Part 1 Of 2):

Part 2 Of 2:

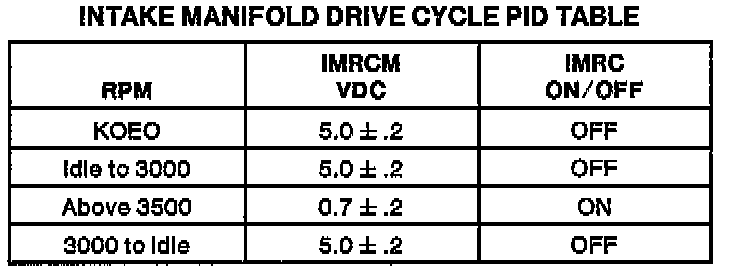

Intake Manifold Drive Cycle Parameter Identification (PID) Table:

NOTE: During some Intake Manifold Runner Control repair procedures, it may be necessary to perform a drive cycle for verification of the IMRC and PCM operation. The table lists RPM, IMRCM and IMRC PID values during acceleration and de-acceleration.
