Fuel Pressure Test Port: Locations

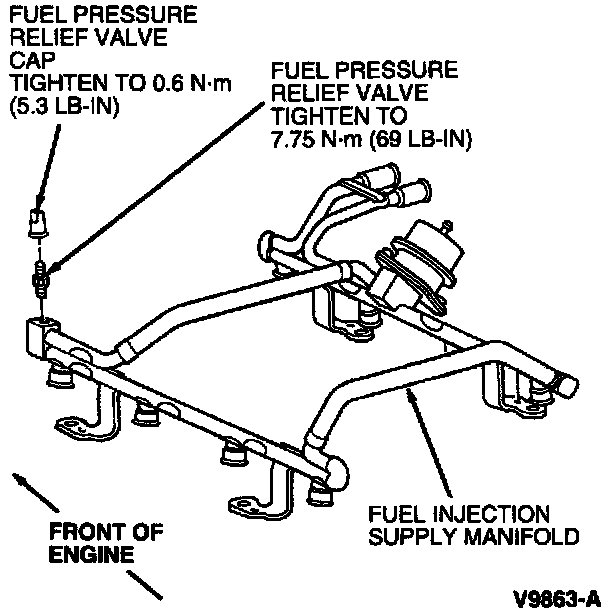

Fuel Injection Supply Manifold and Related Components:




Located on the fuel injection supply manifold.
