Home >> Mercury >> 1996 >> Cougar/XR7 V8-281 4.6L SOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> C: Does Not Disengage When Brakes Applied

C: Does Not Disengage When Brakes Applied

Test C: Speed Control Does Not Disegage When Brakes Are Applied.:

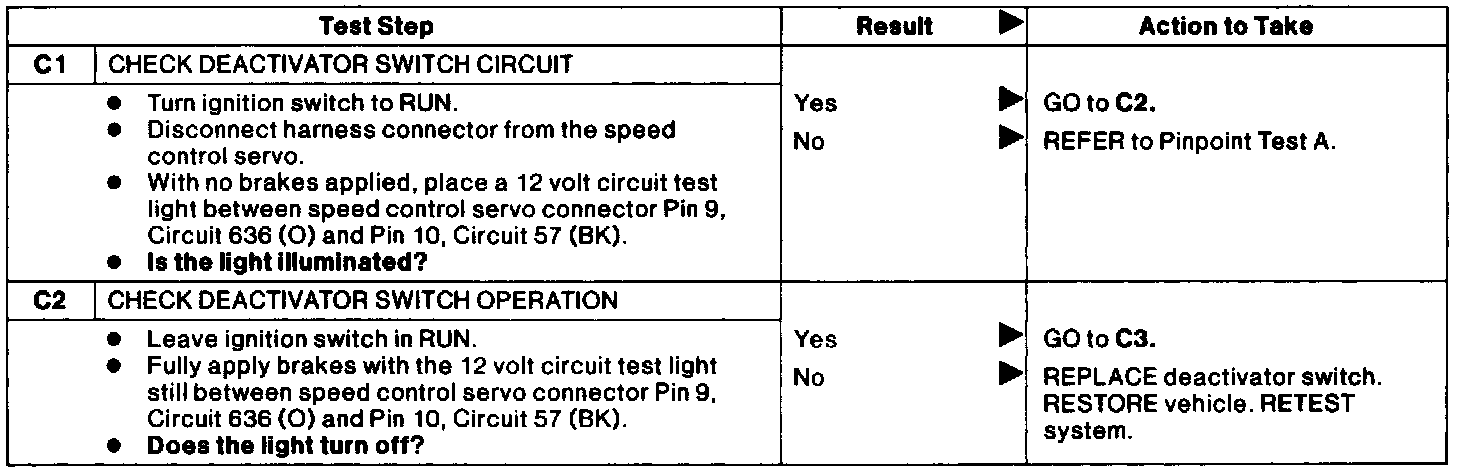

Test C1-C2

Test C: Speed Control Does Not Disegage When Brakes Are Applied.:

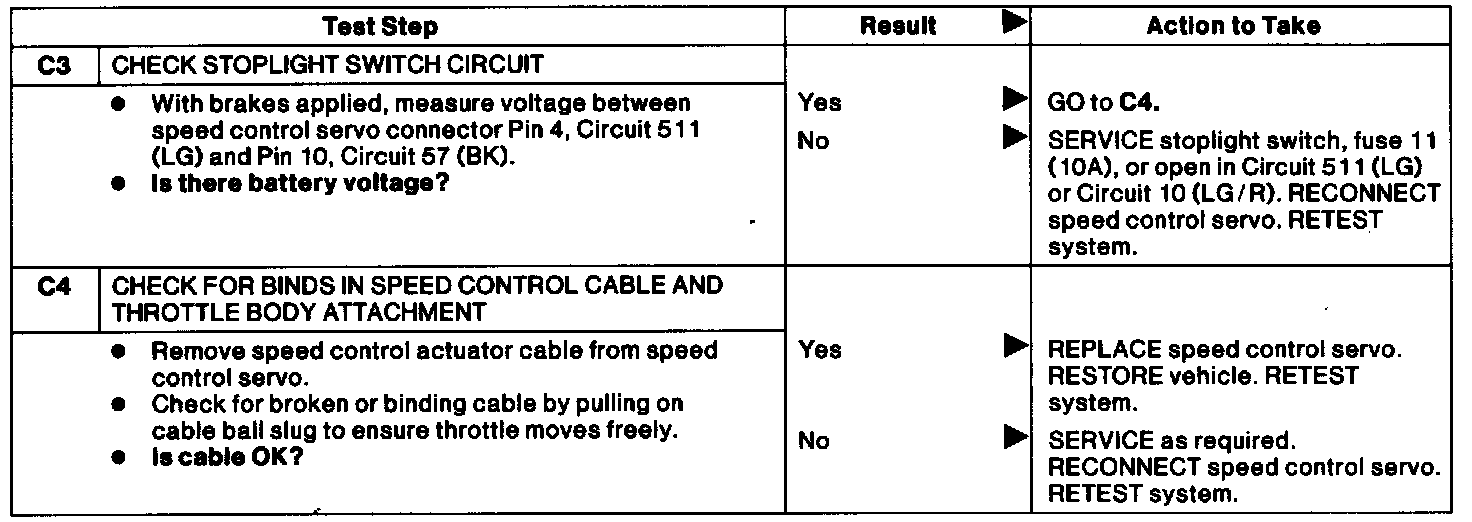

Test C3-C4
