G2 Check LH Rear ABS Sensor to Ground

- Disconnect LH rear wheel sensor plug.

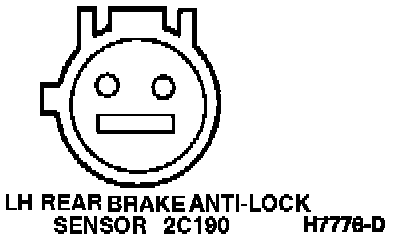

Sensor Plug Terminals:

- Check for continuity between each sensor pin (sensor side) and vehicle ground.

- Is continuity present?

YES -- Replace LH rear brake anti-lock sensor. Restore vehicle. Retest system.

NO -- Service circuit 518 (LG/R) or 519 (LG/PK) for short to ground. Restore vehicle. Retest system.
