63-10: Check Circuit 539 (PK/LB)

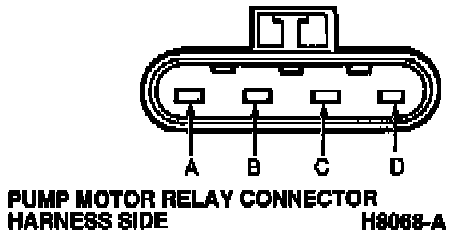

Pump Relay Connector:

- Check for continuity between wire harness to pump motor relay connector pin D and breakout box pin 15.

- Is continuity present?

YES -- Go to 63-11.

NO -- Service circuit 539 (PK/LB). Restore vehicle. Retest system.
