Installation

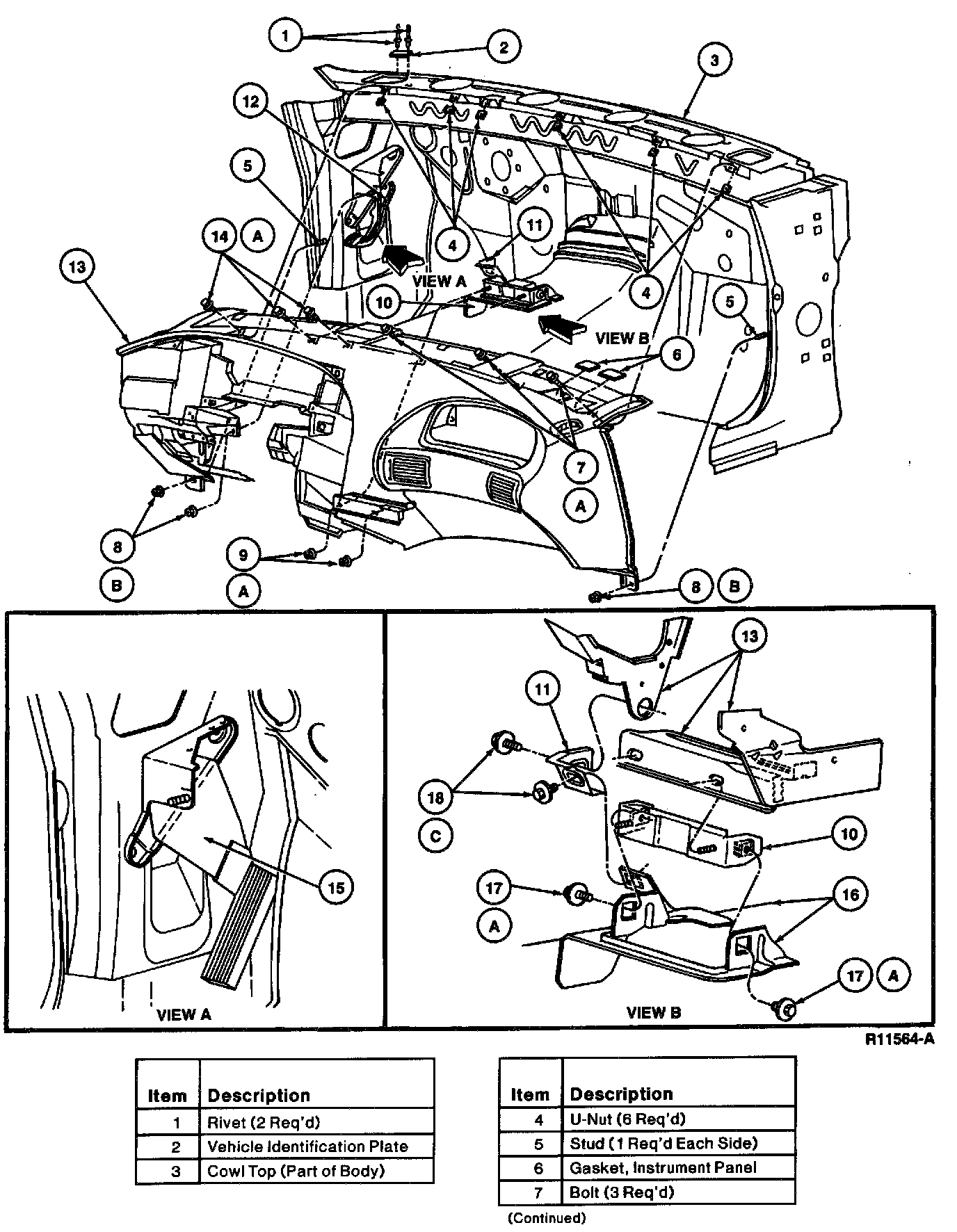

Part 1 Of 2:

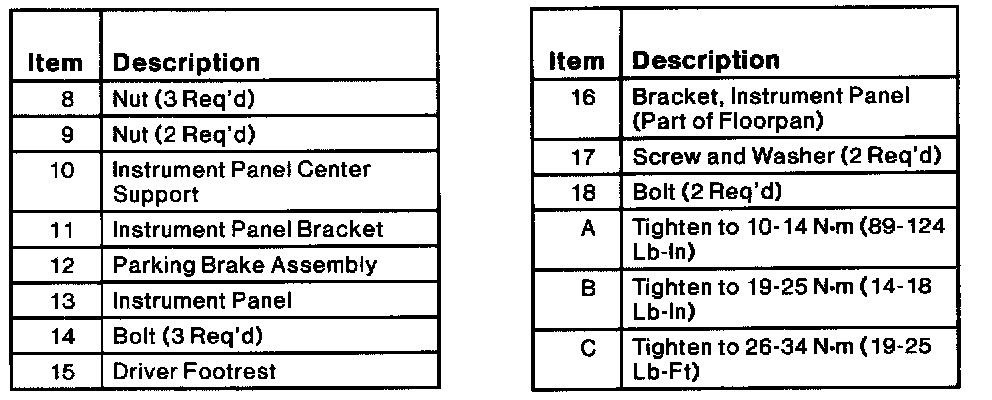

Part 2 Of 2:

INSTALLATION
1. With an assistant, place assembled instrument panel in vehicle. Connect any wiring connector disconnected before removal.
2. Install radio antenna lead in cable and install antenna wire grommet to sheet metal.
3. With an assistant, install instrument panel to position and install six bolts retaining top of instrument panel to dash panel. Tighten bolts to 10-14 Nm (89-124 lb-in).
4. Install nut retaining RH side of instrument panel to cowl side. Tighten nut to 19-25 Nm (14-18 lb-in).
5. Install two nuts and one bolt retaining instrument panel to instrument panel bracket. Tighten to 19-25 Nm (14-18 lb-ft).
6. Install two nuts retaining LH side of instrument panel to cowl side. Tighten to 19-25 Nm (14-18 lb-ft).
7. Install instrument panel upper finish panel by snapping cups into place.
8. Install console panel.





9. Connect main wiring to speed control amplifier.

Without Automatic Temperature Control:

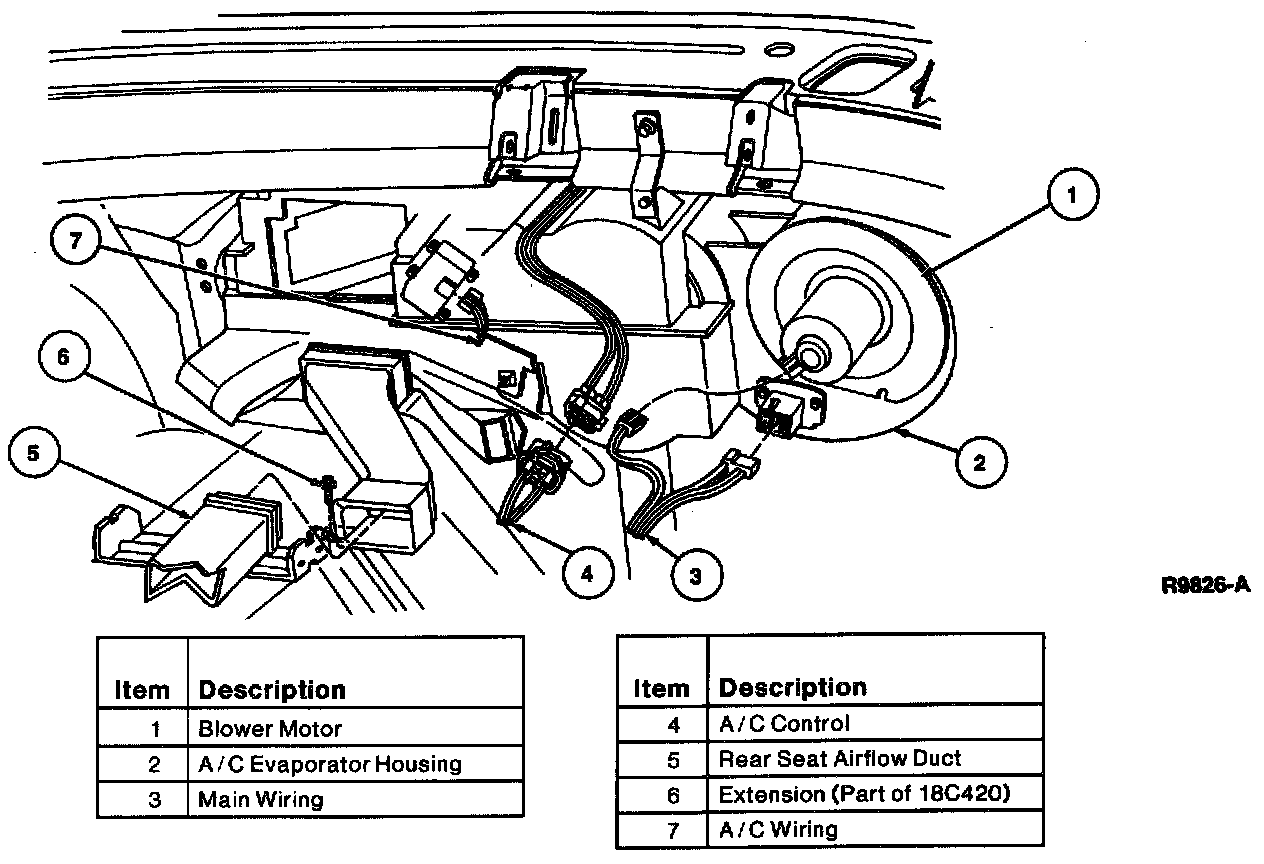

A/C Heater Assembly, With Automatic Temperature Control:

10. Working through glove compartment opening, connect wiring and vacuum hoses/connectors from the heater - A/C evaporator housing.
11. Install three screws retaining bottom of glove compartment door hinge and glove compartment to instrument panel.
12. Install glove compartment door check to RH side of glove compartment.

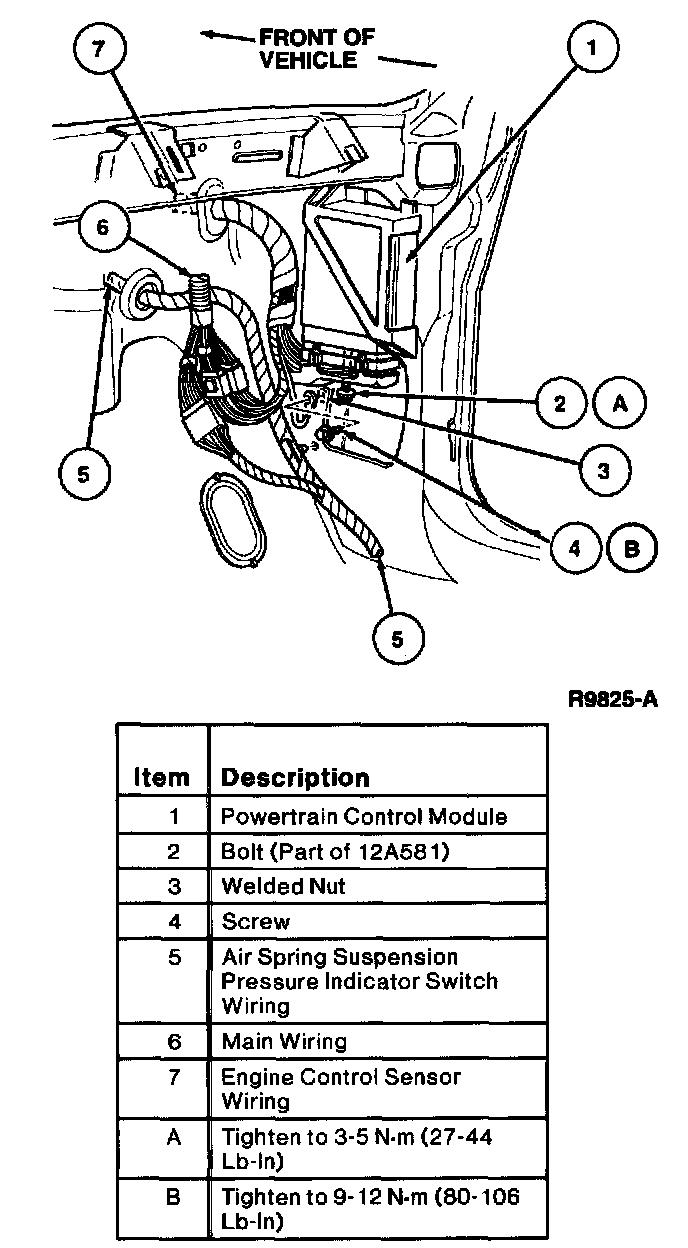

Wiring Connectors - LH Side:

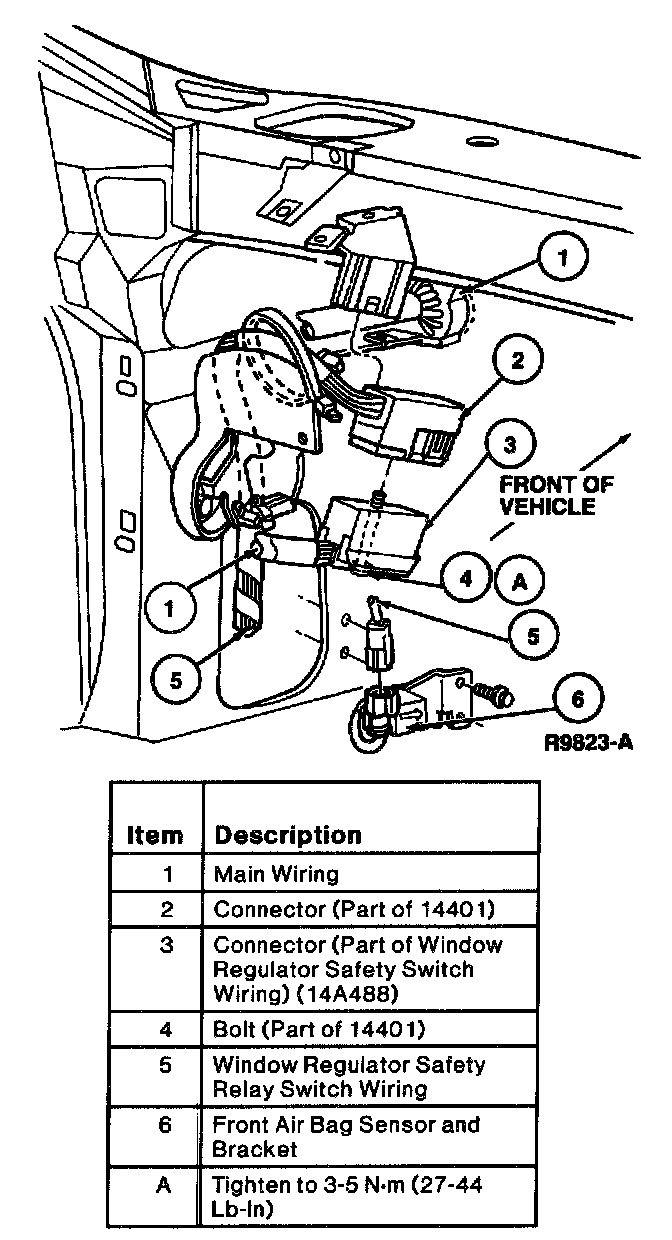

Wiring Connectors - RH Side:

13. Connect main wiring to powertrain control module and window regulator safety relay switch wiring.
14. Install floor carpet.

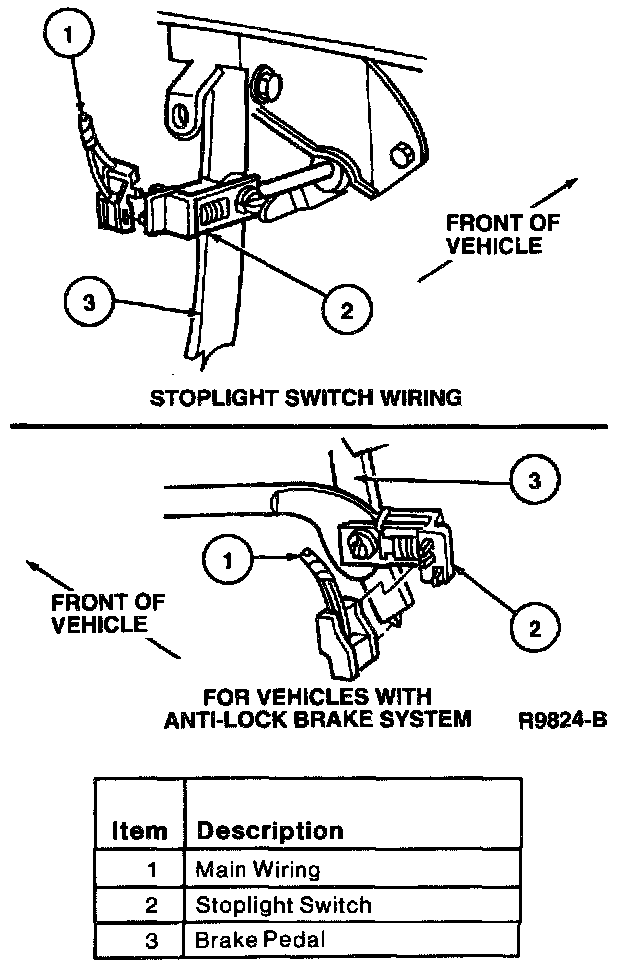

15. Connect electrical connector for stoplight switch.
16. Connect main wiring connector halves at LH side of steering column opening and tighten connector screw.
17. Install steering column tube to vehicle.
18. Install the ignition/shifter interlock cable retaining screws and cable end. Tighten screws to 1.4-2 Nm (12-17 lb-in).
19. Install four nuts retaining steering column tube to instrument panel reinforcement. Tighten nuts to 13-17 Nm (9-13 lb-ft).
20. Align steering column lower yoke to lower steering column shaft. Install pinch bolt and tighten to 41-56 Nm (31-41 lb-ft).





21. Connect electrical connectors to steering column tube. Tighten electrical connector hold-down screw for ignition switch to 0.8-1.3 Nm (7-12 lb-in).
22. Install one screw and A/C evaporator register duct under steering column tube.
23. Remove ignition switch lock cylinder.

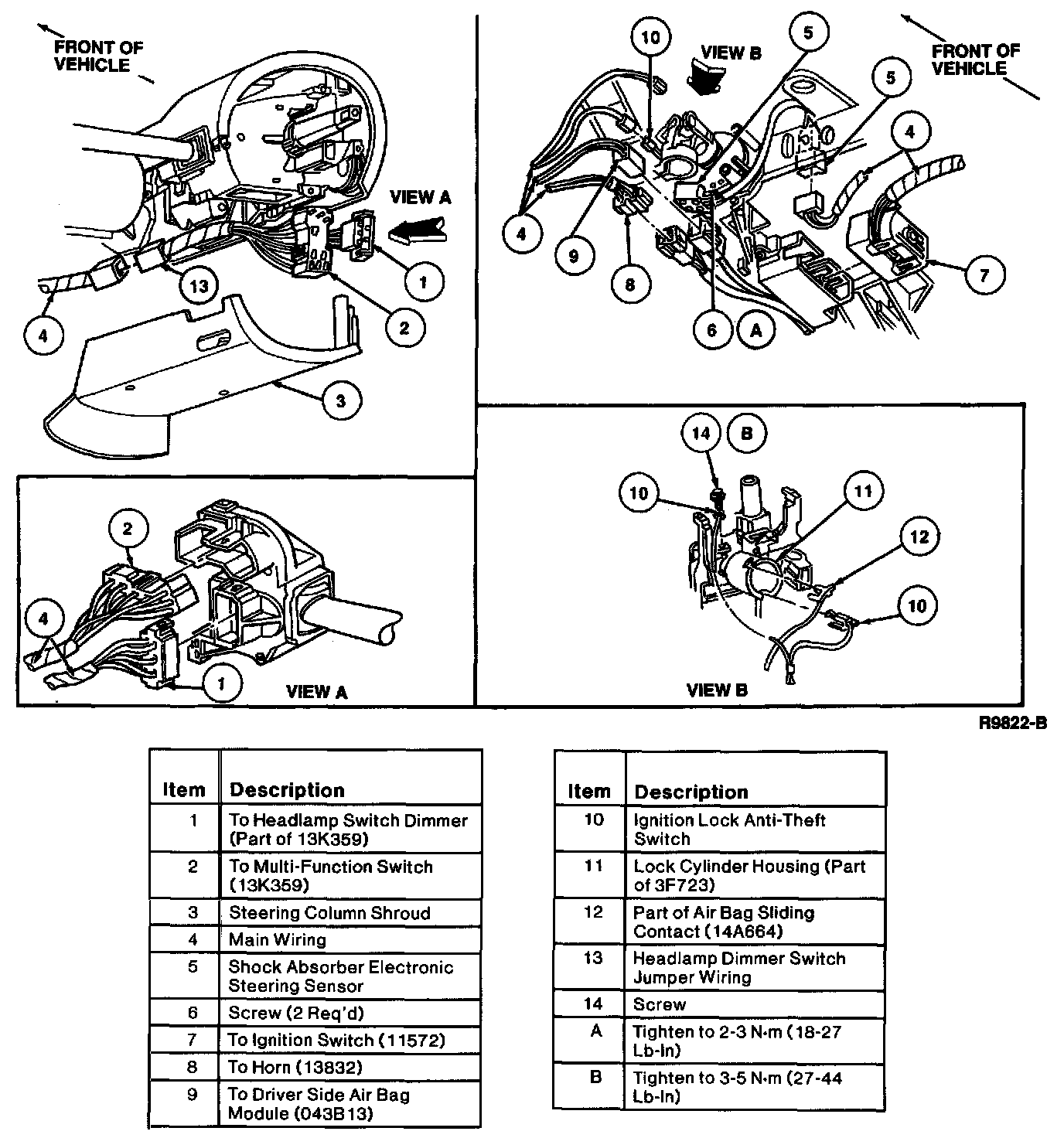

24. Install four screws and upper and lower steering column shrouds.
25. Install ignition switch.
26. Install instrument panel steering column cover by snapping three retaining clips into place. Install three screws along bottom of instrument panel steering column cover.

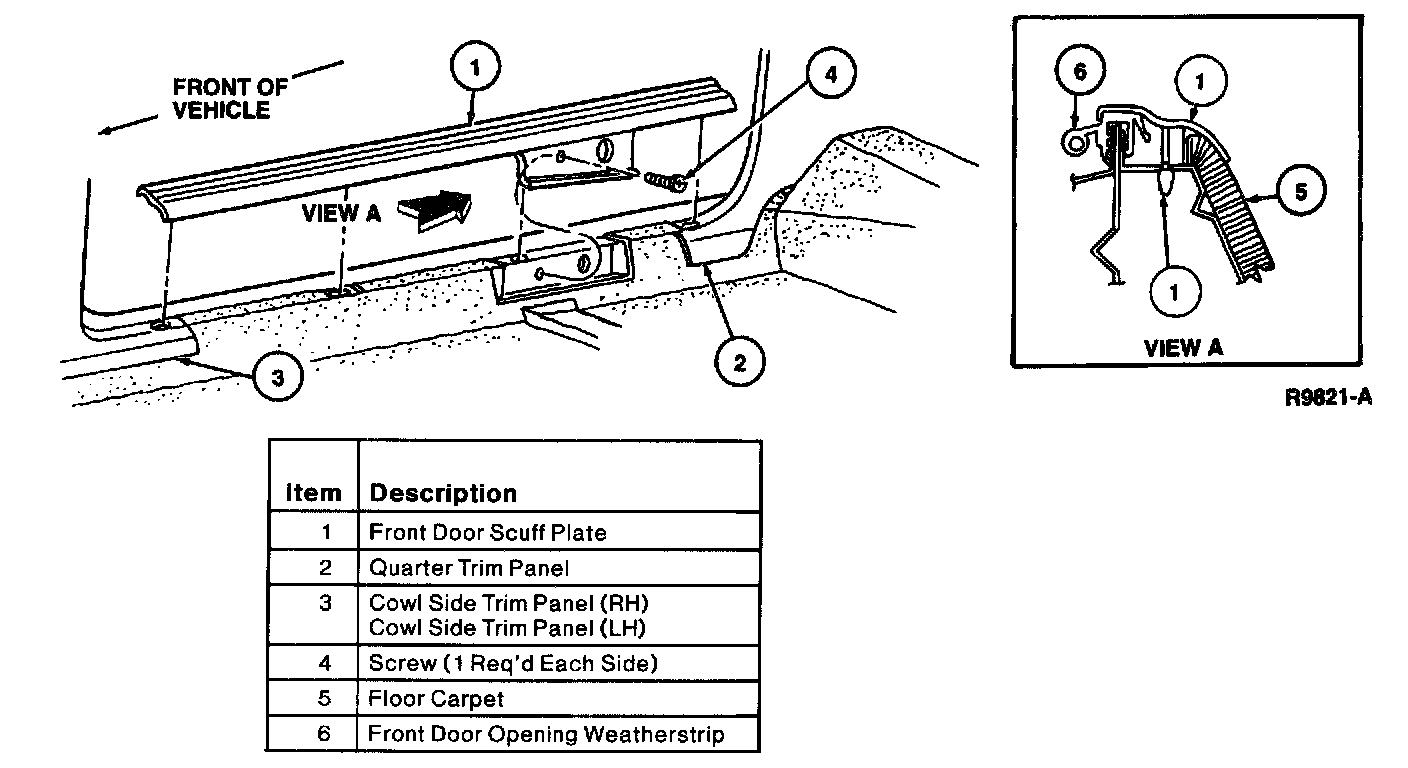

27. Install RH and LH cowl side trim panels.
28. Install front door opening weatherstrips to body flanges.
29. Install RH and LH front door scuff plates and tighten retaining screws.
30. Install RH and LH radio antenna stanchions.
31. Install radio antenna stanchion and connect radio antenna lead in cable to lead base of the radio antenna stanchion.
32. Install main wiring connectors in engine compartment at LH side of dash panel.
33. Connect battery cables.
34. Check all instrument panel components for proper operations.
