Home >> Mercury >> 1996 >> Cougar/XR7 V8-281 4.6L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Diagrams >> Electrical Diagrams

Electrical Diagrams

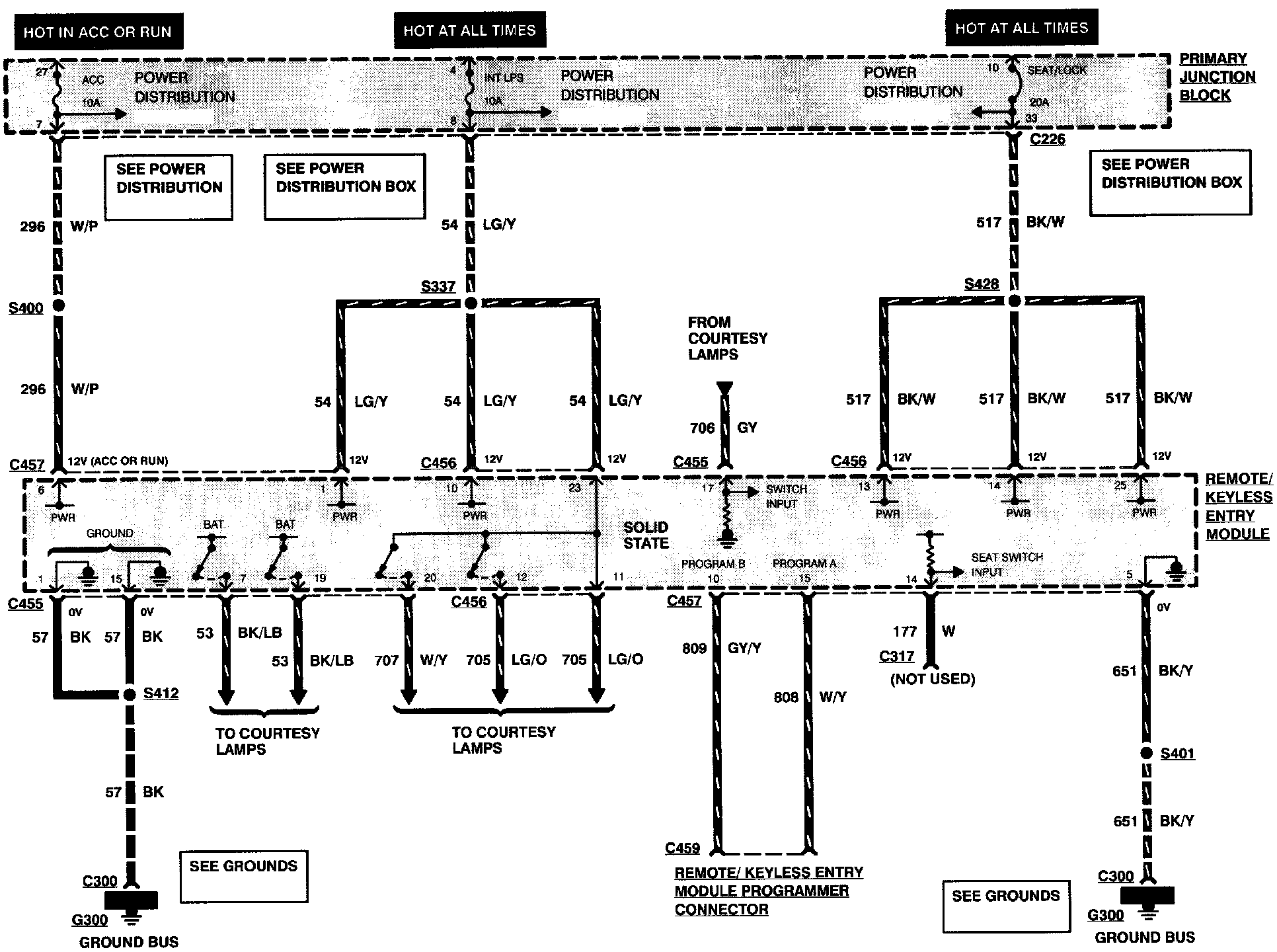

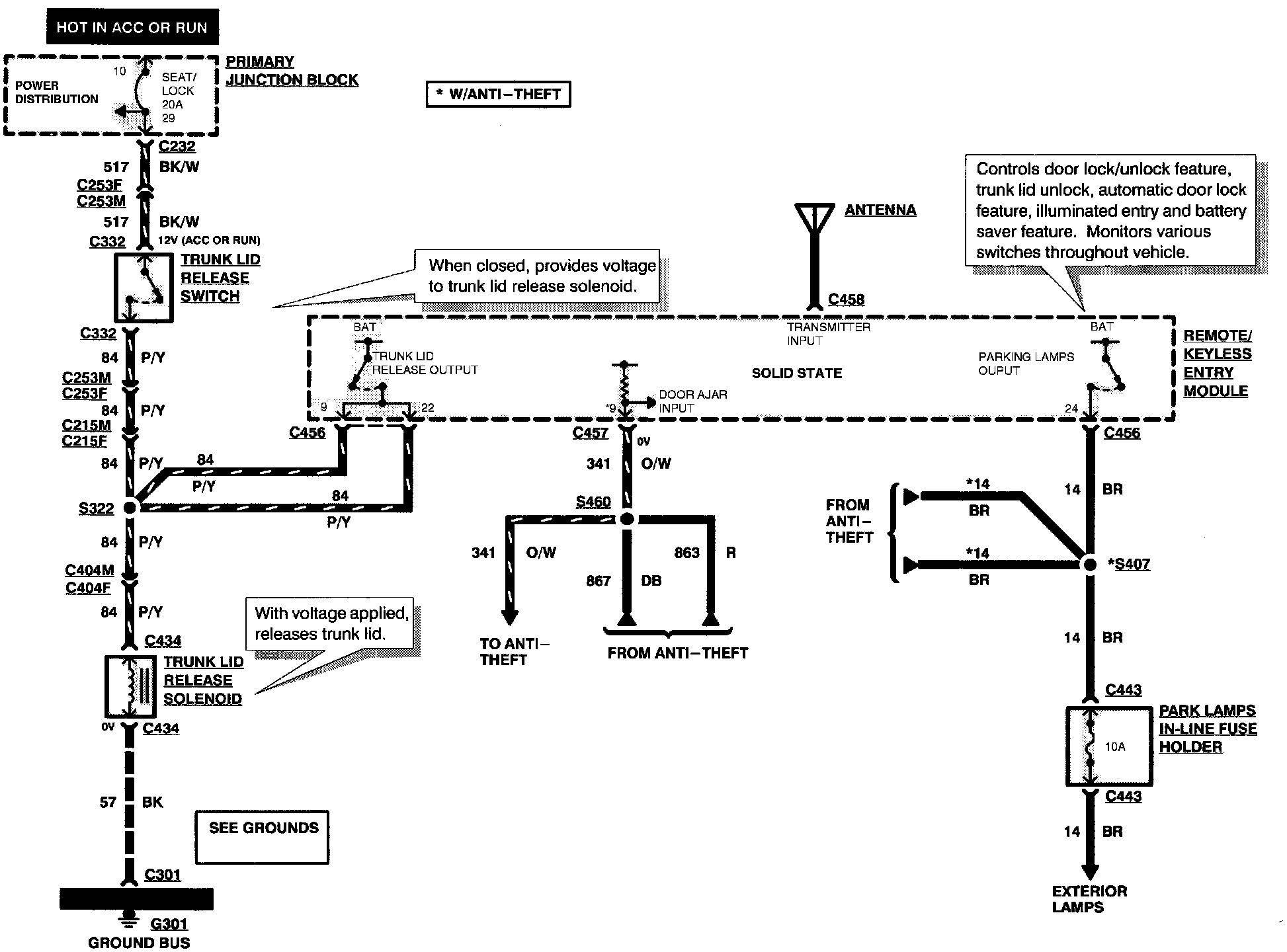

Remote/Keyless Entry (Part 1 Of 4):

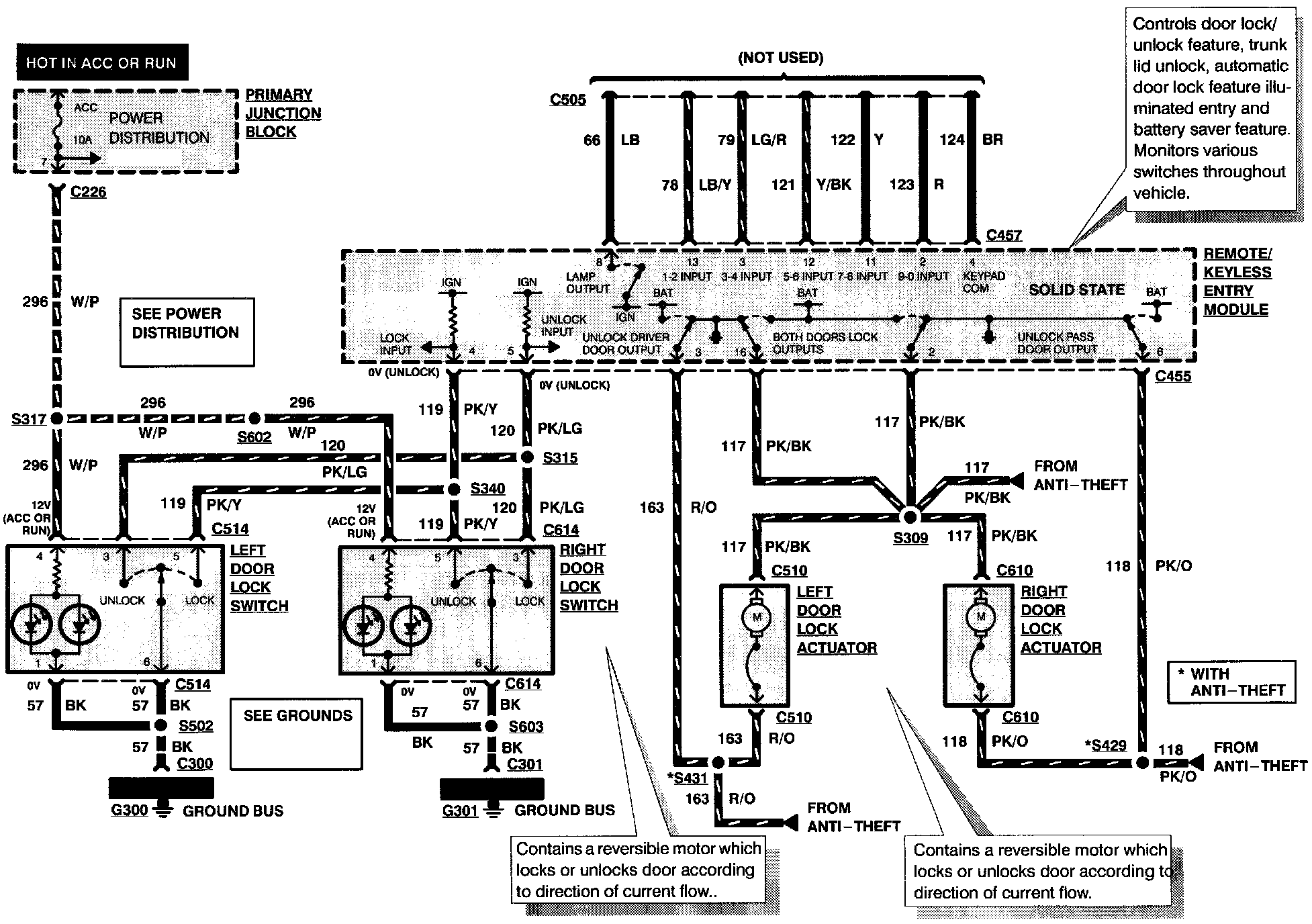

Remote/Keyless Entry (Part 2 Of 4):
