Home >> Mercury >> 1996 >> Cougar/XR7 V8-281 4.6L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Diagrams >> Connector Views >> Junction Block Connector C-6

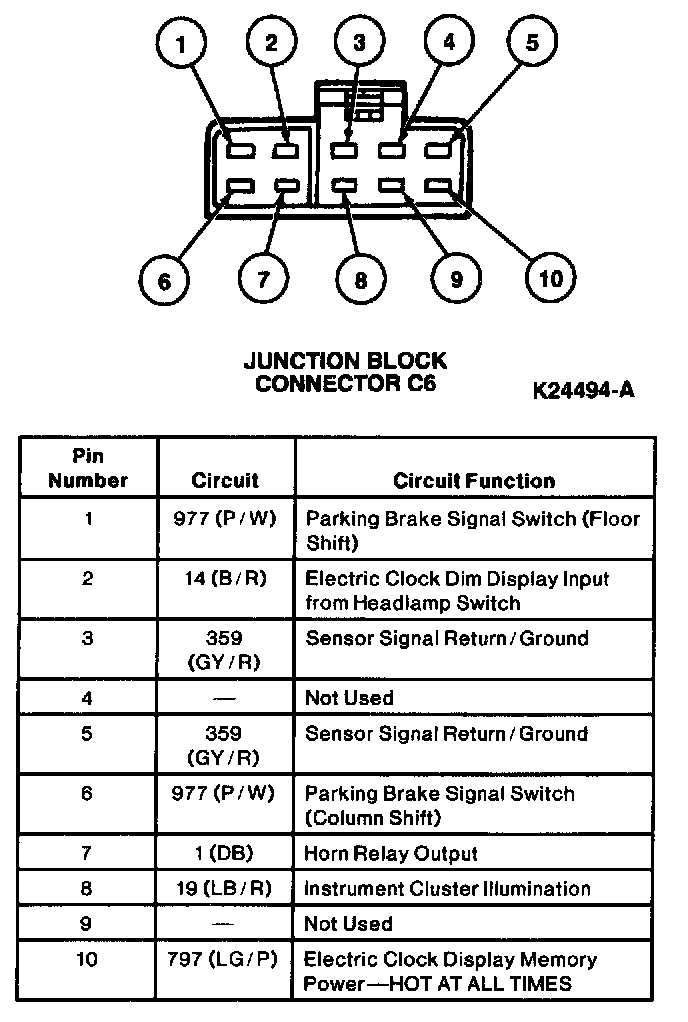

Junction Block Connector C-6
