A/T - 4R70W Unique Case With Low/Reverse Spacer

Article No.
96-7-11

03/25/96

^ TRANSMISSION - 4R7OW - SPECIAL SELECTION PROCEDURE FOR LOW SERVO PISTON - SERVICE TIP

^ TRANSMISSION - 4R7OW - UNIQUE CASE WITH LOW/REVERSE SPACER - SERVICE TIP

FORD:
1996 MUSTANG, THUNDERBIRD

LINCOLN-MERCURY:
1996 COUGAR

LIGHT TRUCK:
1996 EXPLORER, F-150

Due to timing constraints, this TSB article was not published in TSB 96-5. Refer to this TSB article for all 4R70W transmissions having "REFER TO TSB 96-5" yellow stickers on the transmission pan.








ISSUE:

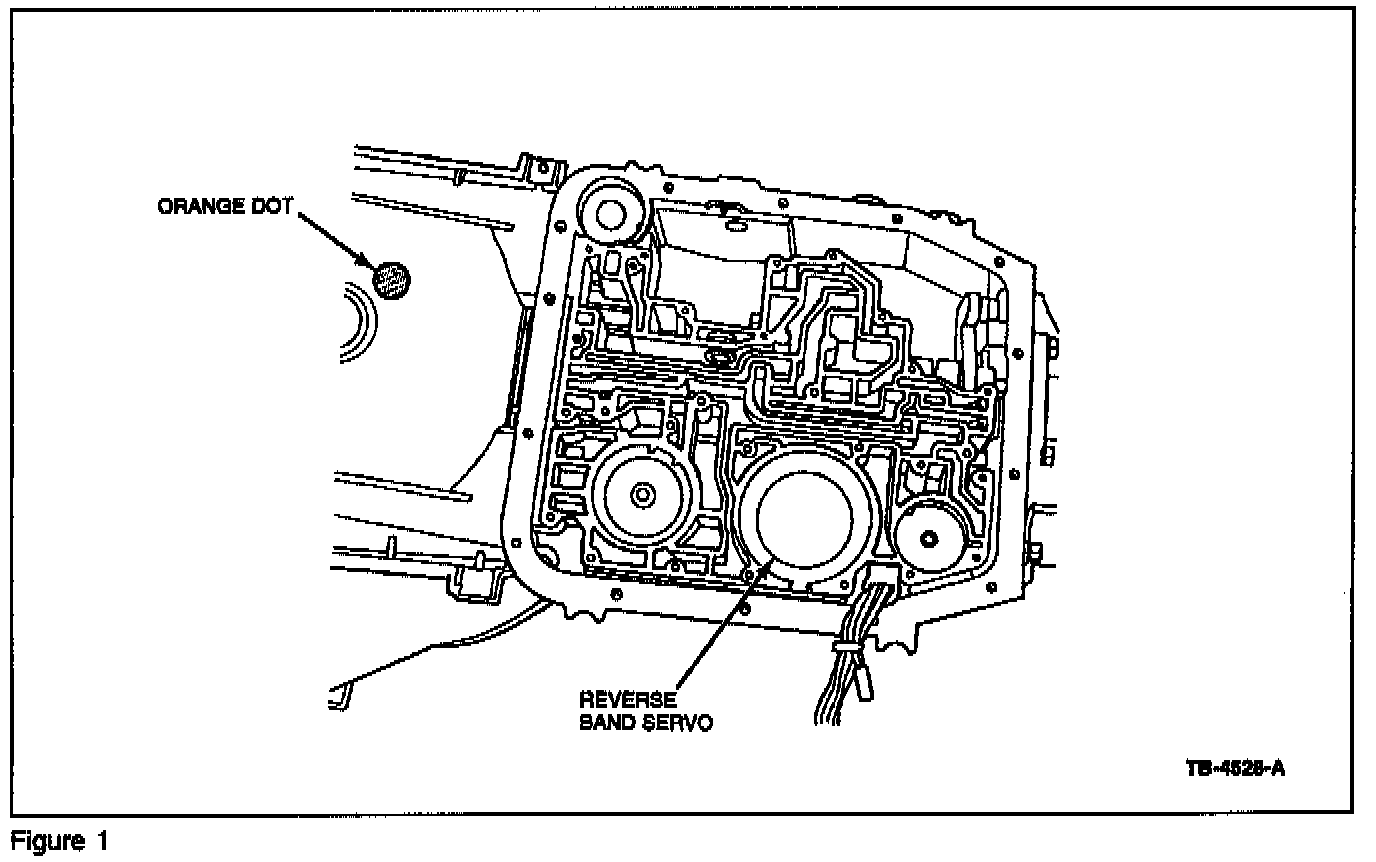

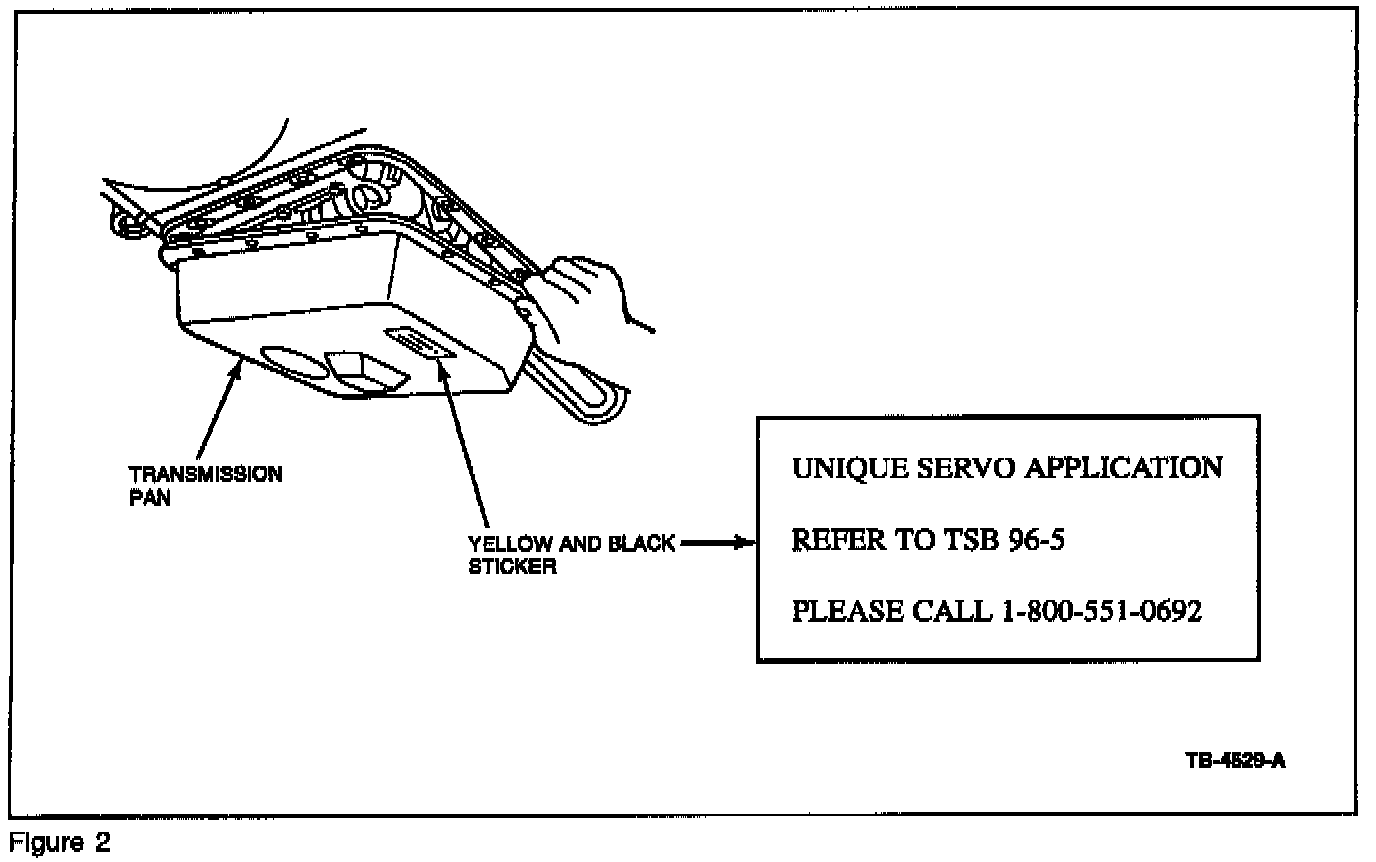

Some 4R70W transmissions were built with a unique case and require a spacer to be installed between the low/reverse servo cover and retaining ring. The subject transmissions will have an orange dot on the bottom of the converter housing (Figure 1) and a yellow sticker on the transmission pan (Figure 2).








ACTION:
When servicing one of these unique transmissions, refer to the following Service Procedure for special service details. Refer to the Transmission Application Chart to determine if the transmission is unique by referencing the transmission serial numbers located on the bottom of the transmission (Figure 4).

SERVICE PROCEDURE

Refer to Section 07-01 of the appropriate Service Manual and the following list to determine the correct piston to use.





NOTE:

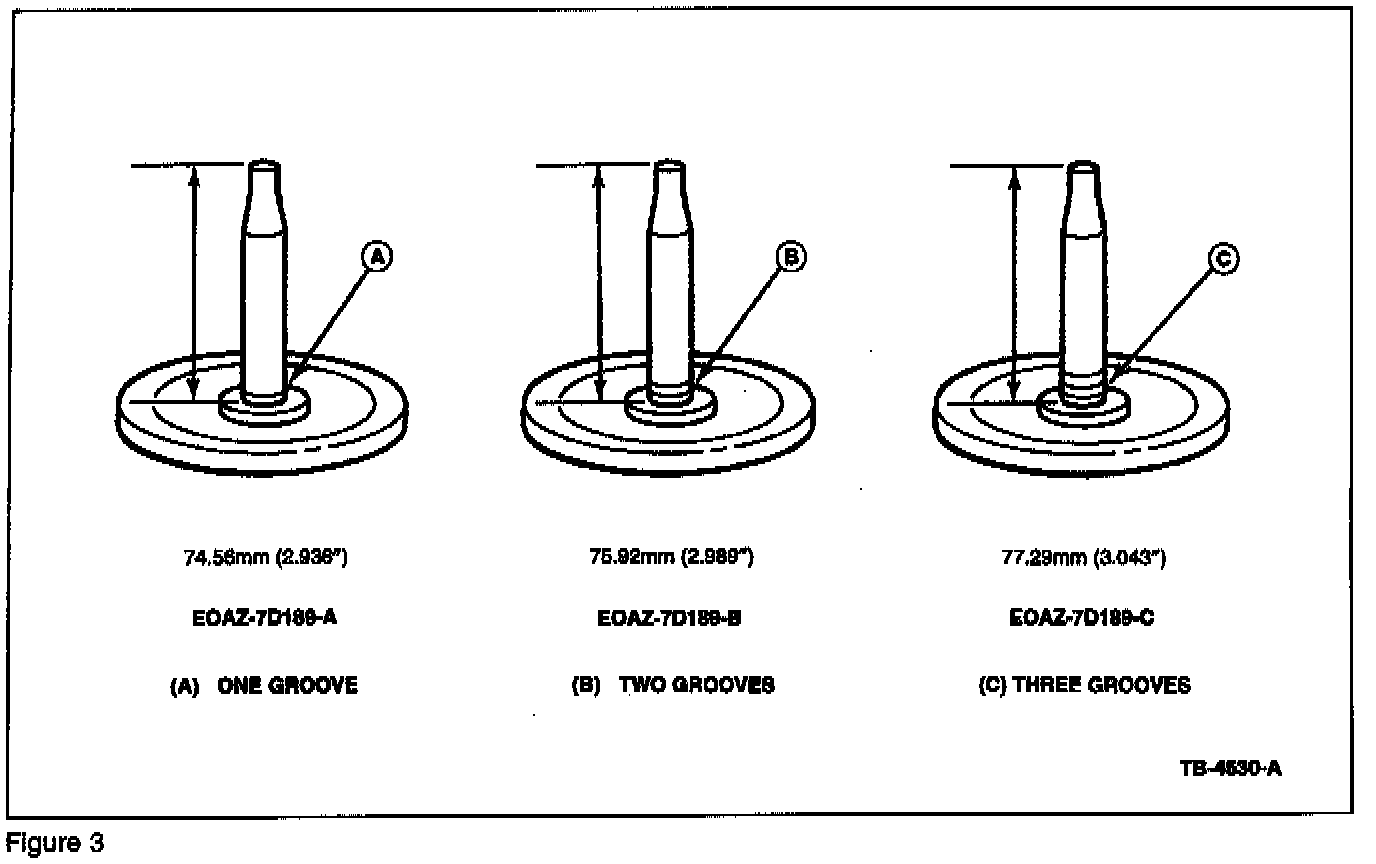

WHEN REPLACING A PISTON, BEGIN WITH A # 1 PISTON (EOAZ-7D189-A). THIS PISTON WITH A SPACER (F6TZ-7D483-AA) REPLACES THE # 2 PISTON ASSEMBLY (EOAZ-7D189-B). REFER TO FIGURE 3.

^ If the procedure calls for a # 3 piston (EOAZ-7D189-C) to be used, install a # 2 piston (EOAZ-7D189-B) (Figure 3).

^ If the procedure calls for a # 2 piston (EOAZ-7D189-B) to be used, install a # 1 piston (EOAZ-7D189-A) (Figure 3).

PART NUMBER PART NAME

EOAZ-7D189-A Piston
EOAZ-7D189-B Piston
EOAZ-7D189-C Piston
F6TZ-7D483-AA Spacer

OTHER APPLICABLE ARTICLES: NONE

WARRANTY STATUS: INFORMATION ONLY

OASIS CODES: 504000
