Rear

REMOVAL
1. Remove rear seat cushion.
2. Remove rear seat back.

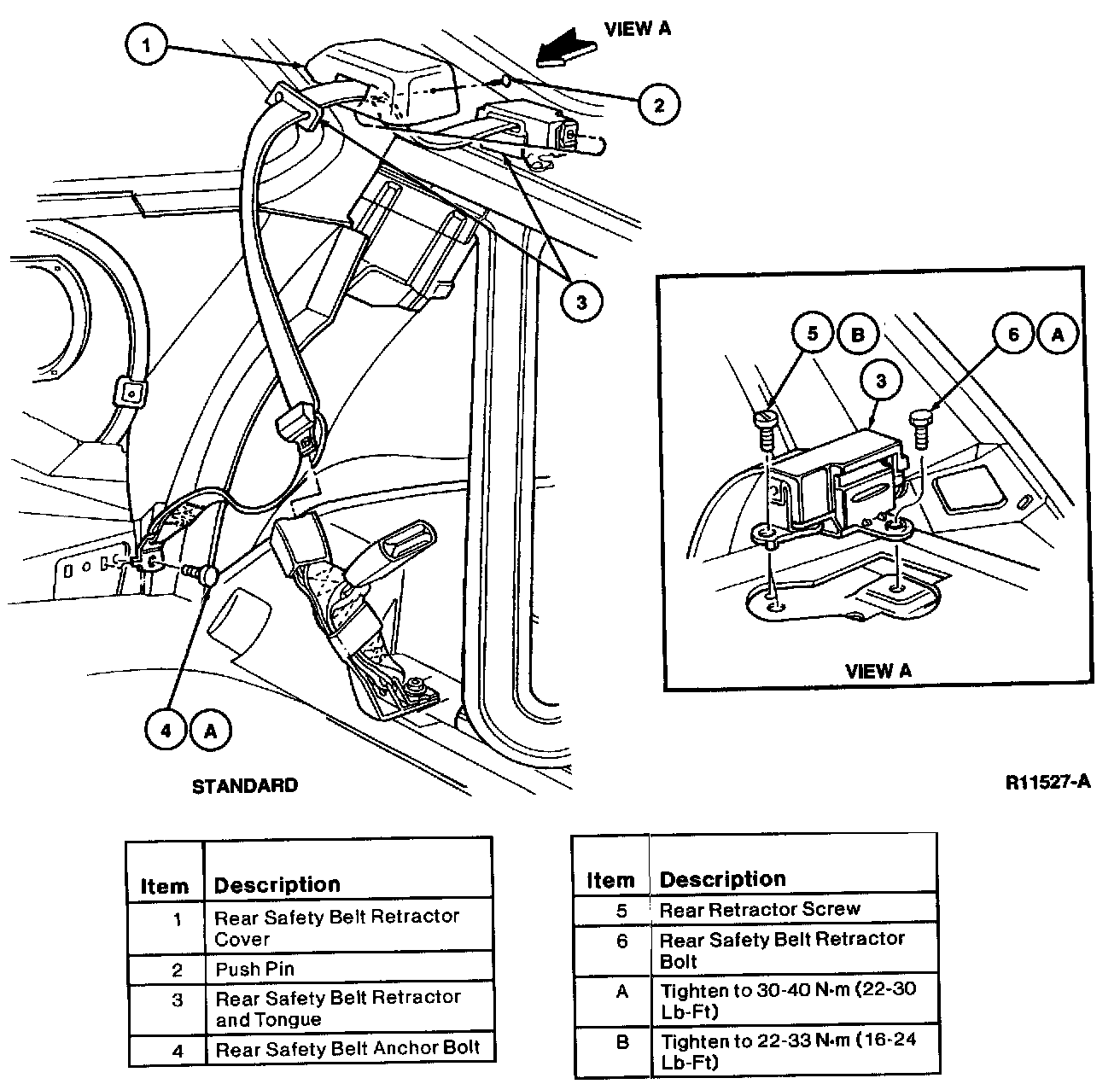

3. Remove rear safety belt anchor bolt.
4. Remove quarter trim panel.
5. Remove push pin retaining rear safety belt retractor cover. Remove bezel and rear safety belt retractor cover.
6. Remove rear safety belt retractor anchor bolt and rear retractor screw.
7. Remove anchor end of rear safety belt through the opening in the quarter trim panel.
8. Remove outboard rear safety belt retractor and tongue from the vehicle.

INSTALLATION
1. Make sure safety belt webbing is not twisted. If it is, remove the twist.
2. Position rear safety belt retractor and tongue in vehicle.
3. Insert anchor end of rear safety belt through the opening in the quarter trim panel.
4. Install rear safety belt retractor anchor bolt and rear retractor screw. Tighten rear safety belt retractor anchor bolt to 30-40 Nm (22-30 lb-ft). Tighten rear retractor screw to 22-33 Nm (16-24 lb-ft).
5. Install bezel and rear safety belt retractor cover. Install push pin retaining rear safety belt retractor cover.
6. Install quarter trim panel.
7. Install rear safety belt anchor bolt. Tighten to 30-40 Nm (22-30 lb-ft).
8. Install rear seat back.
9. Install rear seat cushion.
10. Check restraint system for proper operation and perform Functional Test Procedure. Component Tests and General Diagnostics
