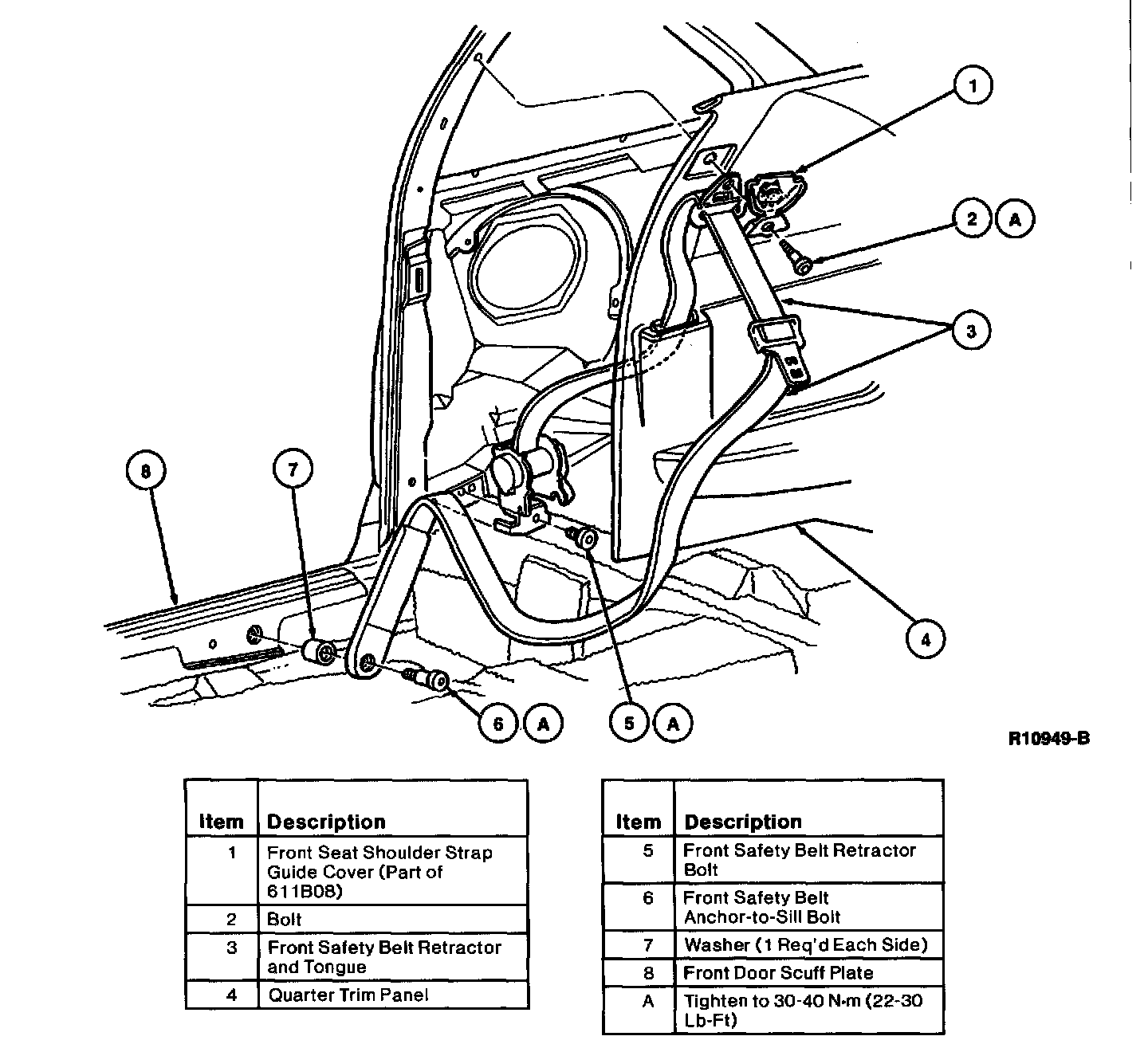

Front Safety Belt

REMOVAL

NOTE: Seat Belt Bolt Bit T77L-2100-A (No.50 Torx[r]) should be used for removal and installation of all safety belt assemblies.

1. Remove front seat shoulder strap guide cover.
2. Insert Seat Belt Bolt Bit T77L-2100-A (No.50 Torx[r]) and remove front safety belt guide anchor bolt.
3. Remove safety belt anchor-to-sill bolt and rubber washer.
4. Snap out front shoulder belt bezel from panel. Leave front shoulder belt bezel on front safety belt retractor and tongue assembly.
5. Remove panel.
6. Remove safety belt anchor and bezel through slot in panel.
7. Remove safety belt retractor bolt.
8. Remove outboard front safety belt retractor and tongue from vehicle.

INSTALLATION
1. Make sure safety belt webbing is not twisted. If it is, remove the twist.
2. Position front safety belt retractor and tongue in vehicle and install safety belt retractor bolt. Tighten safety belt retractor bolt to 30-40 Nm (22-30 lb-ft).
3. Insert safety belt anchor and bezel through slot in panel.
4. Install panel.
5. Snap front shoulder belt bezel into panel.
6. Install safety belt rubber washer and anchor-to-sill bolt. Tighten bolt to 30-40 Nm (22-30 lb-ft).
7. Install front safety belt guide anchor bolt with Seat Belt Bolt Bit T77L-2100-A (No.50 Torx[r]). Tighten bolt to 30-40 Nm (22-30 lb-ft).
8. Install front seat shoulder strap guide cover.
9. Check the restraint system for proper operation and perform Functional Test Procedure. Component Tests and General Diagnostics
