Rear Seats

REMOVAL
1. Remove rear seat cushion.
2. Remove rear seat back.
3. Remove rear safety belt and buckle anchor nuts.
4. Remove RH rear safety belt and buckle or LH rear safety belt and buckle from vehicle.

INSTALLATION

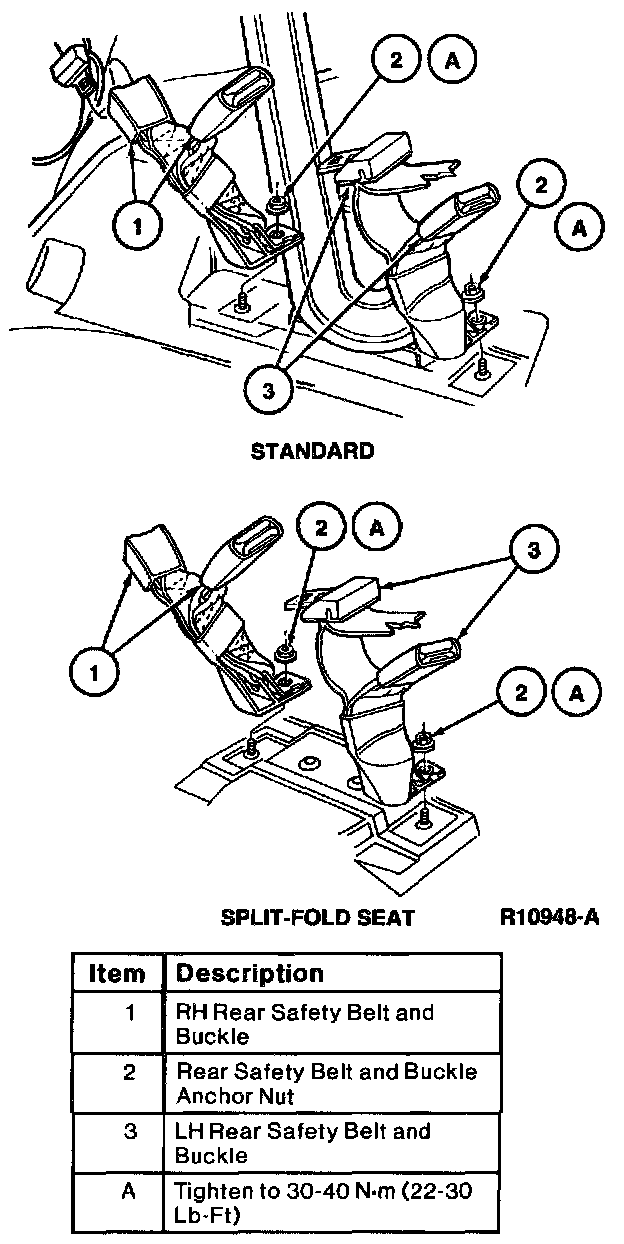

1. Position RH rear safety belt and buckle and LH rear safety belt and buckle assemblies in vehicle as shown.
2. Install rear safety belt and buckle anchor nuts. Tighten to 30-40 Nm (22-30 lb-ft).
3. Install rear seat back.
4. Install rear seat cushion.
5. Check the restraint system for proper operation and perform Functional Test Procedure. Component Tests and General Diagnostics
