Front Safety Belt

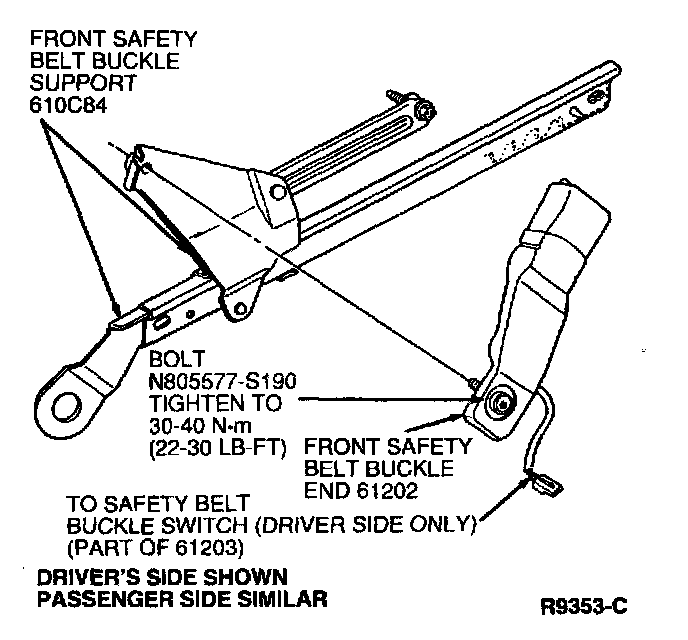

REMOVAL
1. Remove front seat and track assembly.
2. Remove front safety belt buckle end anchor bolt from front safety belt buckle support.
3. Remove front safety belt buckle end assembly. On LH side of vehicle, disconnect safety belt buckle switch wiring from body main wiring.

INSTALLATION
1. Position front safety belt buckle end assembly to front safety belt buckle support. On LH side of vehicle, connect safety belt buckle switch wire to body main wiring.
2. Install front safety belt buckle end anchor bolt to front safety belt buckle support. Tighten to 30-40 Nm (22-30 lb-ft).
3. Install seat and track assembly.
4. Check restraint system for proper operation and perform Functional Test Procedure. Component Tests and General Diagnostics
