Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Accelerator Pedal
>>
Testing and Inspection
>>
Pinpoint Tests
>>
A1, A2
A1, A2

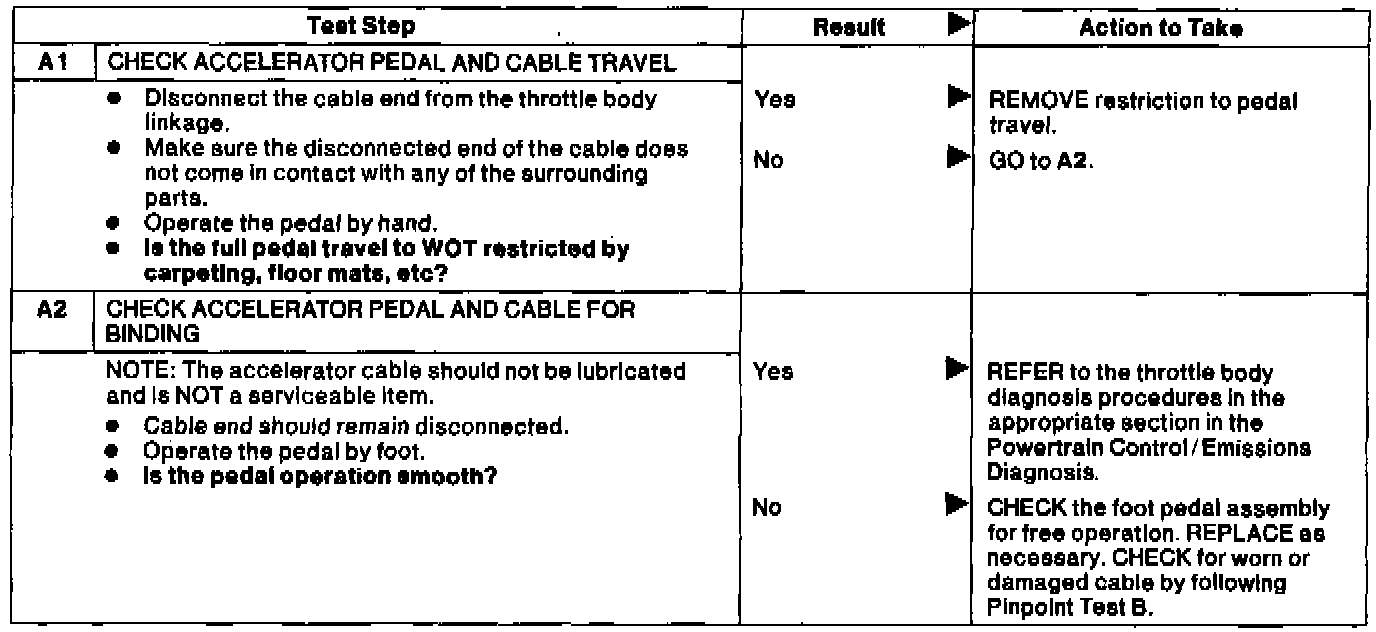

Pinpoint Test A: Accelerator Pedal Is Hard To Push Down Or Has A Rough, Raspy Or Sticky Feel:
