Evaporative Emissions Hose: Service and Repair

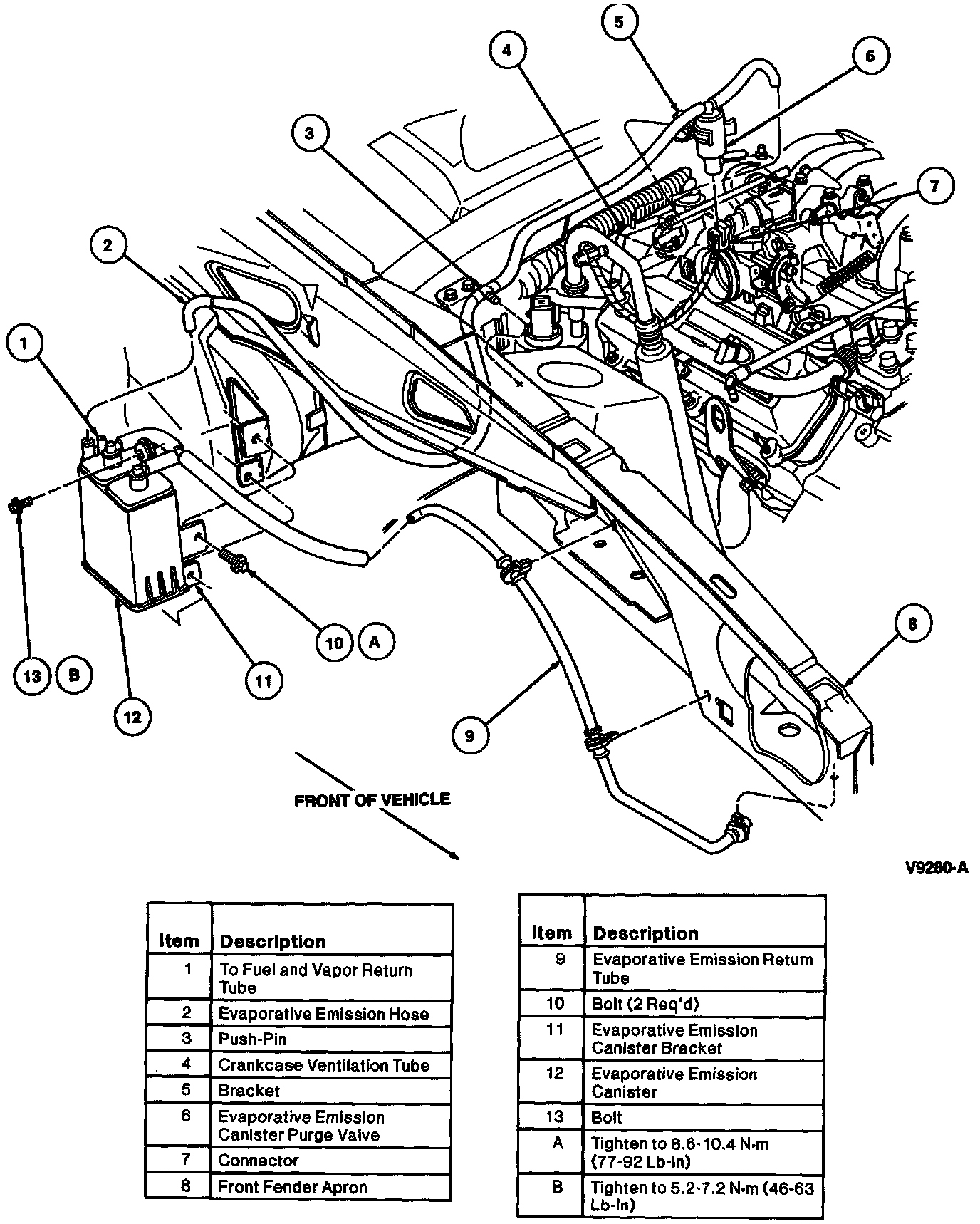

Canister Venting System:

Removal and Installation
1. Raise vehicle on hoist.

2. Remove evaporative emission canister as outlined. Remove evaporative emission canister bracket (if required).

3. Lower vehicle.

4. Disconnect evaporative emission canister purge valve from engine control sensor wiring at connector.

5. Disconnect evaporative emission hose from crankcase ventilation tube connector. Remove evaporative emission hose retaining push pin from front fender apron. Disconnect retainer bracket on evaporative emission canister purge valve from engine control sensor wiring and remove evaporative emission hose and evaporative emission canister purge valve as an assembly.

7. If required, remove evaporative emission canister purge valve from evaporative emission hose.

8. To install, reverse removal procedure.
