Evaporative Emission Control Canister: Service and Repair

Evaporative Emission System:

Removal and Installation

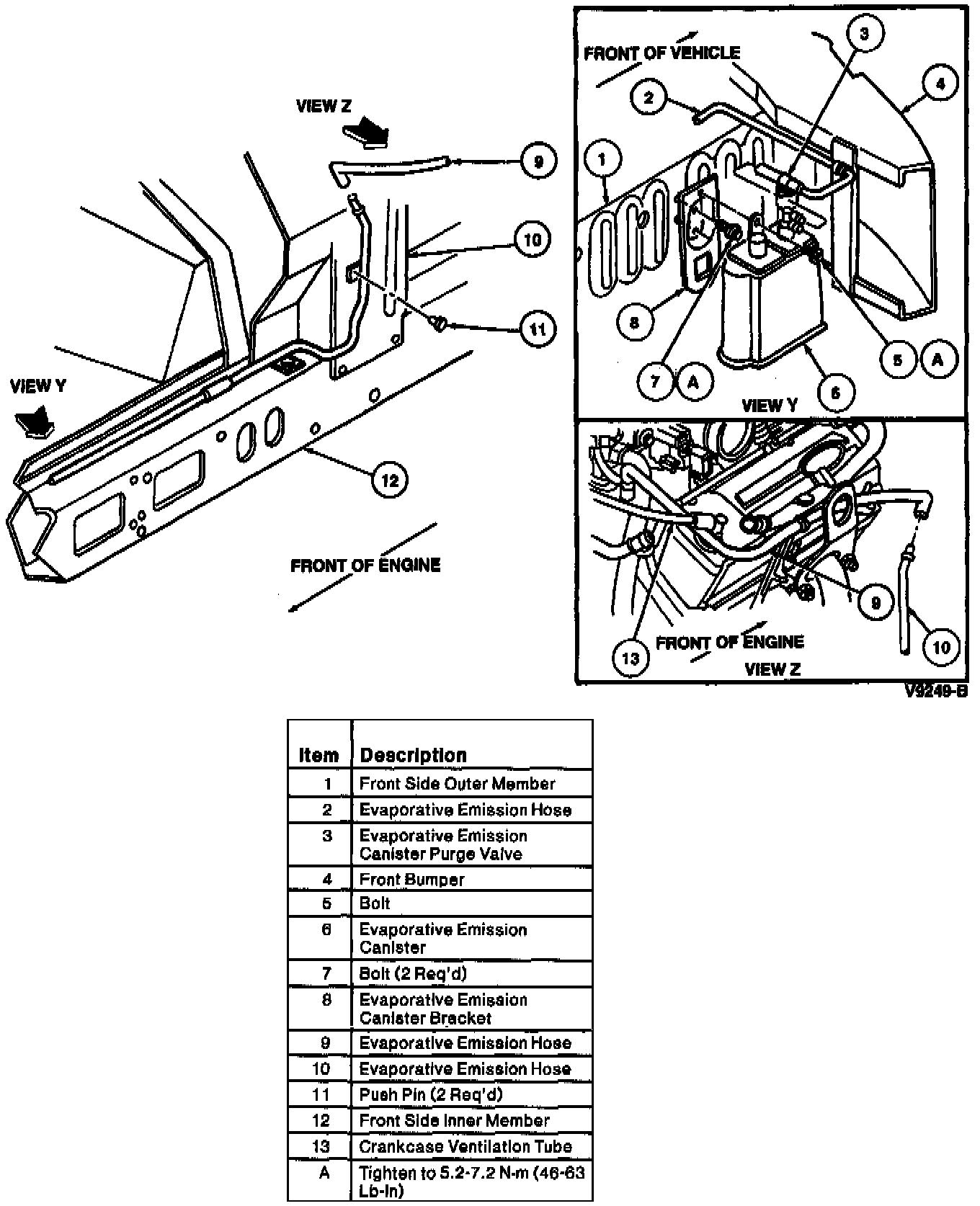

1. Raise vehicle on hoist.

2. Disconnect evaporative emission hose push pin or pins (depending on application) from front fender apron.

3. Remove evaporative emission canister to front fender apron retaining bolts and partially lower evaporative emission canister and evaporative emission canister bracket.

4. Disconnect evaporative emission hose and fuel and vapor return tube from evaporative emission canister, and also disconnect evaporative emission return tube from evaporative emission canister.

5. Remove evaporative emission canister to evaporative emission canister bracket retaining bolt and remove evaporative emission canister from evaporative emission canister bracket.

6. To install, reverse removal procedure.

7. Tighten canister-to-canister bracket bolt to 5.2-7.2 Nm (46-63 lb.in)
