Center Mounted Brake Lamp: Service and Repair

REMOVAL

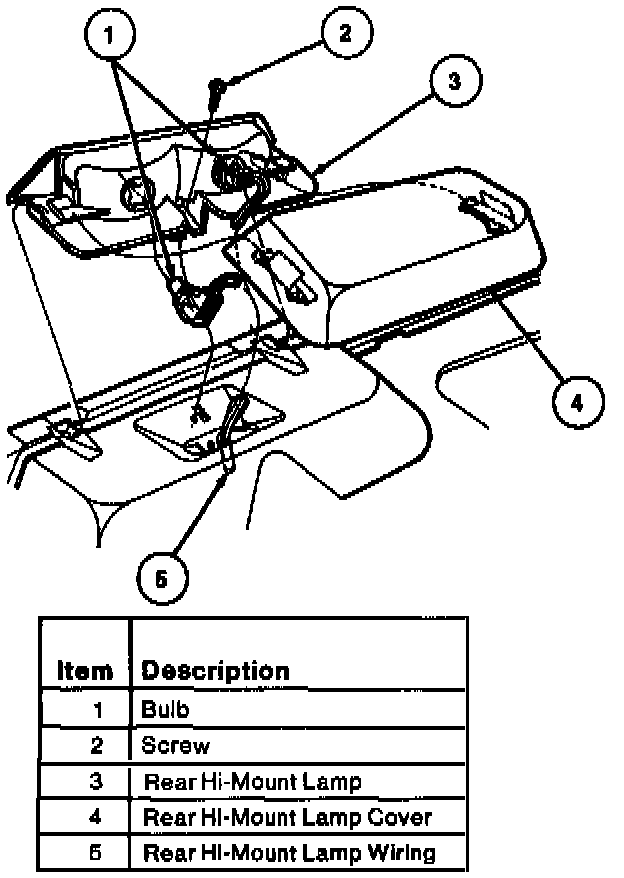

1. Slide rear hi-mount lamp cover away from back window glass and remove rear hi-mount lamp cover.
2. Remove one screw retaining rear hi-mount lamp.
3. Lift edge of rear hi-mount lamp and pull away from back window glass.
4. Rotate and remove two miniature bulb (13465) from rear hi-mount lamp.
5. Install miniature bulbs into rear hi-mount lamp and rotate to lock.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Slide rear hi-mount lamp cover onto rear hi-mount lamp to engage retainers. Tighten screws.
