Home >> Mercury >> 1996 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Volt Meter Gauge >> Testing and Inspection

Volt Meter Gauge: Testing and Inspection

Test E: Voltmeter Reads Inaccurately.:

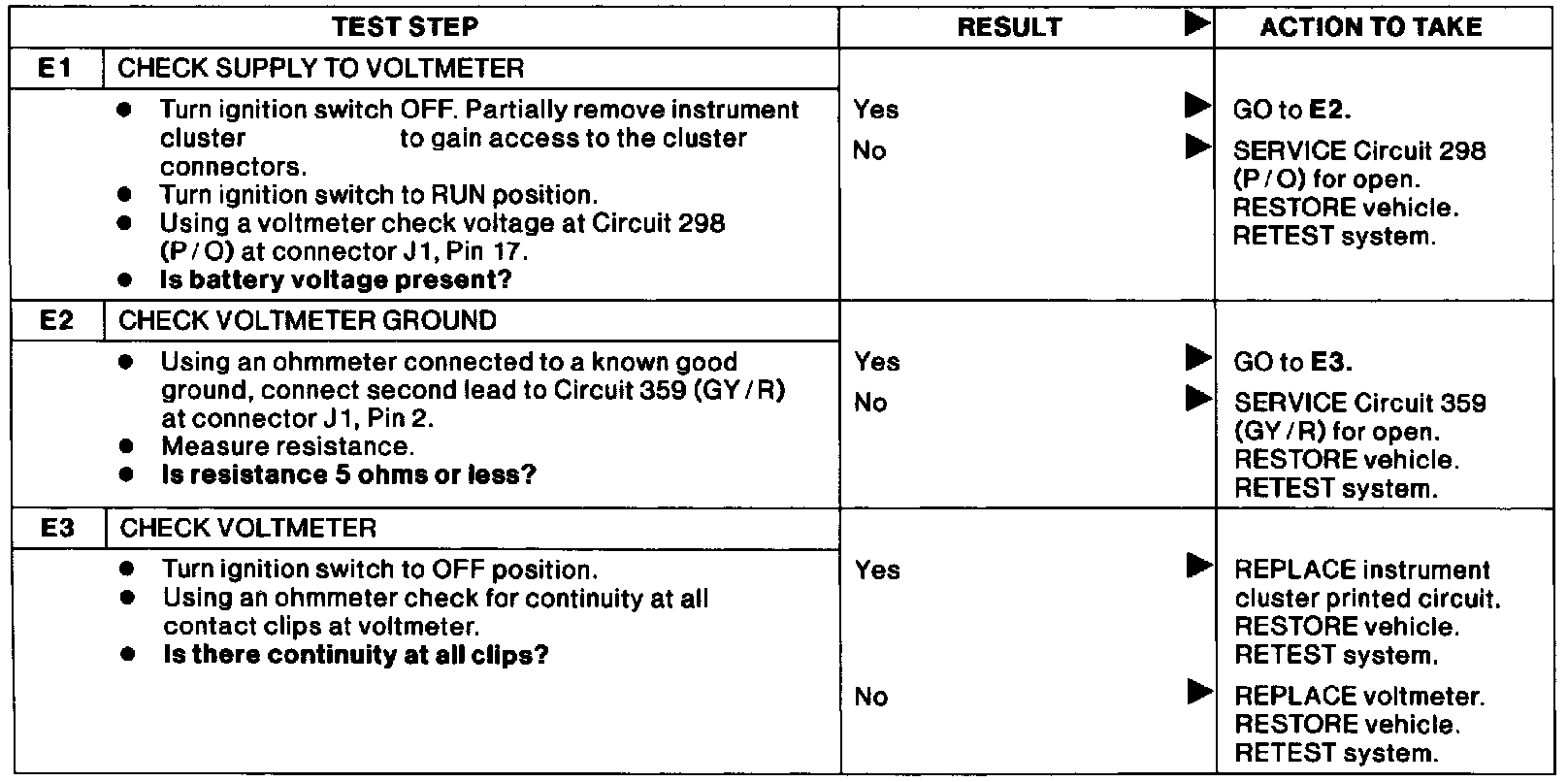

Test E1-E3 -- Voltmeter Reads Inaccurately
