Speedometer Head: Testing and Inspection
Test G: Speedometer Reads Inaccurately.:
Test G1-G3

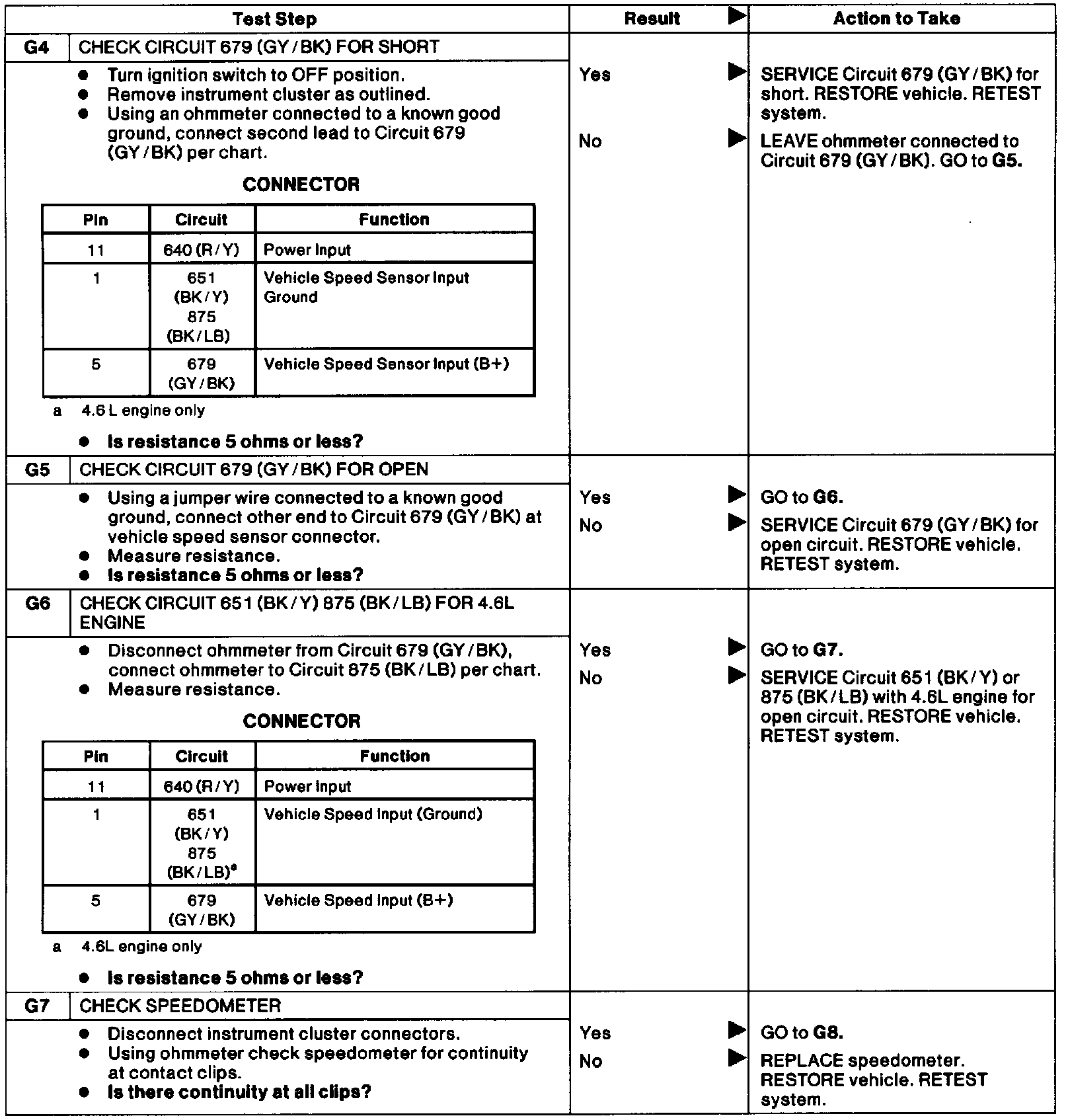

Test G: Speedometer Reads Inaccurately.:
Test G4-G7
Test G: Speedometer Reads Inaccurately.:
Test G8
