Charge Lamp/Indicator: Testing and Inspection

Test L: Charge System Warning Lamp Never/Always On.:

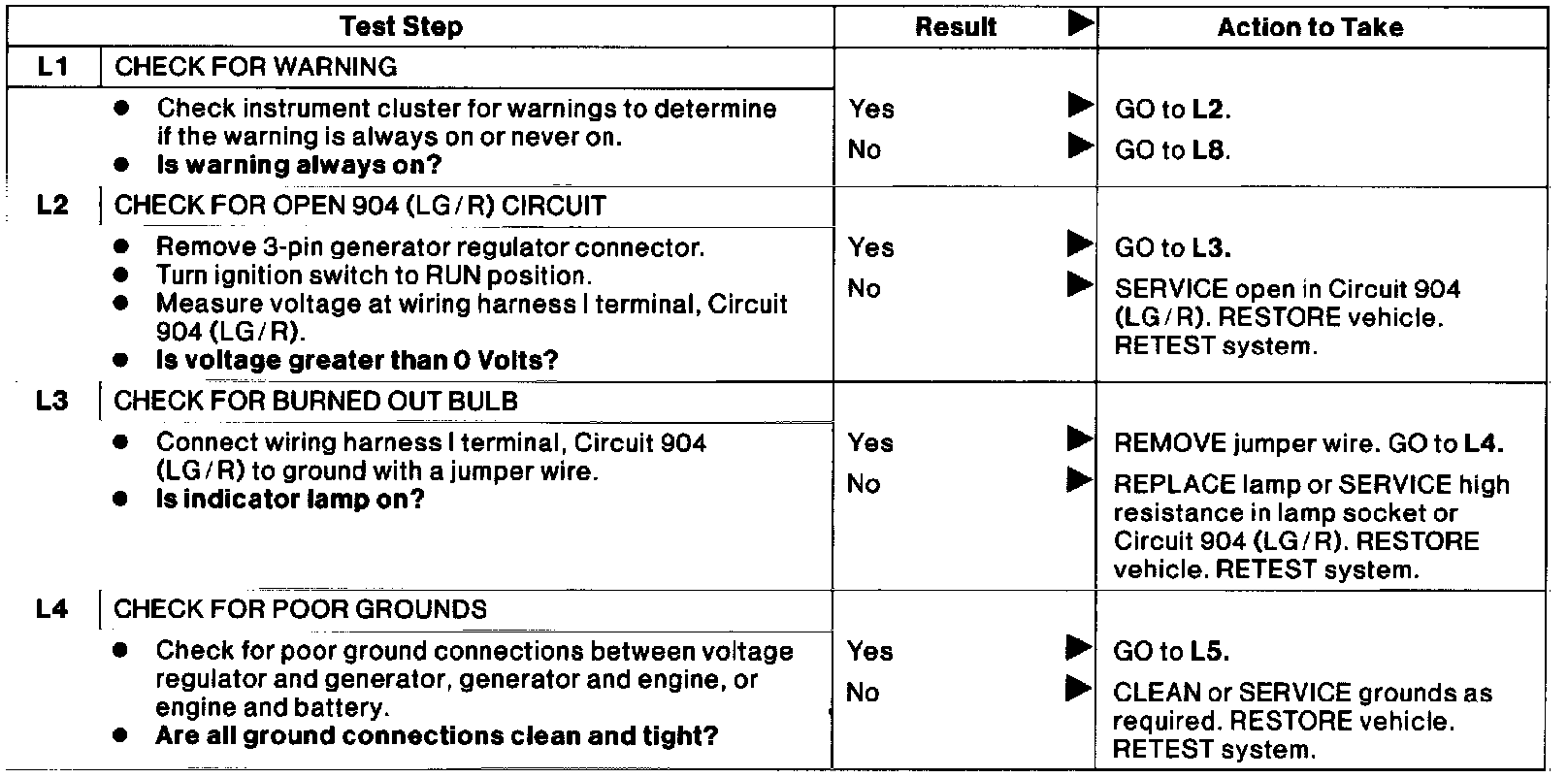

Test L1-L4

Test L: Charge System Warning Lamp Never/Always On.:

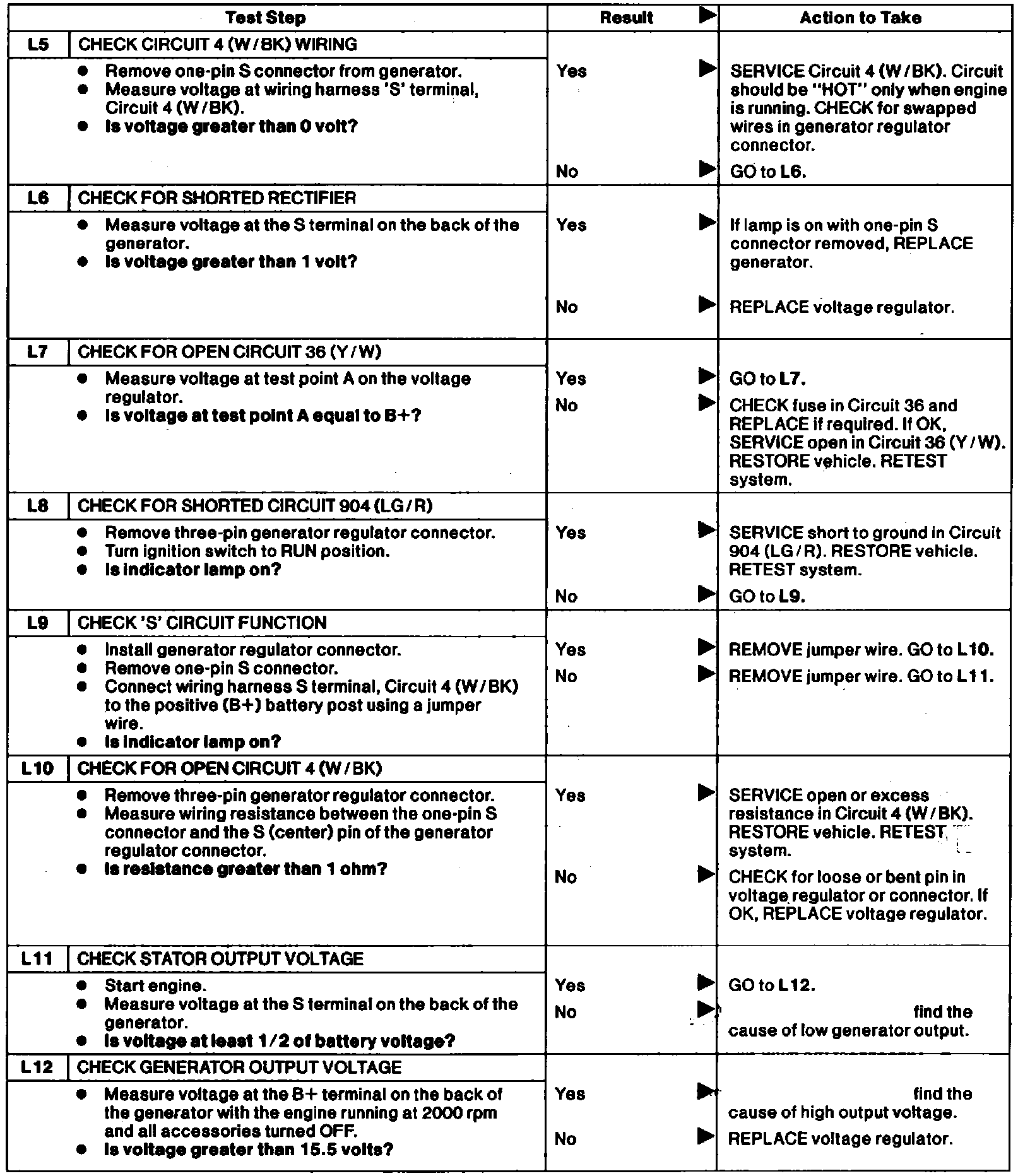

Test L5-L12
