Control Assembly, HVAC

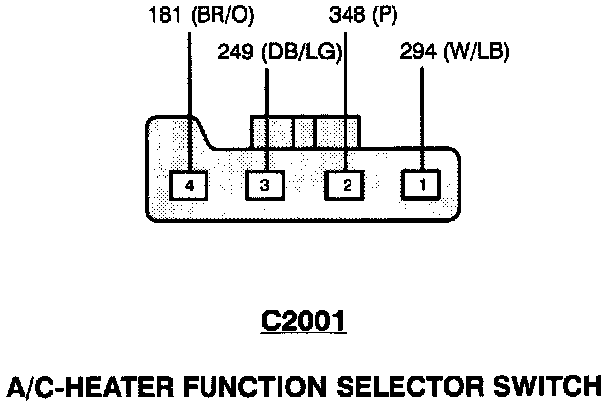

A/C-Heater Function Selector Switch (C2001):

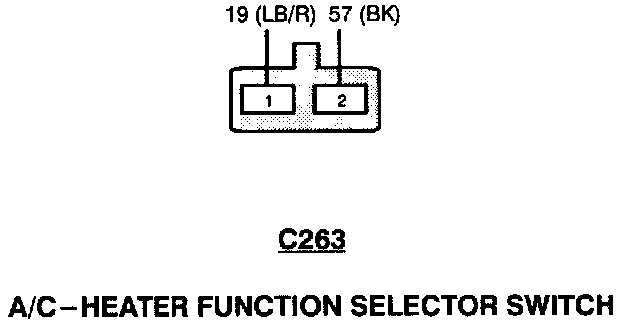

A/C-Heater Function Selector Switch (C263):

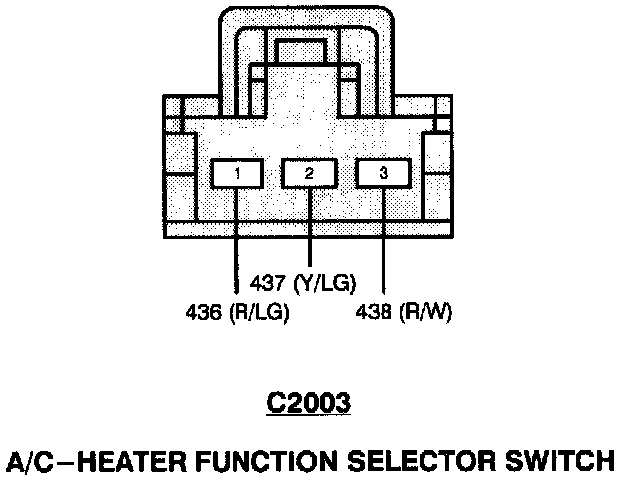

A/C-Heater Function Selector Switch (C2003):
