Home >> Mercury >> 1996 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> System Diagram >> Air Conditioning Joint Connector >> 2 of 2

2 of 2

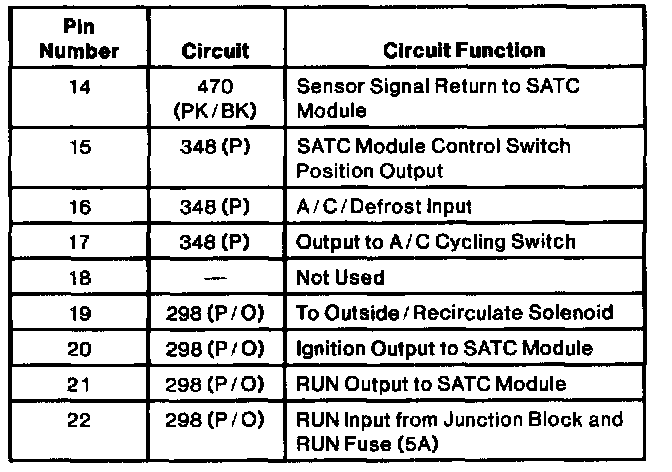

Air Conditioning Joint Connector Terminal ID:
