Rear

REMOVAL
1. Raise and support rear of vehicle, then remove wheel and tire assembly.
2. Remove brake hose bracket to shock unit bracket screw.
3. Remove retaining clip, then disconnect parking brake cable from lever.





4. Using open end wrench to hold slider pin in position, remove upper pinch bolt. Loosen, but do not lower, slider pin pinch bolt.
5. Carefully rotate caliper away from rotor, then remover inner and outer brake pads and anti-rattle springs from anchor plate.

INSTALLATION

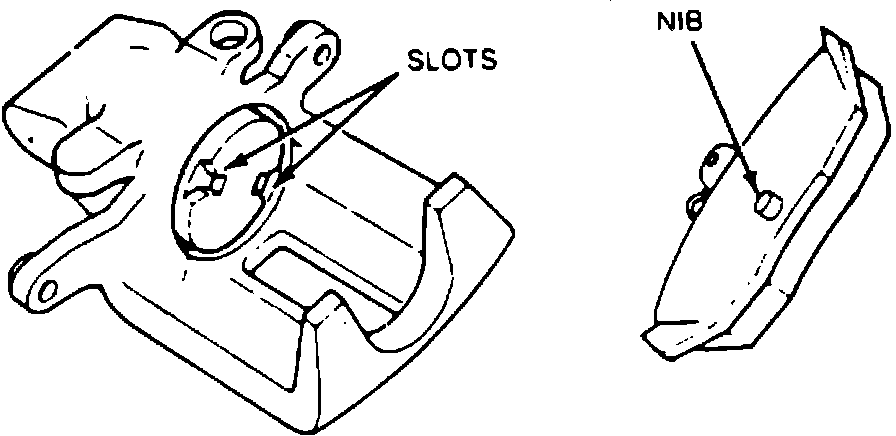

Fig. 14 Positioning Caliper Piston To Brake Pad Nib:

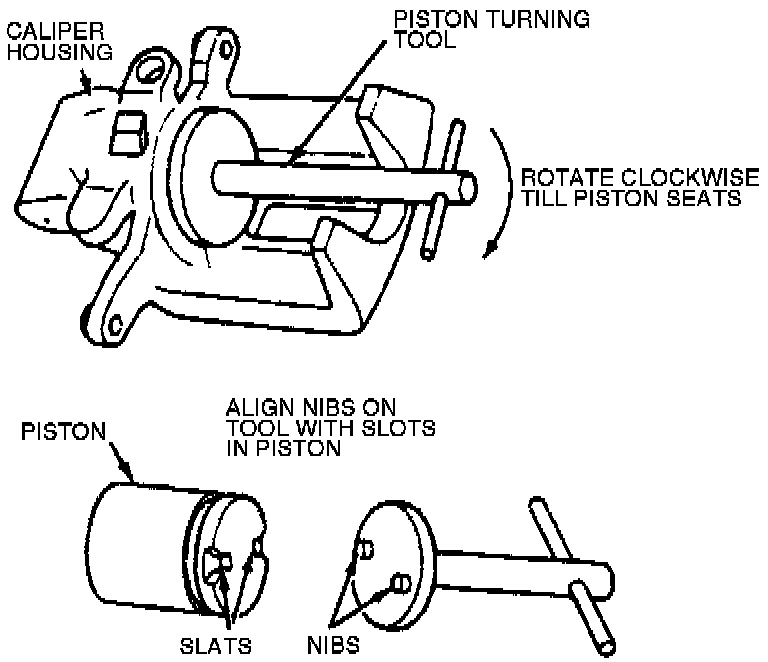

1. Using rear caliper piston adjuster T87P-2588-A, or equivalent, rotate caliper piston clockwise until fully seated. Position one of two piston slots so it will engage nib on rear of brake pad.

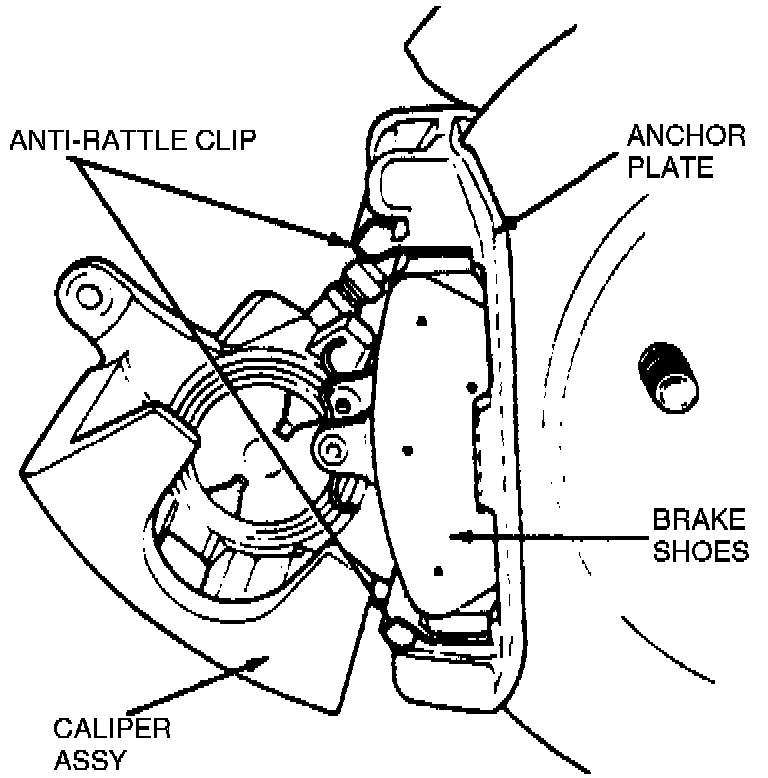

2. Position inner and outer brake pads on anchor plate, then install anti-rattle springs.





3. Carefully rotate caliper assembly over brake rotor. Ensure brake pads and anti-rattle springs are properly positioned.
4. Apply suitable thread sealer and locking compound to pinch bolt threads. Install and tighten pinch bolts, while holding slider pin in position with suitable open end wrench.
5. Position parking brake cable to lever, then install retaining clip.
6. Position brake hose and bracket to shock unit bracket and install attaching bolt.
7. Install wheel and tire assembly, then lower vehicle.
8. Cycle brake pedal several times to position brake pads and caliper piston.
