Mercury
>>
1996
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Radio/Stereo
>>
Diagrams
>>
Electrical Diagrams
>>
Without Premium Sound
Without Premium Sound

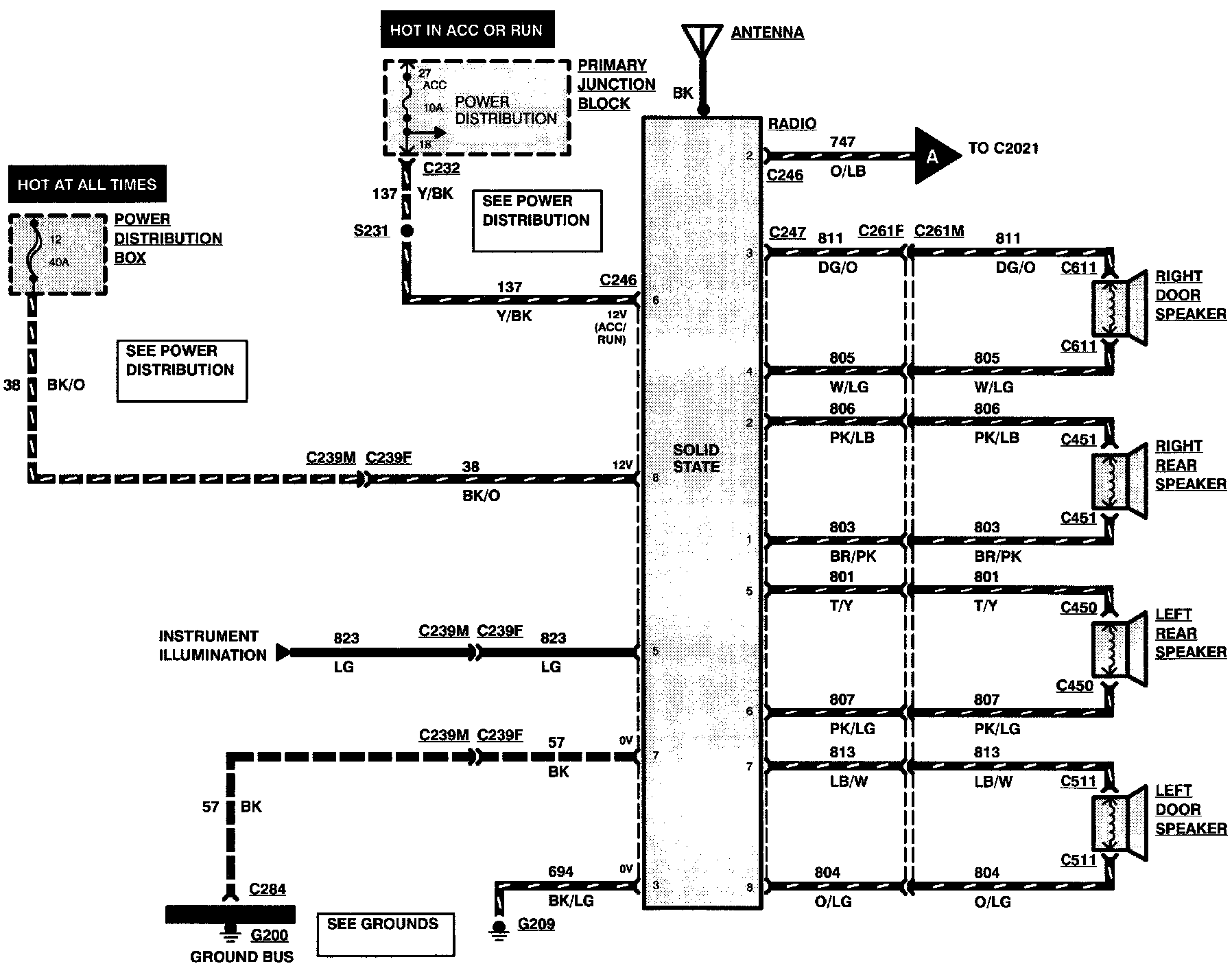

Radio (AM/FM Stereo):

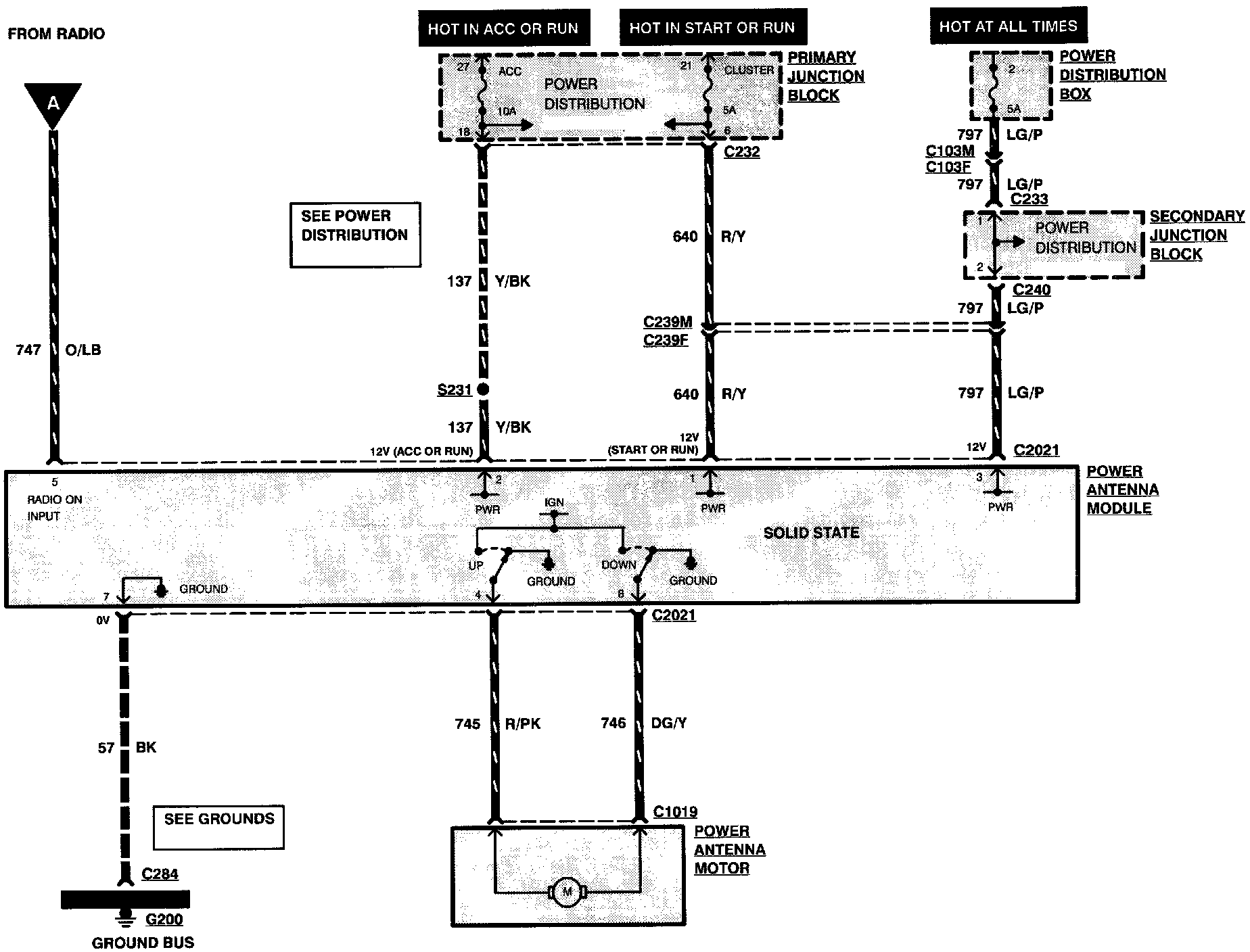

Radio:
