Home >> Mercury >> 1995 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Sensors and Switches - Wiper and Washer Systems >> Wiper Switch >> Testing and Inspection

Wiper Switch: Testing and Inspection

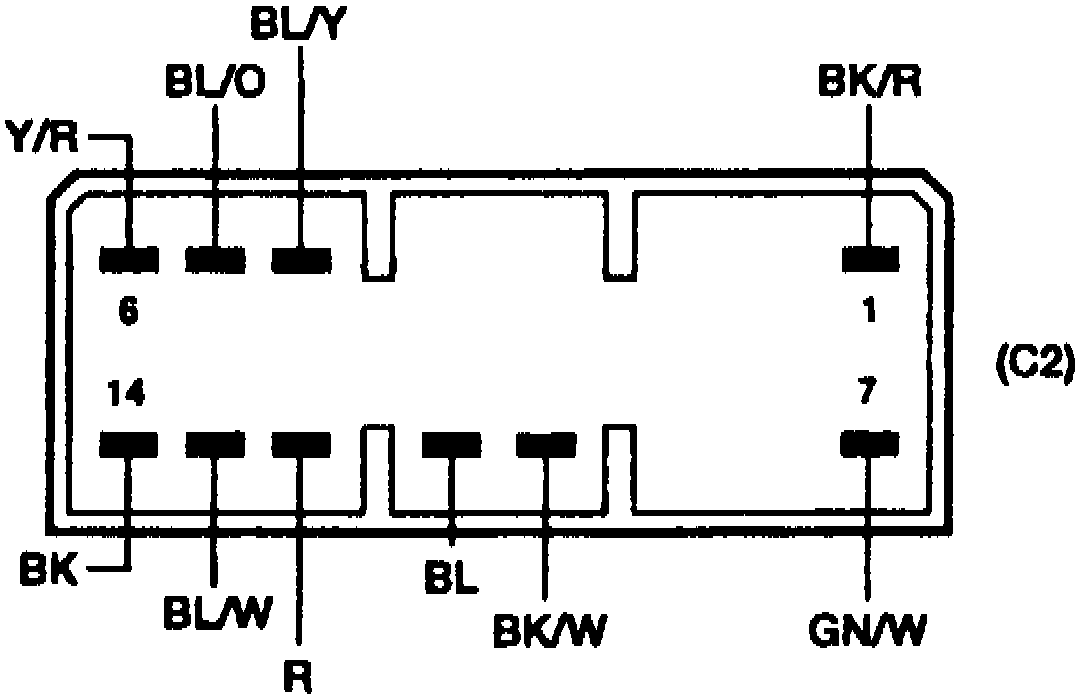

Windshield Wiper/Washer Switch Connector Test:




Windshield Wiper/Washer Switch Connector Test:

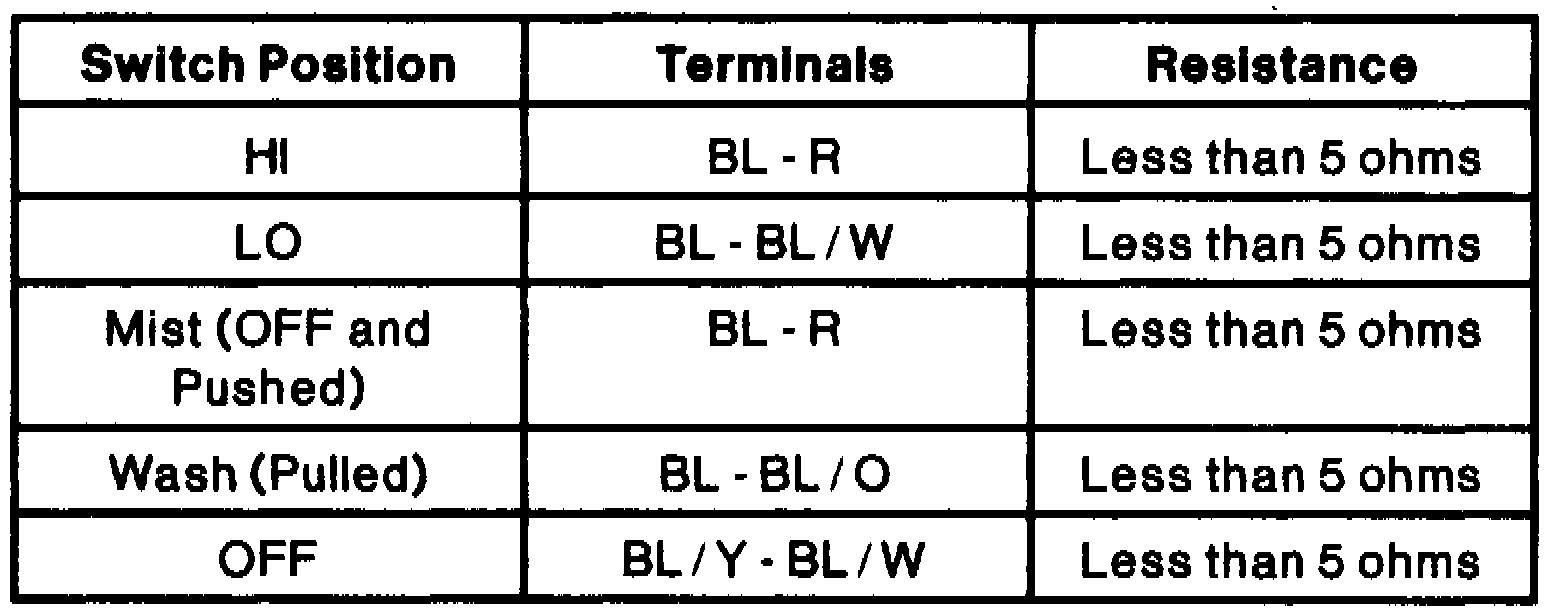

Test windshield wiper/washer switch using a suitable ohmmeter.
