Home >> Mercury >> 1995 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Connector Views >> Instrument Panel Fuse Panel

Instrument Panel Fuse Panel

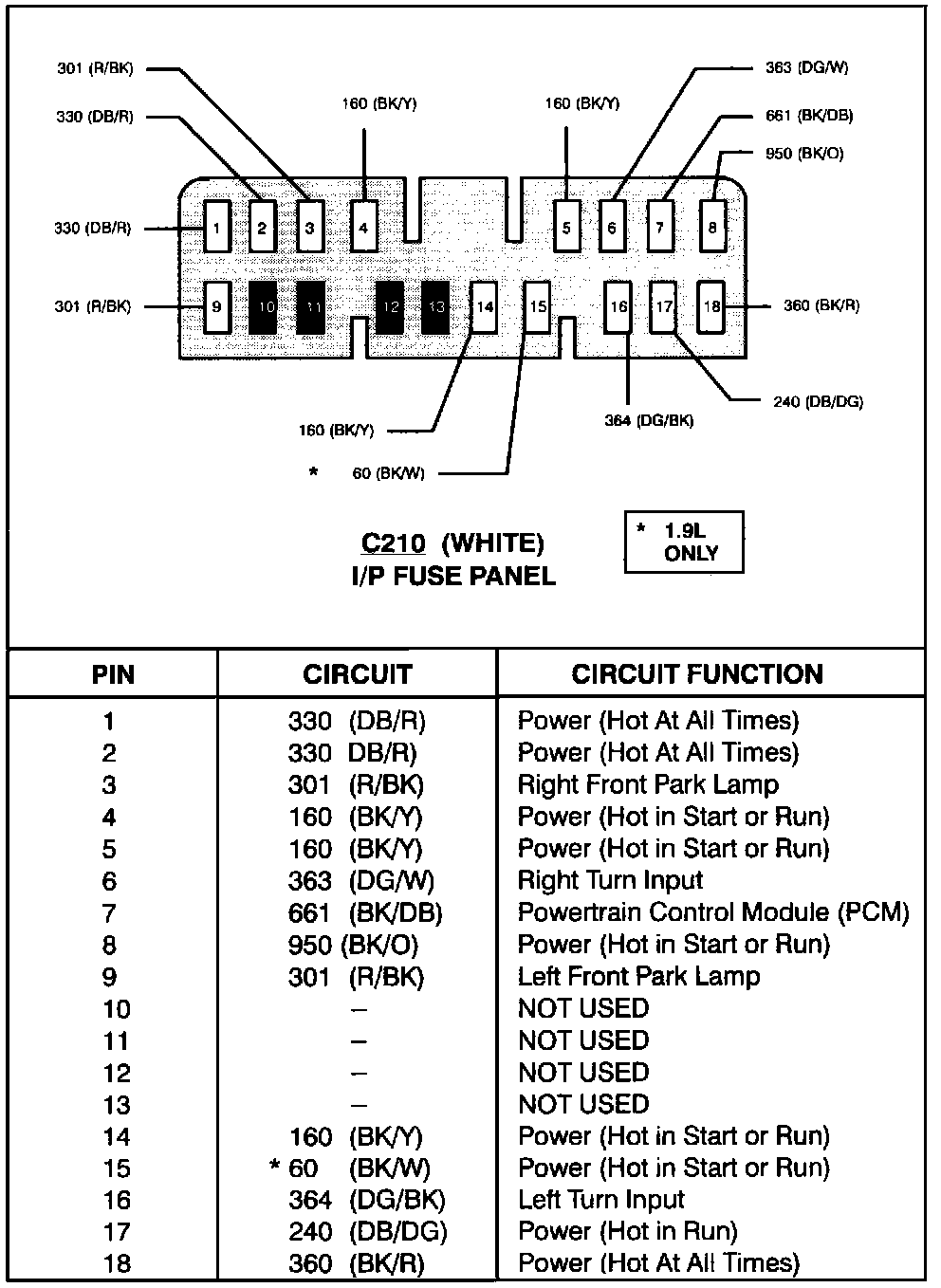

Instrument Panel Fuse Panel (C210):

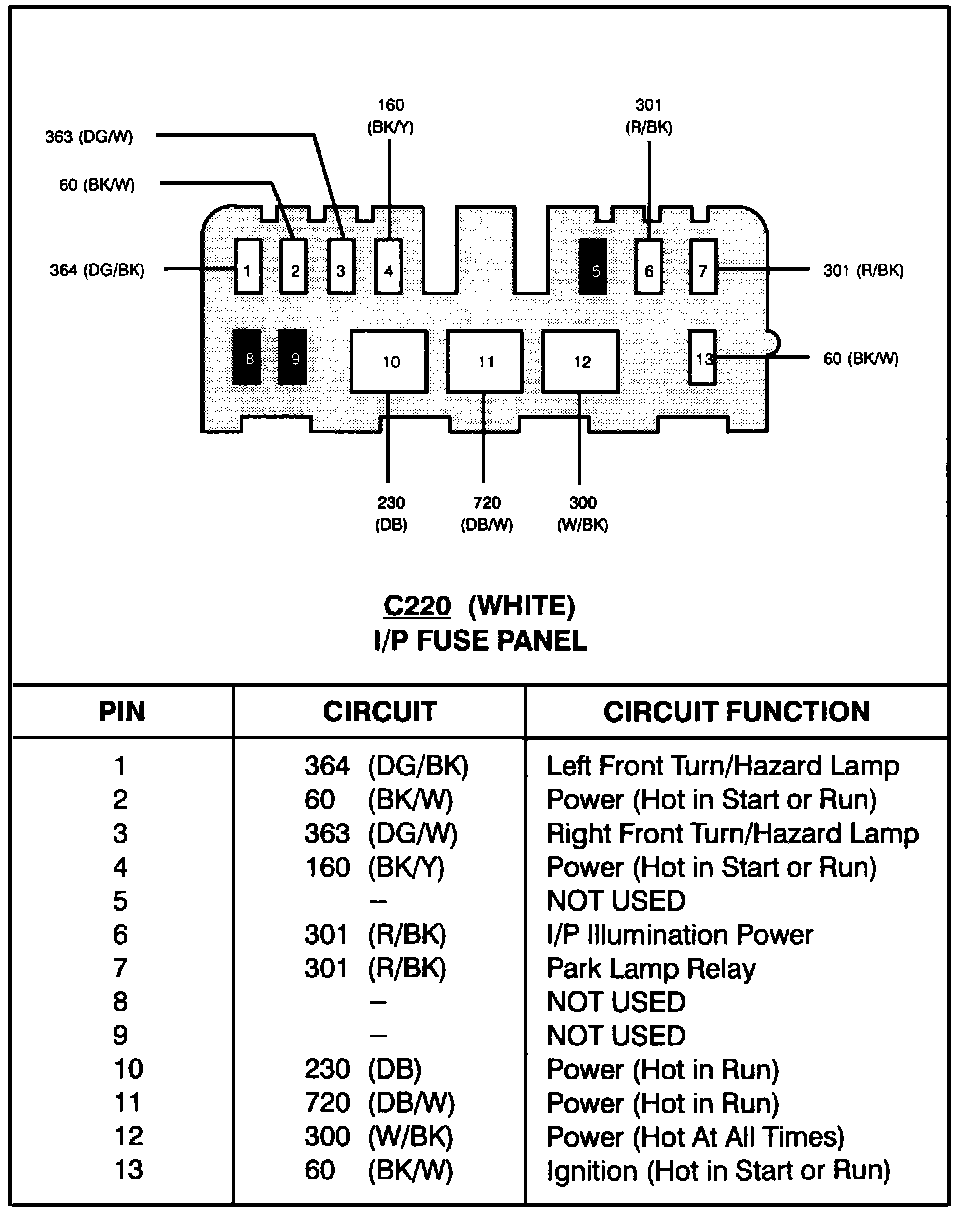

Instrument Panel Fuse Panel (C220):




Instrument Panel Fuse Panel (C260):

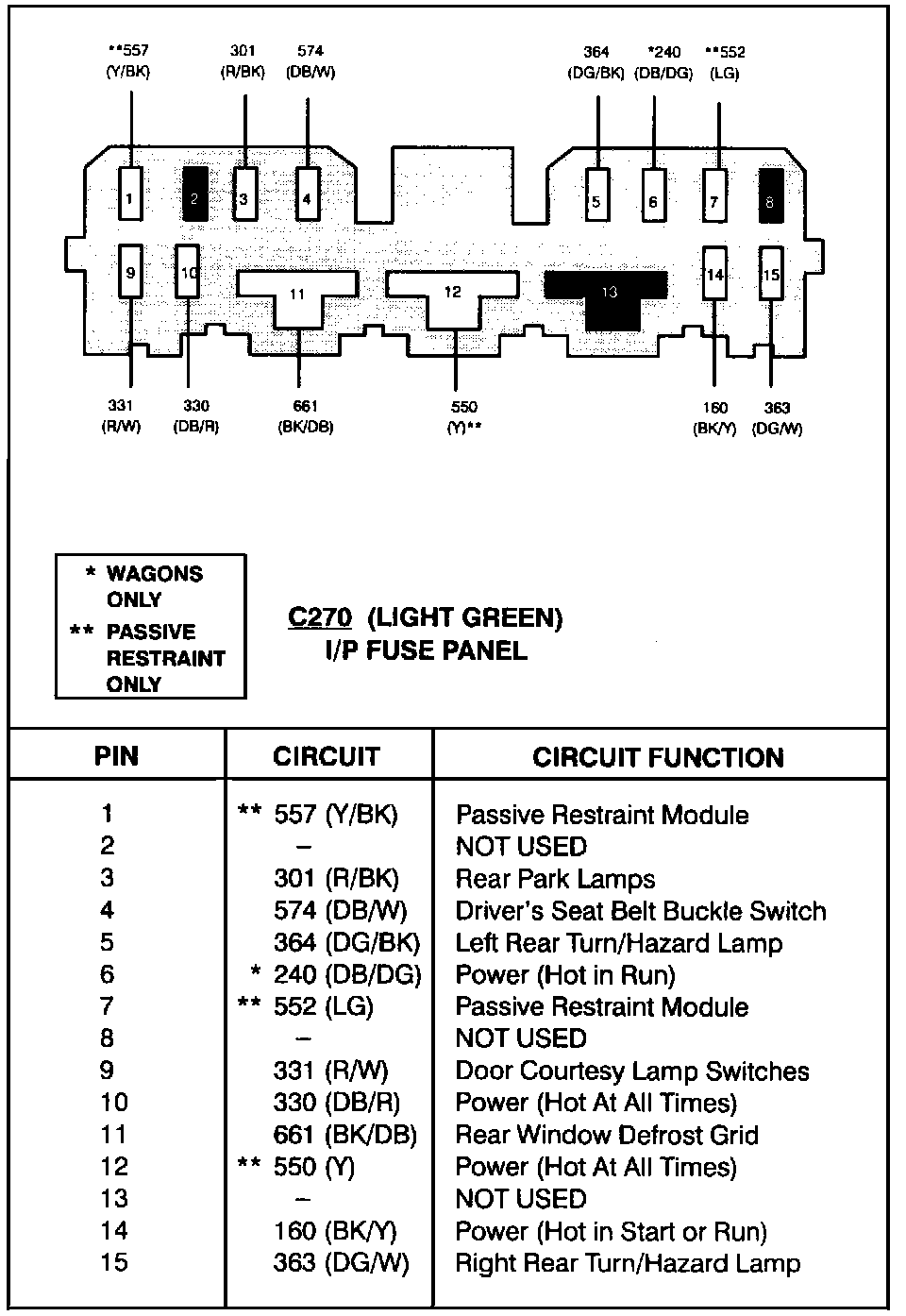

Instrument Panel Fuse Panel (C270):




Instrument Panel Fuse Panel (C230):

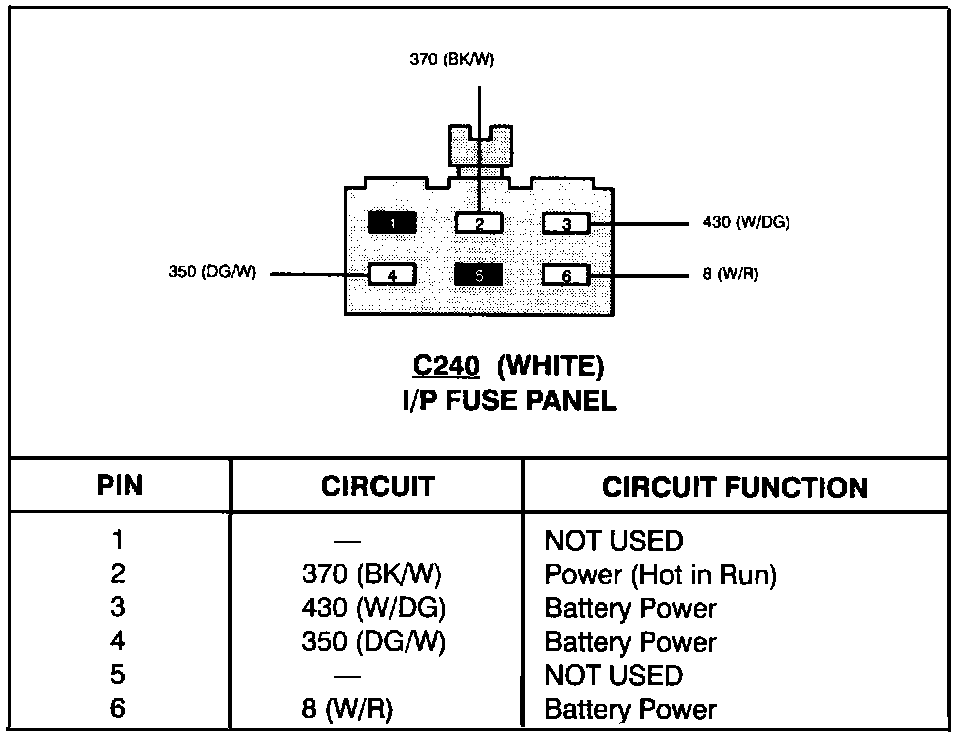

Instrument Panel Fuse Panel (C240):
