Rear Seat Belt and Buckle

Removal

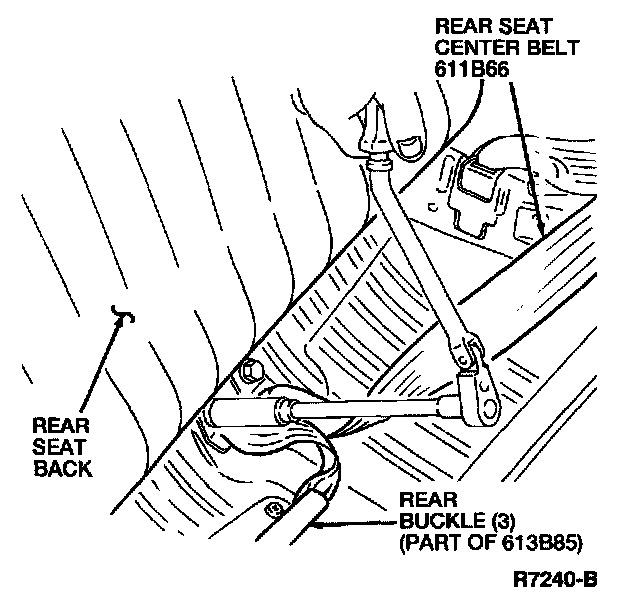

1. Pull up the rear seat cushion to gain access to the bolts for the rear buckles and rear seat center belt.





2. Remove the bolts from the rear buckles and the rear seat center belt.

Installation

To install, reverse the removal procedure. Tighten the rear safety belt buckle bolts to 30-40 N.m (22-30 lb-ft). Tighten the rear seat center belt bolt to 30-40 N.m (22-30 lb-ft).
