Seat Belt Control Module: Locations

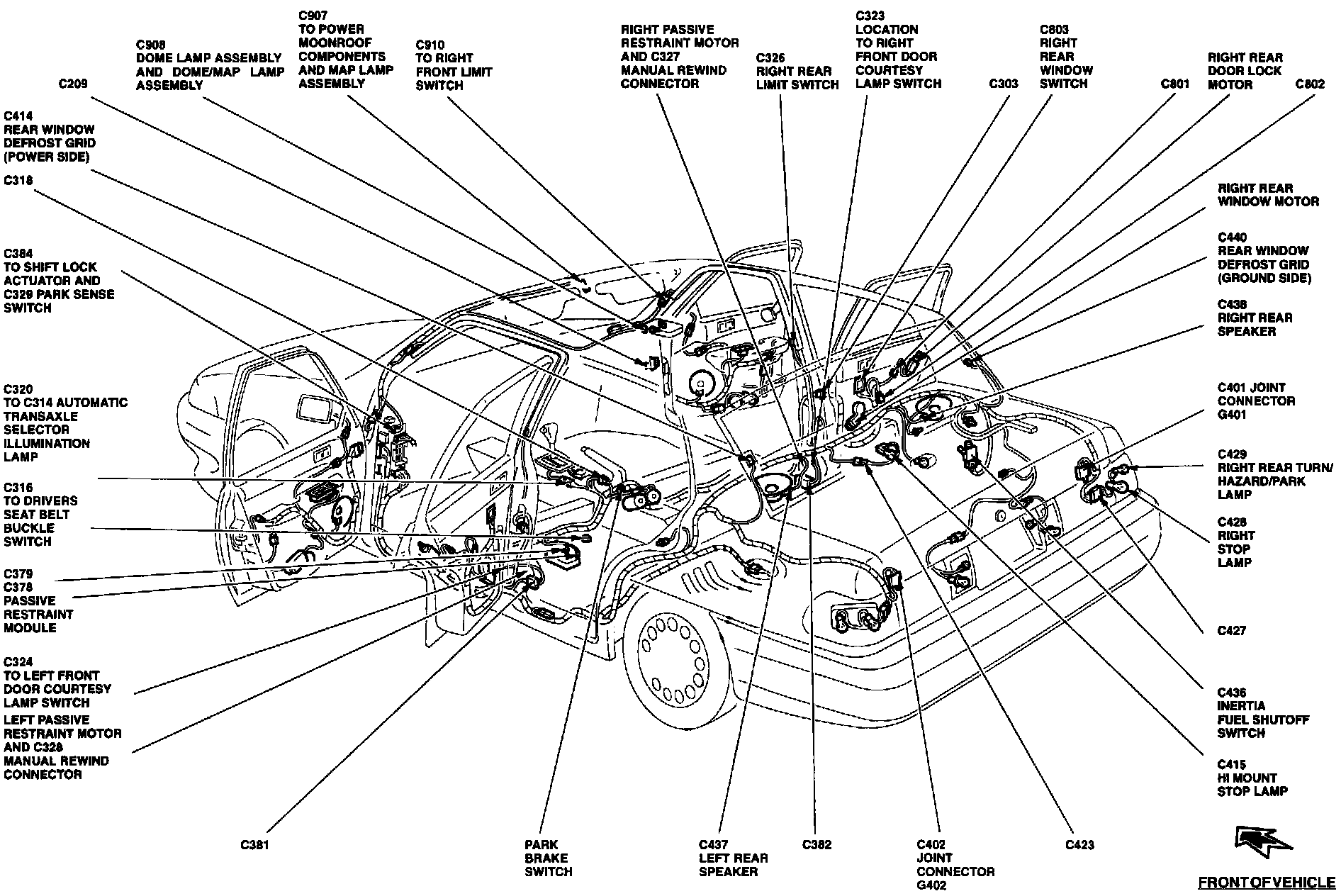

Full Body View (Sedan):





The Passive Restraint Module is located under LH front seat.
