Pinout Values and Diagnostic Parameters

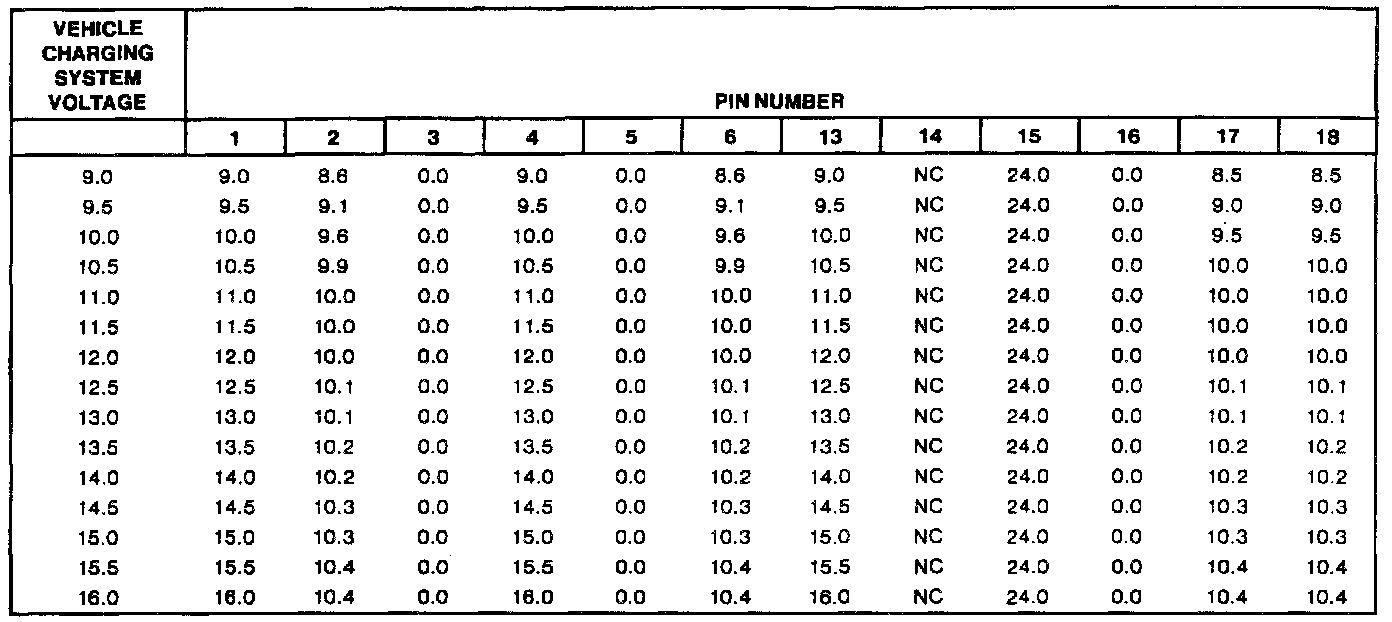

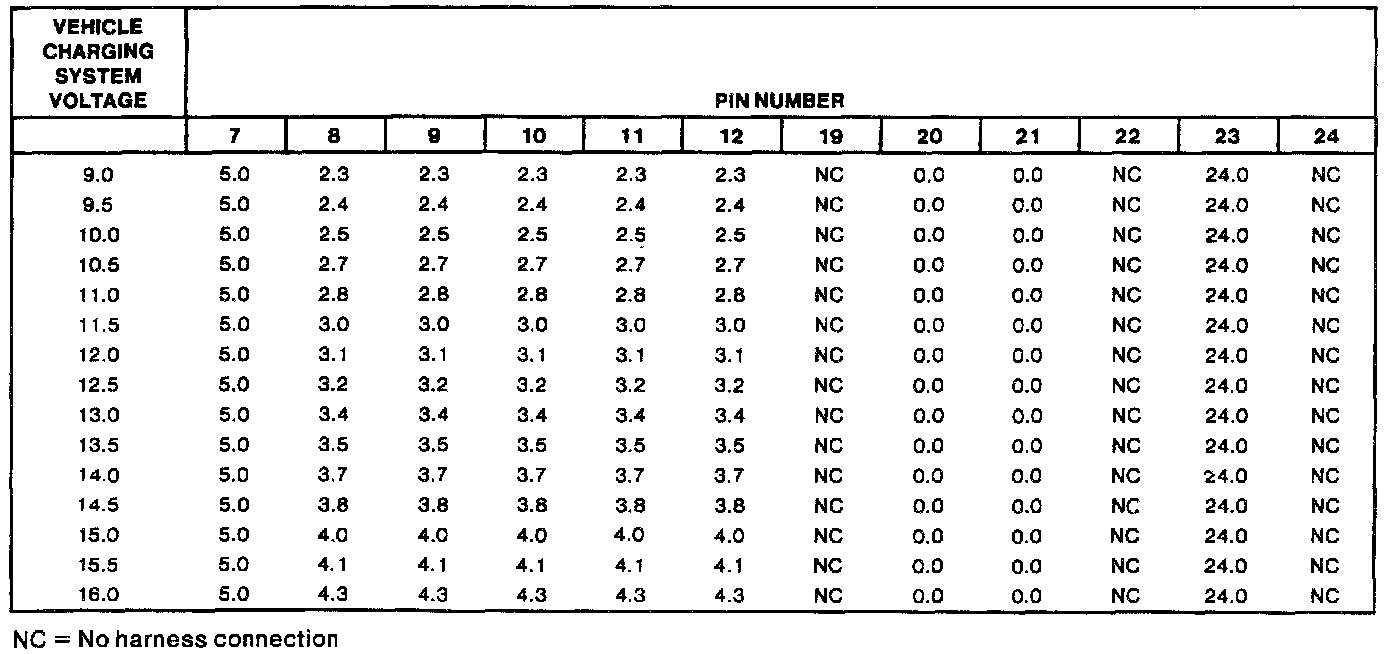

Air Bag Diagnostic Monitor typical Pin Voltages With System Connected And Engine Running
