Home >> Mercury >> 1995 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Panel Illumination Control Module >> Diagrams

Panel Illumination Control Module: Diagrams

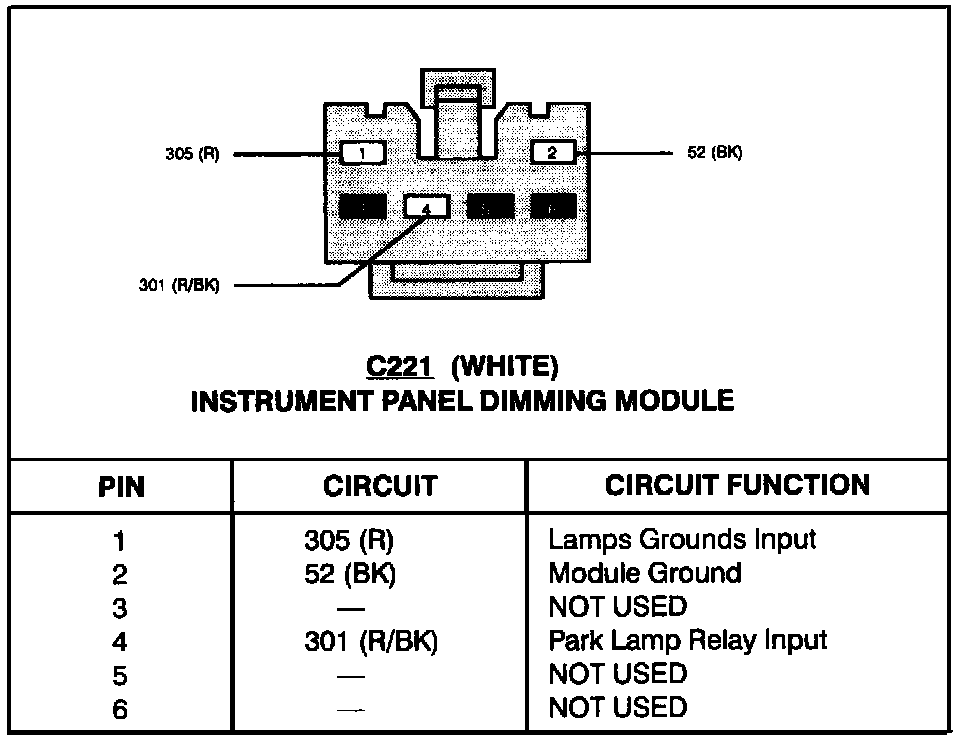

Instrument Panel Dimming Module:
