Electrical Diagrams

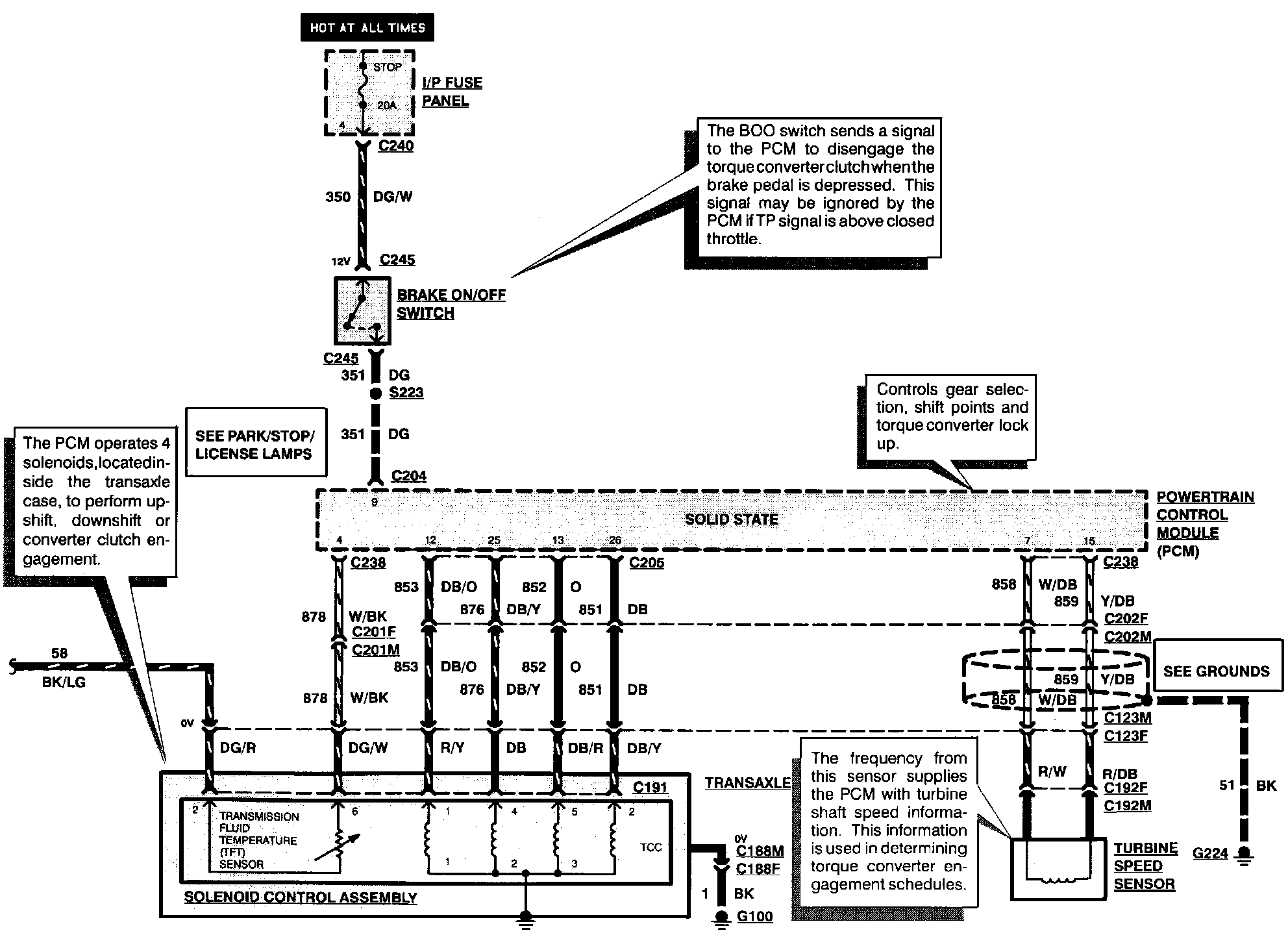

Electronic Automatic Transaxle (Part 1 Of 2):

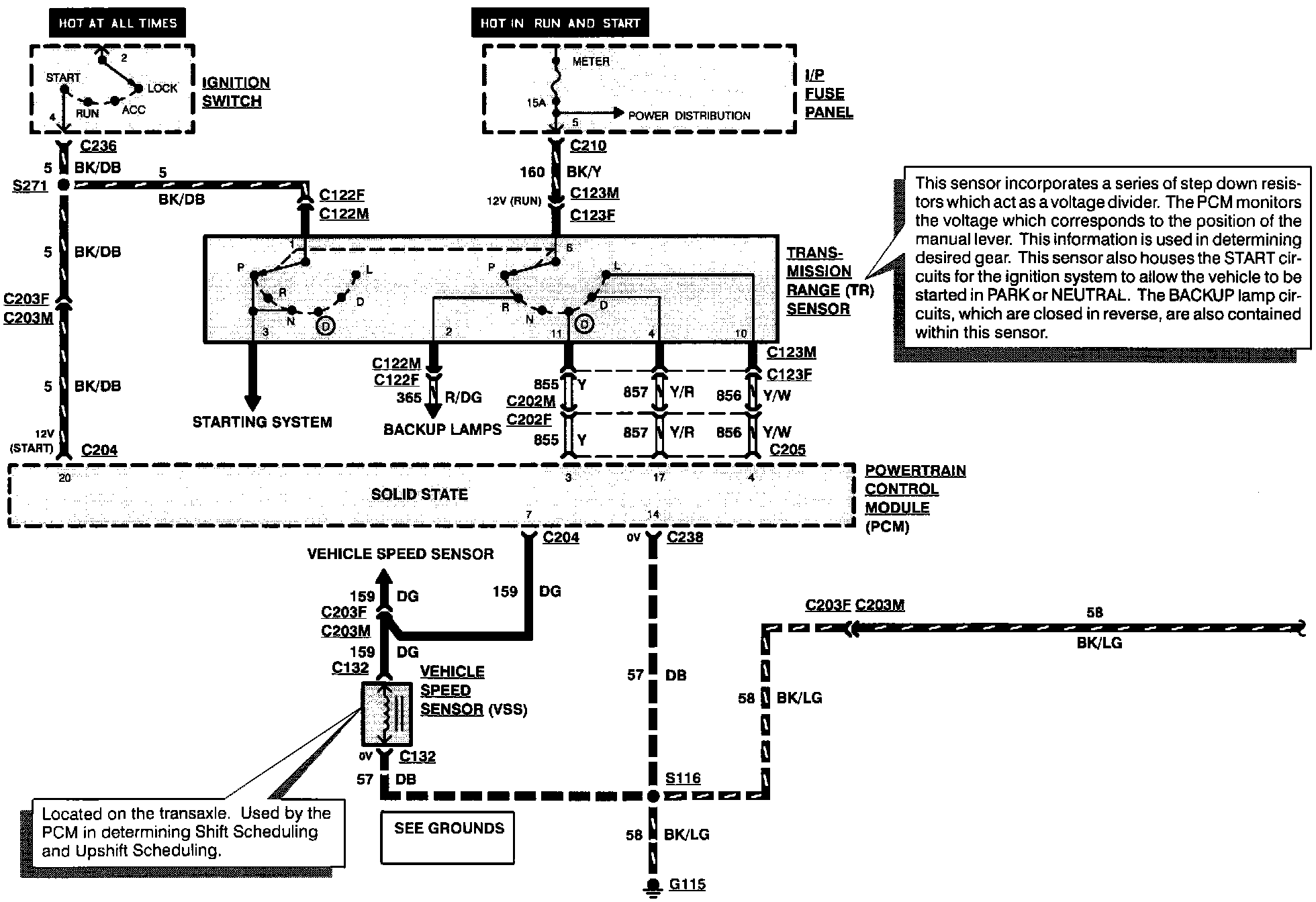

Electronic Automatic Transaxle (Part 2 Of 2):
