Evaporative Check Valve: Service and Repair

REMOVAL and INSTALLATION

1. Raise and support the vehicle.

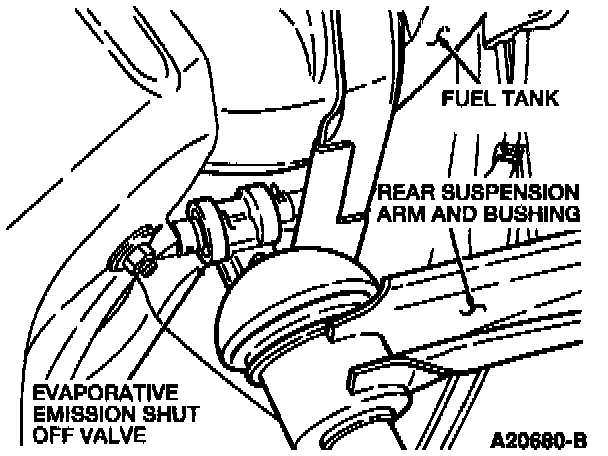

Evapoartive Emission Tube Shut Off Valve:

2. Disconnect the inlet and outlet hoses from the evaporative emission tube shut off valve.

3. Remove the bolt from the evaporative emission tube shut off valve and remove the evaporative emission tube shut off valve and bracket.

4. To install, reverse the removal procedure.
