Home >> Mercury >> 1995 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values (Includes PID's) >> Diagnostic Reference Values >> Manual Transmission

Manual Transmission

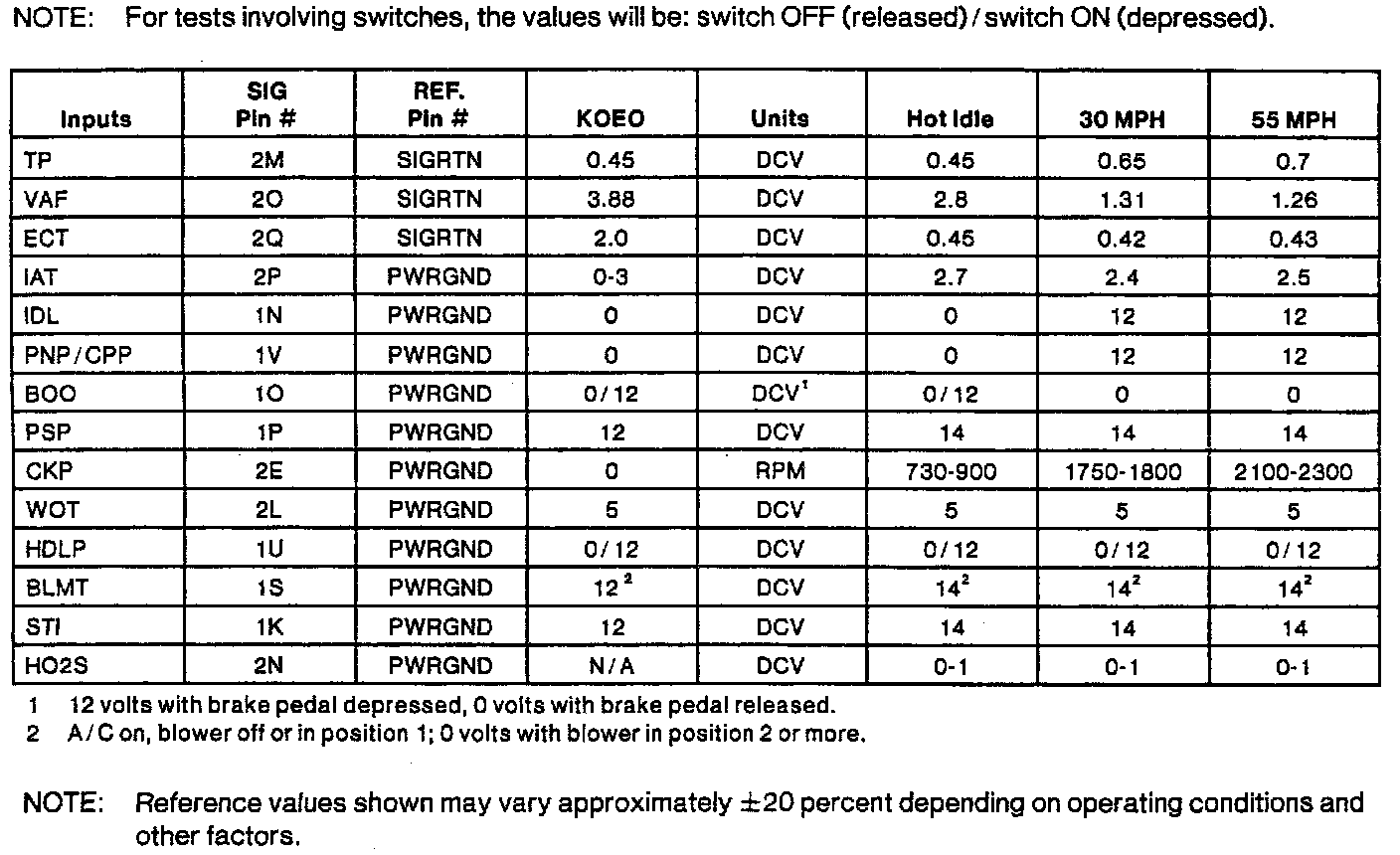

Diagnostic Reference Value (Inputs):

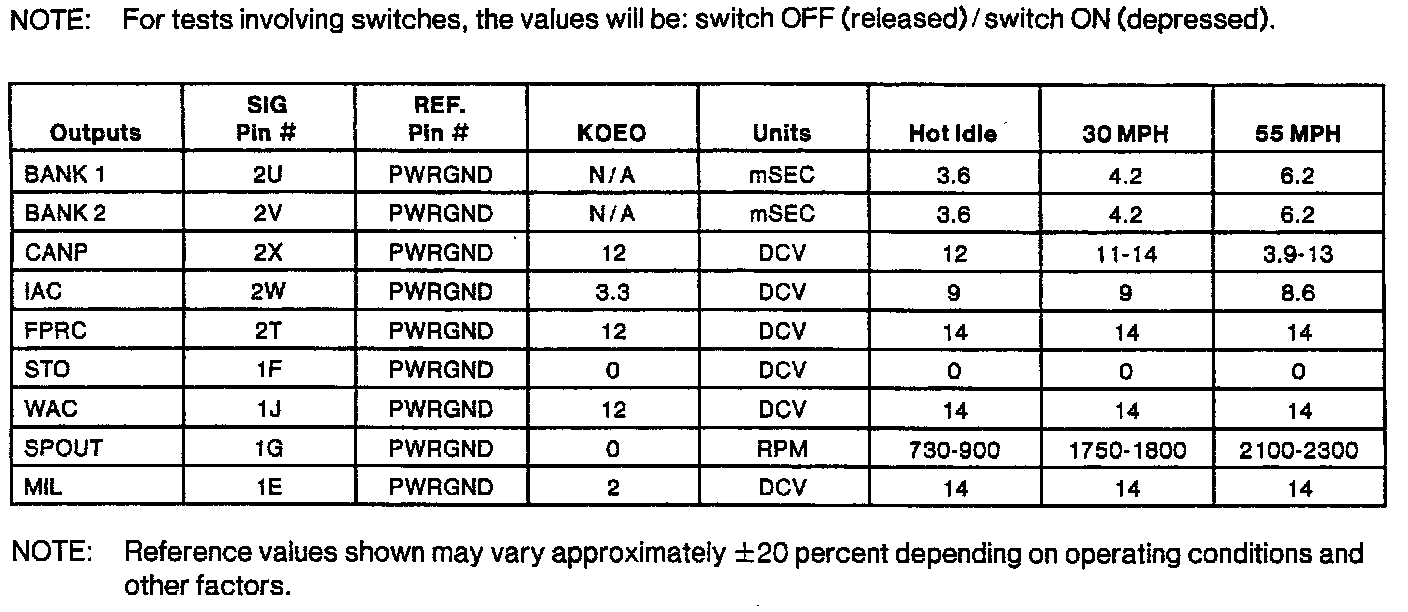

Diagnostic Reference Value (Outputs):
