Home >> Mercury >> 1995 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> IAT - Intake Air Temperature Sensor >> IAT Circuit Data and Sensor Resistance

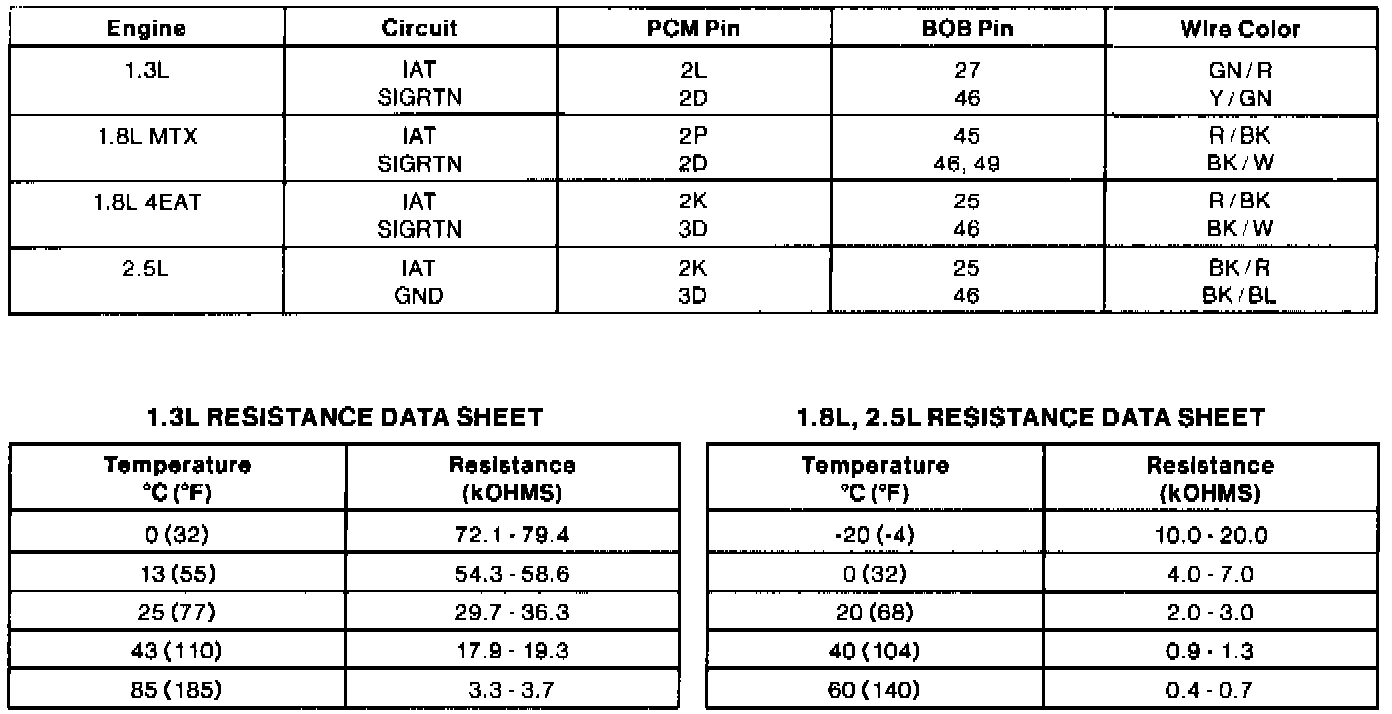

IAT Circuit Data and Sensor Resistance

IAT Circuit Data and Sensor Resistance:
