Home >> Mercury >> 1995 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Control Systems >> System Diagram >> Vacuum Routing Diagrams

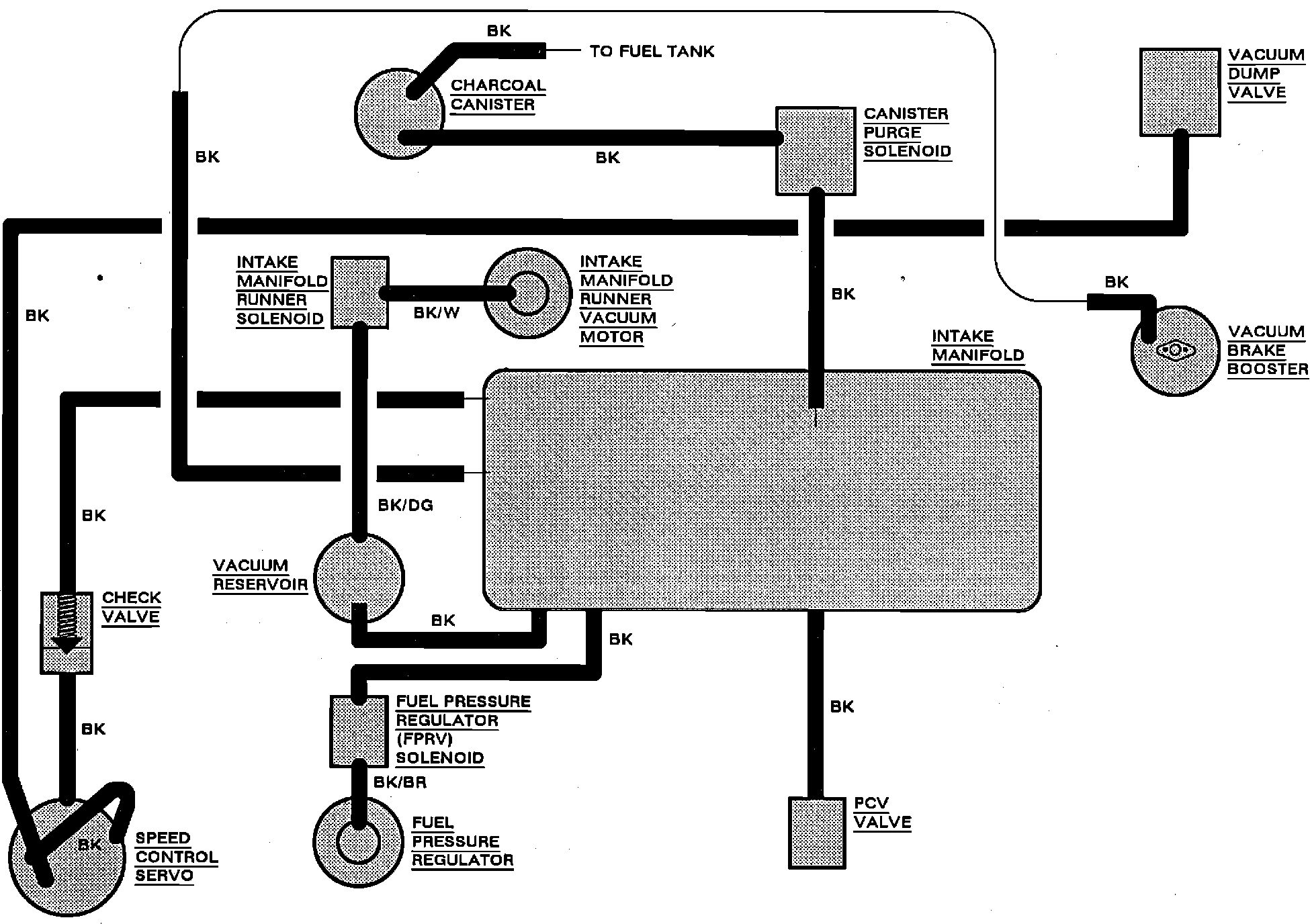

Vacuum Routing Diagrams

Vacuum Distribution:
