Engine Controls

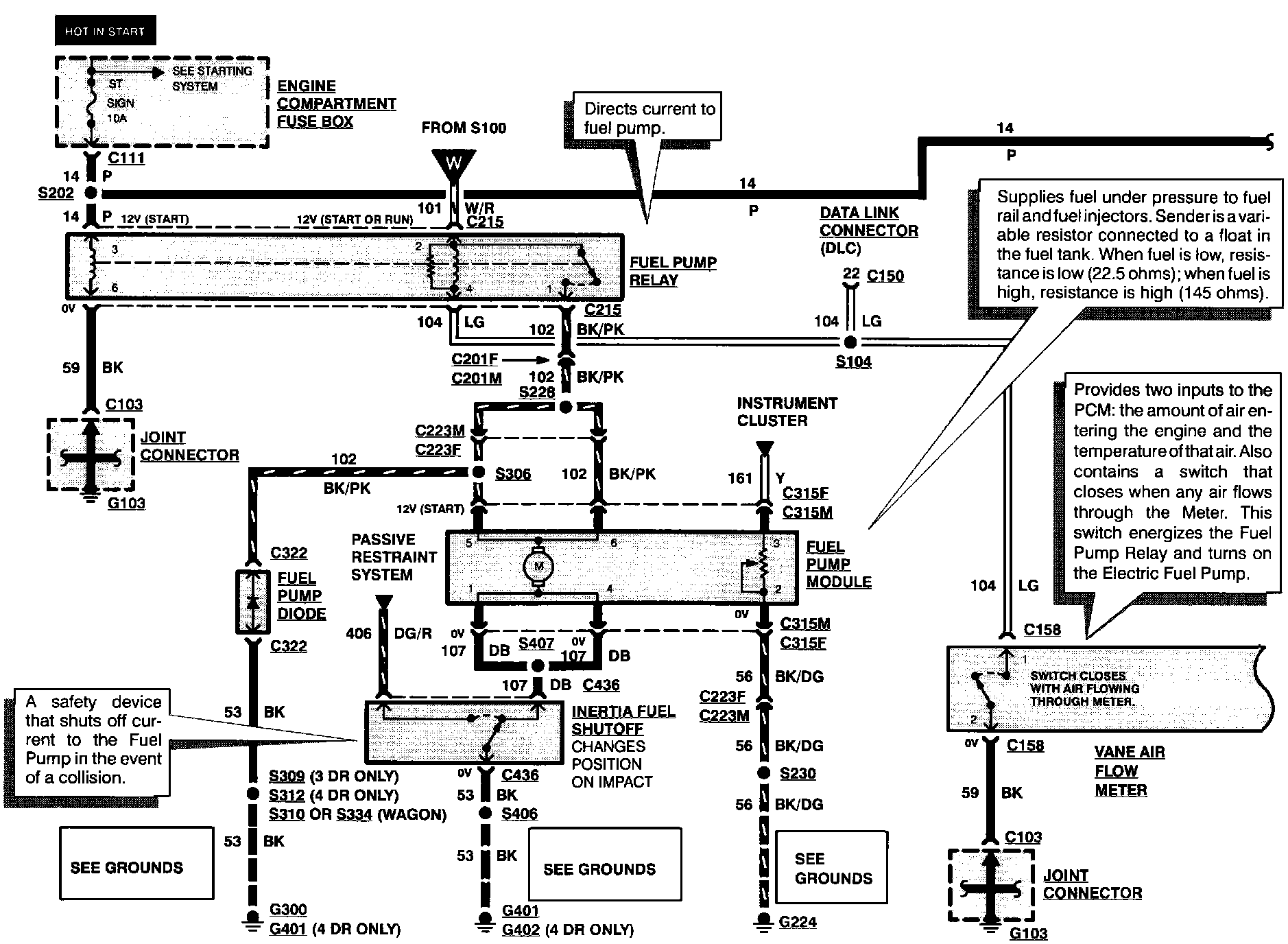

Engine Controls (Part 1 Of 6):

FUEL PUMP DIODE
FUEL PUMP MODULE
FUEL PUMP RELAY
INERTIA FUEL SHUTOFF
VANE AIR FLOW METER

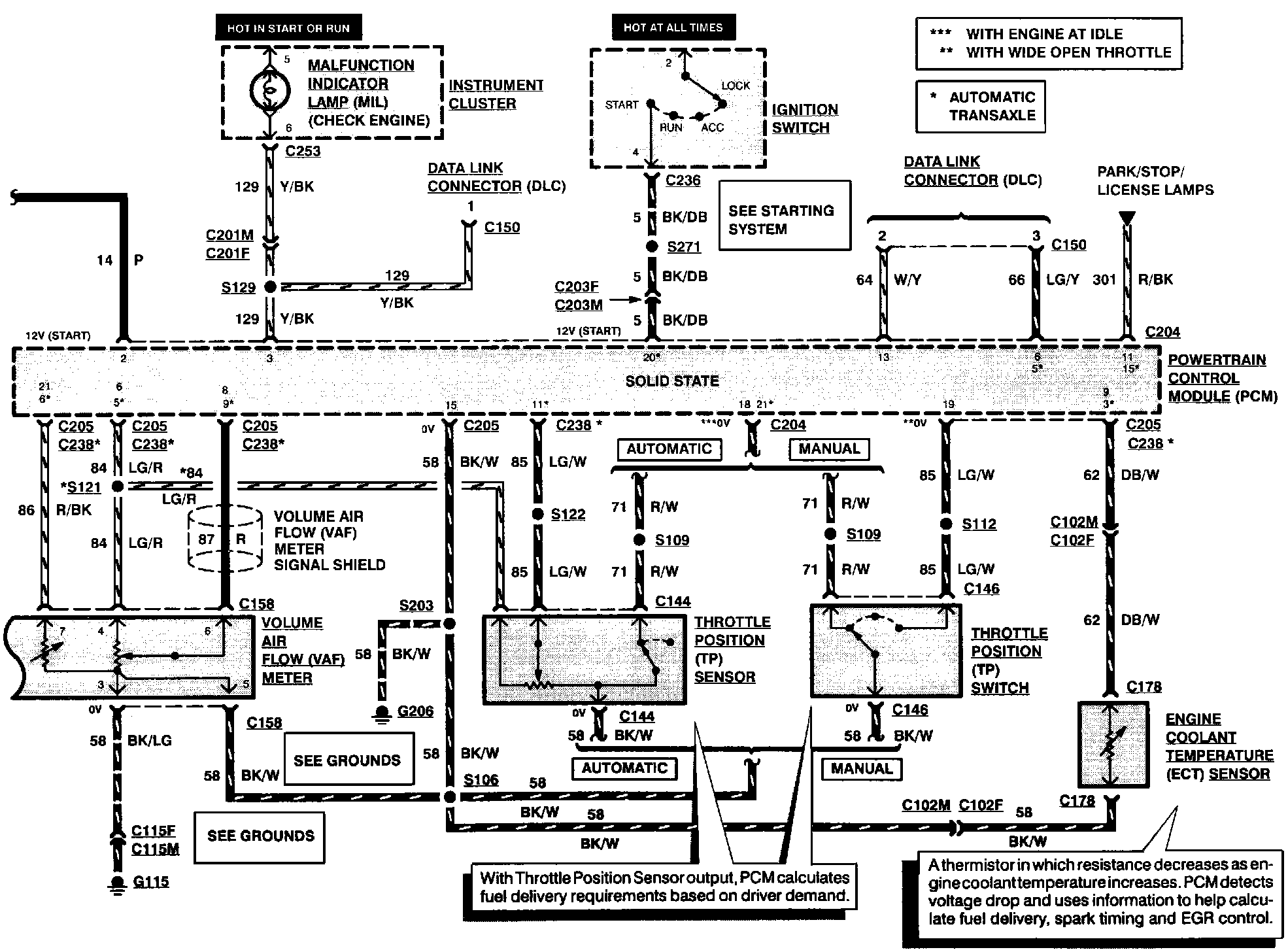

Engine Controls (Part 2 Of 6):

ENGINE COOLANT TEMPERATURE SENSOR
MALFUNCTION INDICATOR LAMP
THROTTLE POSITION SENSOR
THROTTLE POSITION SWITCH
VOLUME AIR FLOW METER

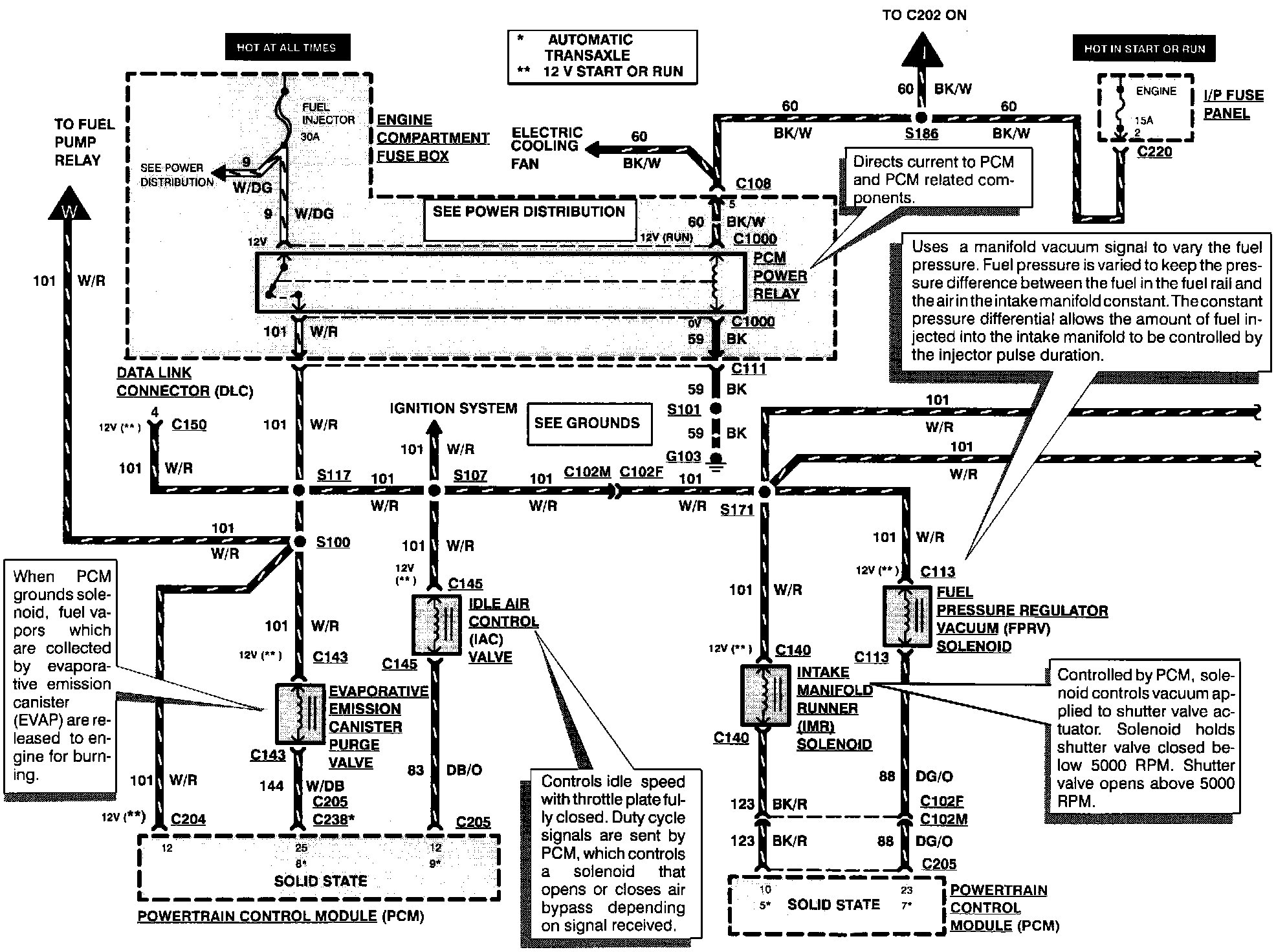

Engine Controls (Part 3 Of 6):

EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL PRESSURE REGULATOR VACUUM SOLENOID
IDLE AIR CONTROL VALVE
INTAKE MANIFOLD RUNNER SOLENOID
PCM POWER RELAY

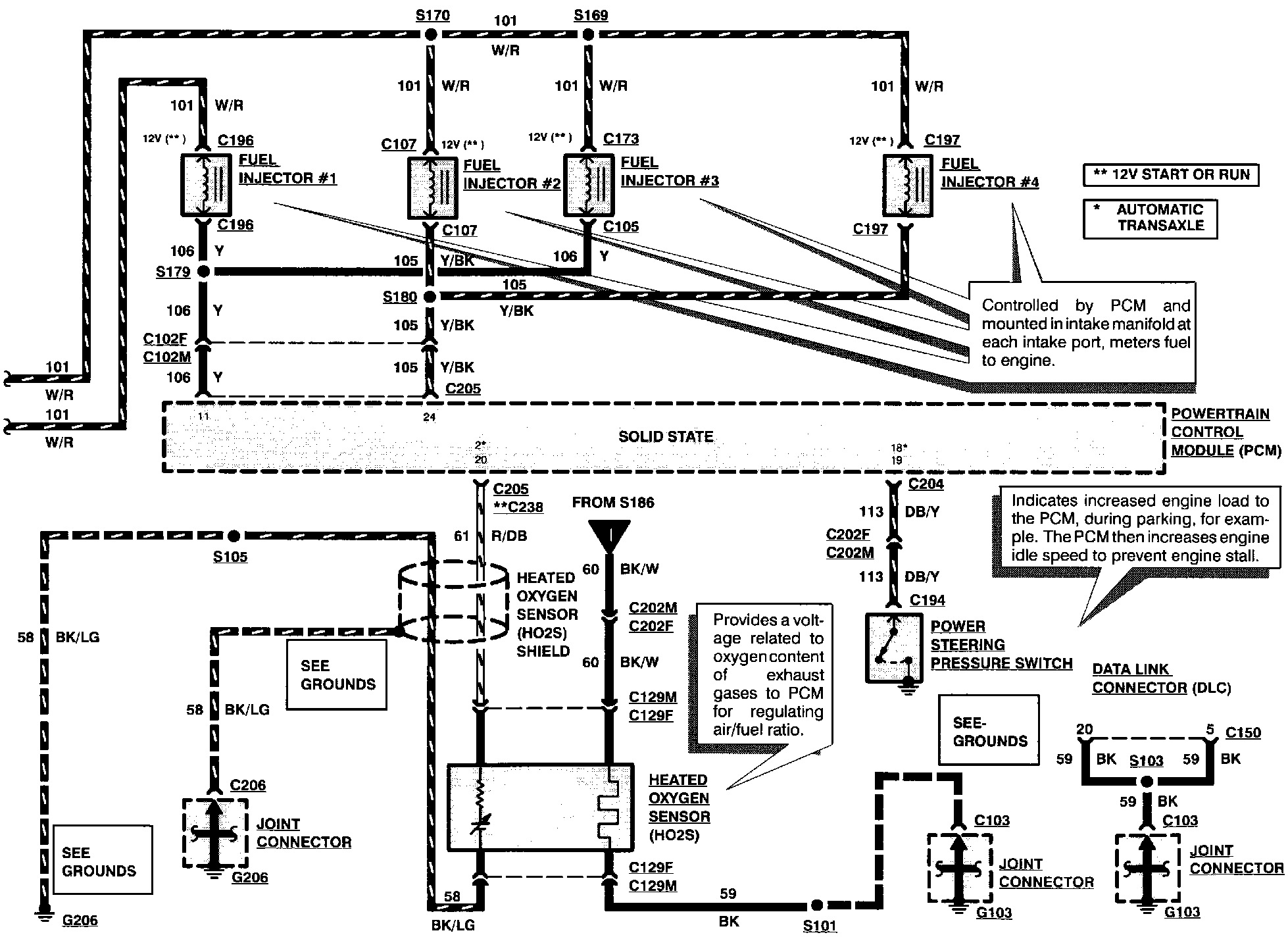

Engine Controls (Part 4 Of 6):

FUEL INJECTORS
HEATED OXYGEN SENSOR
POWER STEERING PRESSURE SWITCH

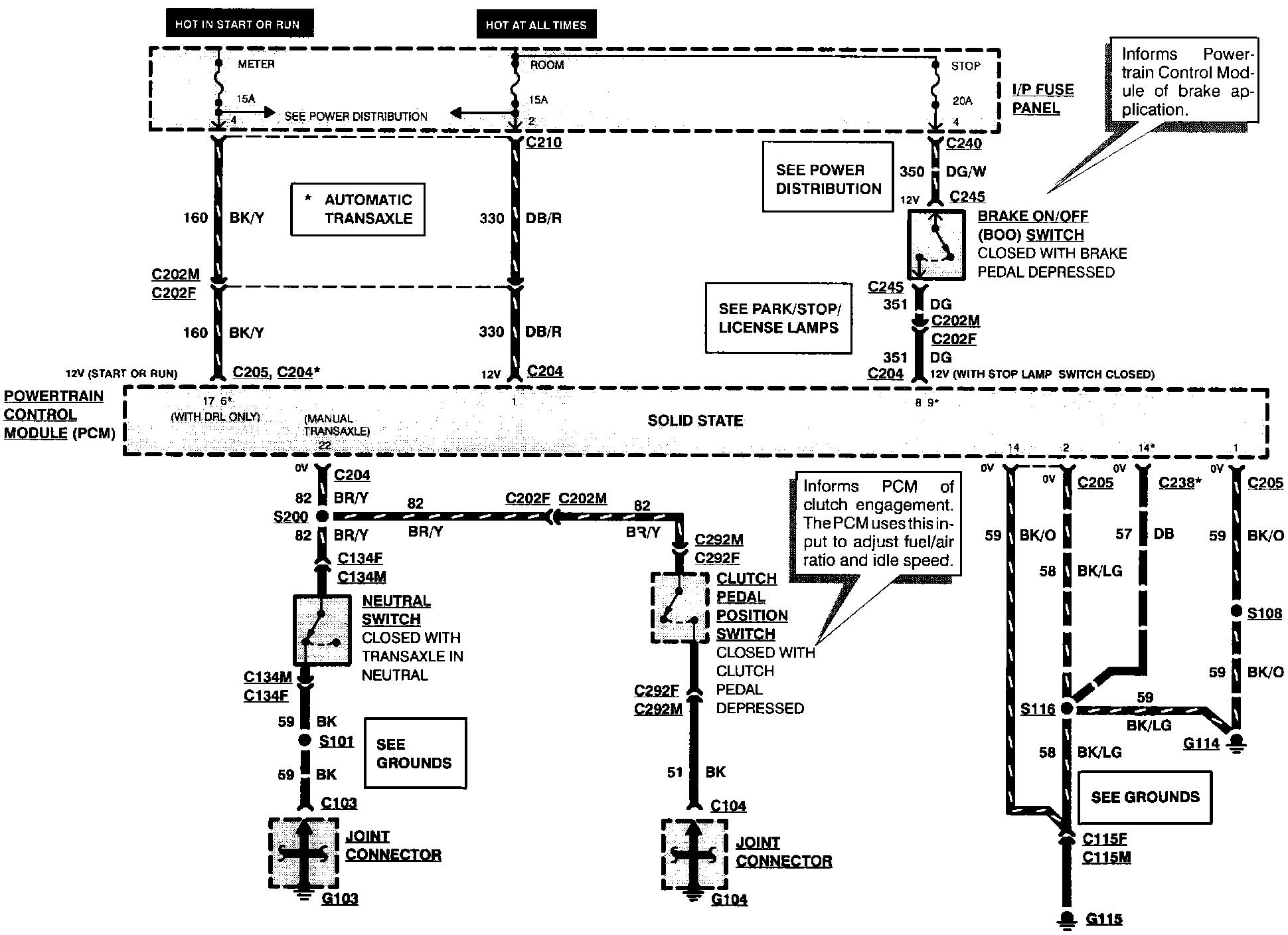

Engine Controls (Part 5 Of 6):

BRAKE ON/OFF SWITCH
NEUTRAL SWITCH
