Fuse FUEL INJECTOR

Fuse FUEL INJECTOR - protects the following circuits:
^ Engine Controls
^ Charging System

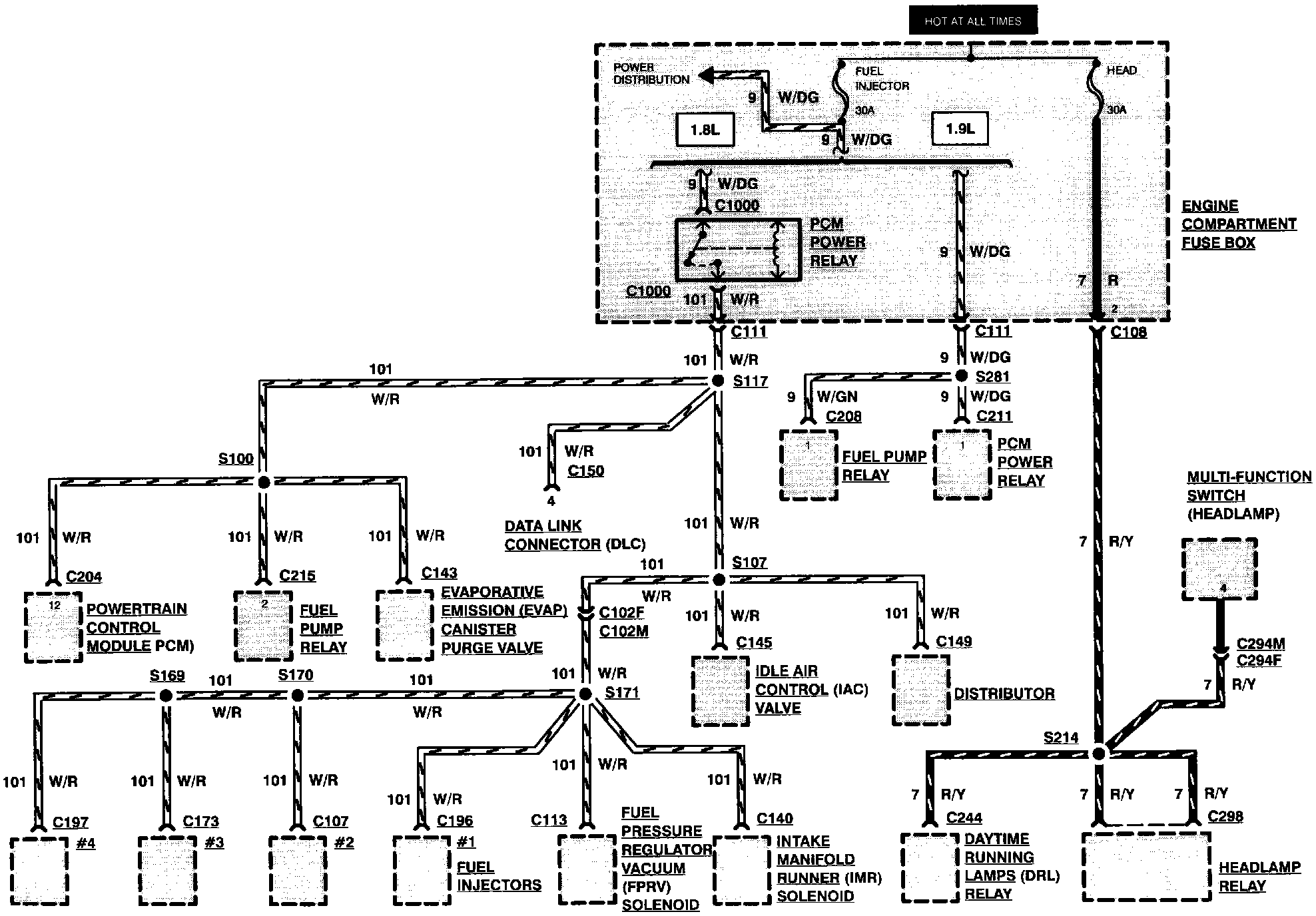

Power Distribution:




Power Distribution:
