Home >> Mercury >> 1995 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Diagrams (By Ground Number) >> G404

G404

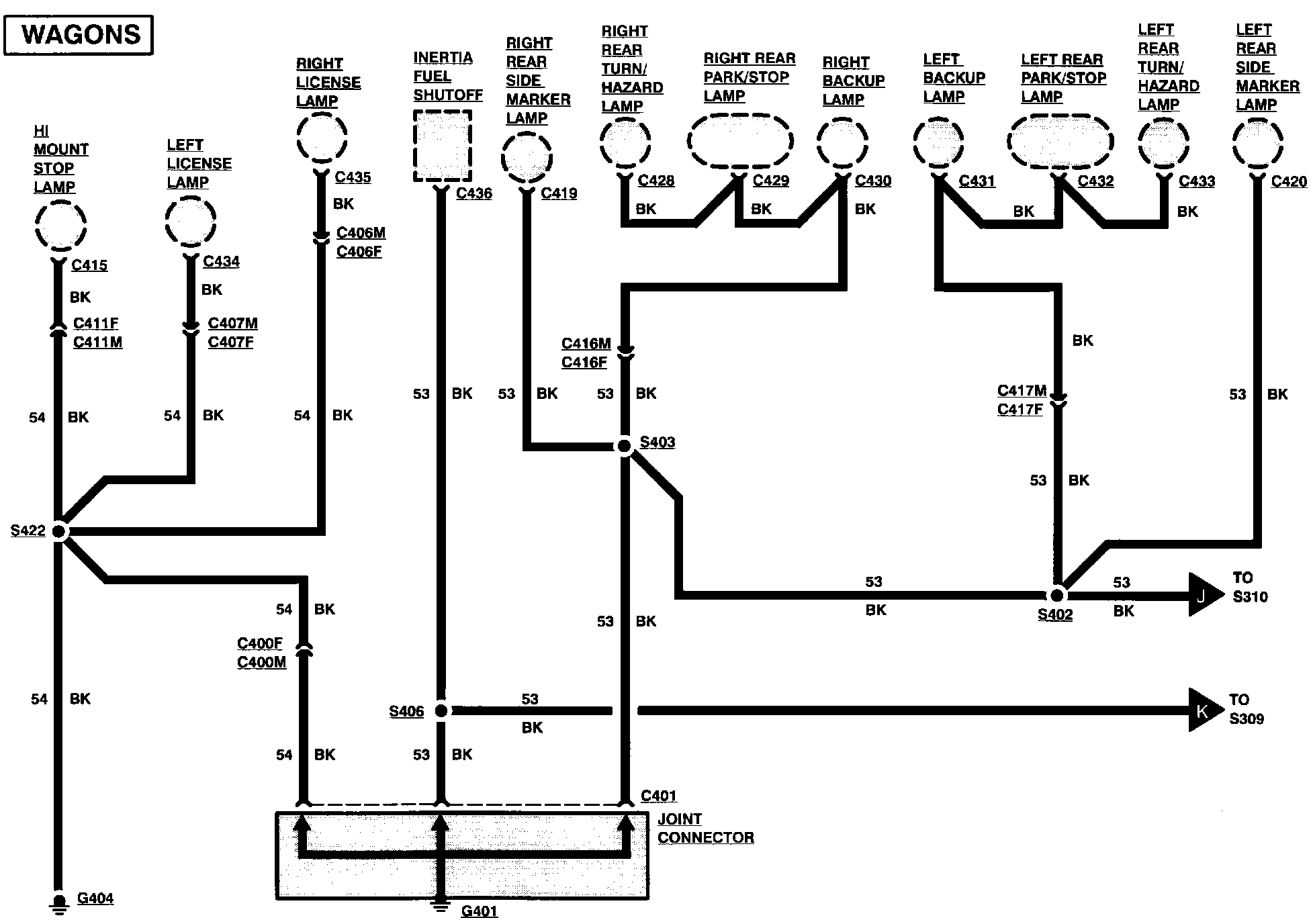

Grounds (G401, G404):
