Ground Diagrams (By Component Name)

Grounds (G104):

A/C High Pressure Cutoff Switch
Brake Fluid Level Switch
Clutch Pedal Position Switch
Electric Cooling Fan
Engine Compartment Lamp
Engine Coolant Level Switch
Hi Fan Engine Coolant Temperature Switch
Left Front/Park/Turn Lamp
Left Headlamp
Windshield Wiper Motor

Grounds (G104):

A/C High Pressure Cutoff Switch
ABS Control Module
ABS Hydraulic Unit
ABS Main Relay
Brake Fluid Level Switch
Clutch Pedal Position Switch
Electric Cooling Fan
Engine Compartment Lamp
Engine Coolant Level Switch
Hi Fan Engine Coolant Temperature Switch
Left Front/Park/Turn Lamp
Left Headlamp
Windshield Wiper Motor

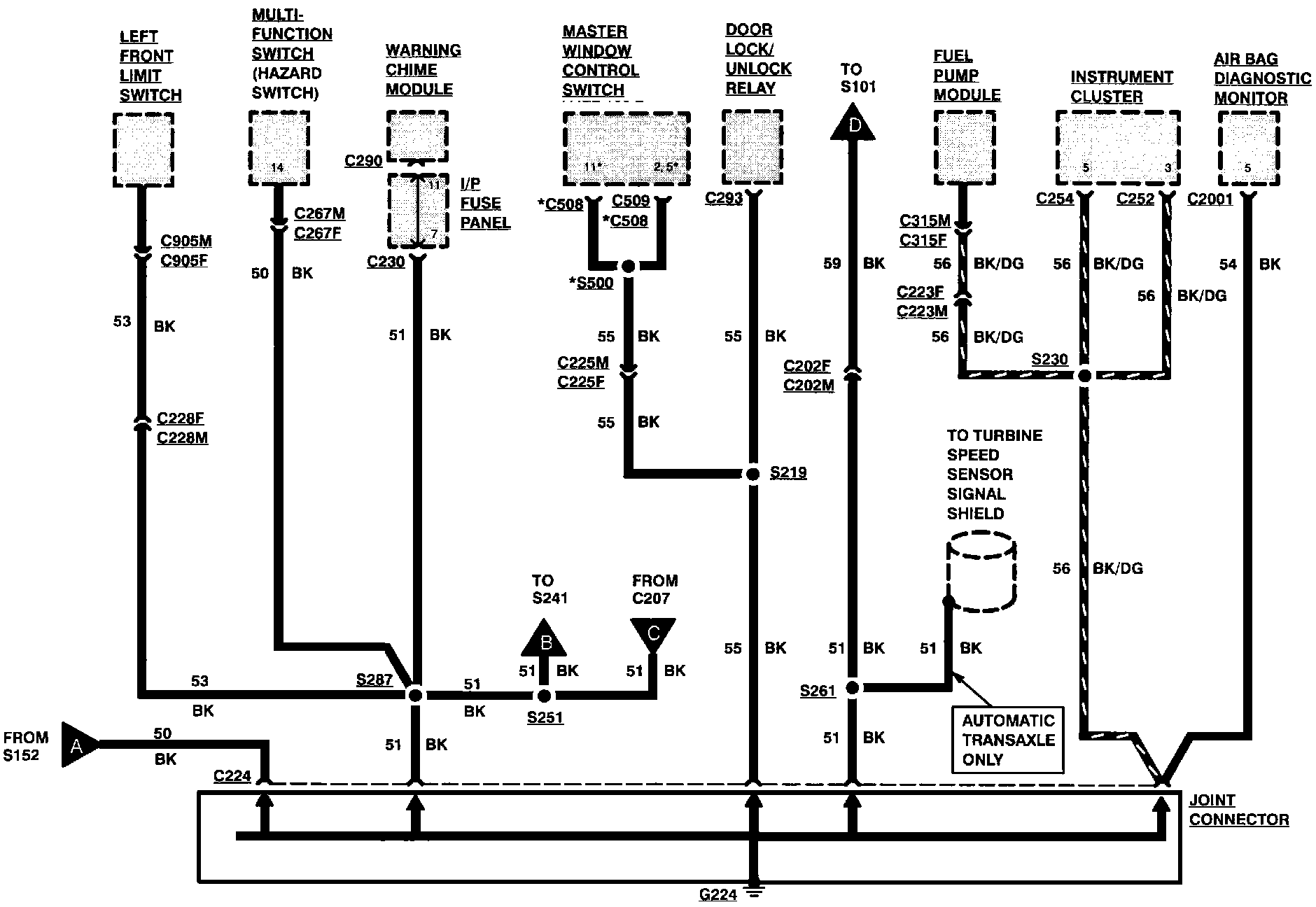

Grounds (G224):

Air Bag Diagnostic Monitor
Door Lock/Unlock Relay
Fuel Pump Module
Instrument Cluster
Left Front Limit Switch
Master Window Control Switch
Multi-Function Switch (Hazard Switch)
Warning Chime Module

Grounds (G106):

Left Fog Lamp
Multi-Function Switch (Wiper/Washer)
Right Fog Lamp
Right Front Park/Turn Lamp
Right Headlamp
Windshield Washer Pump Motor

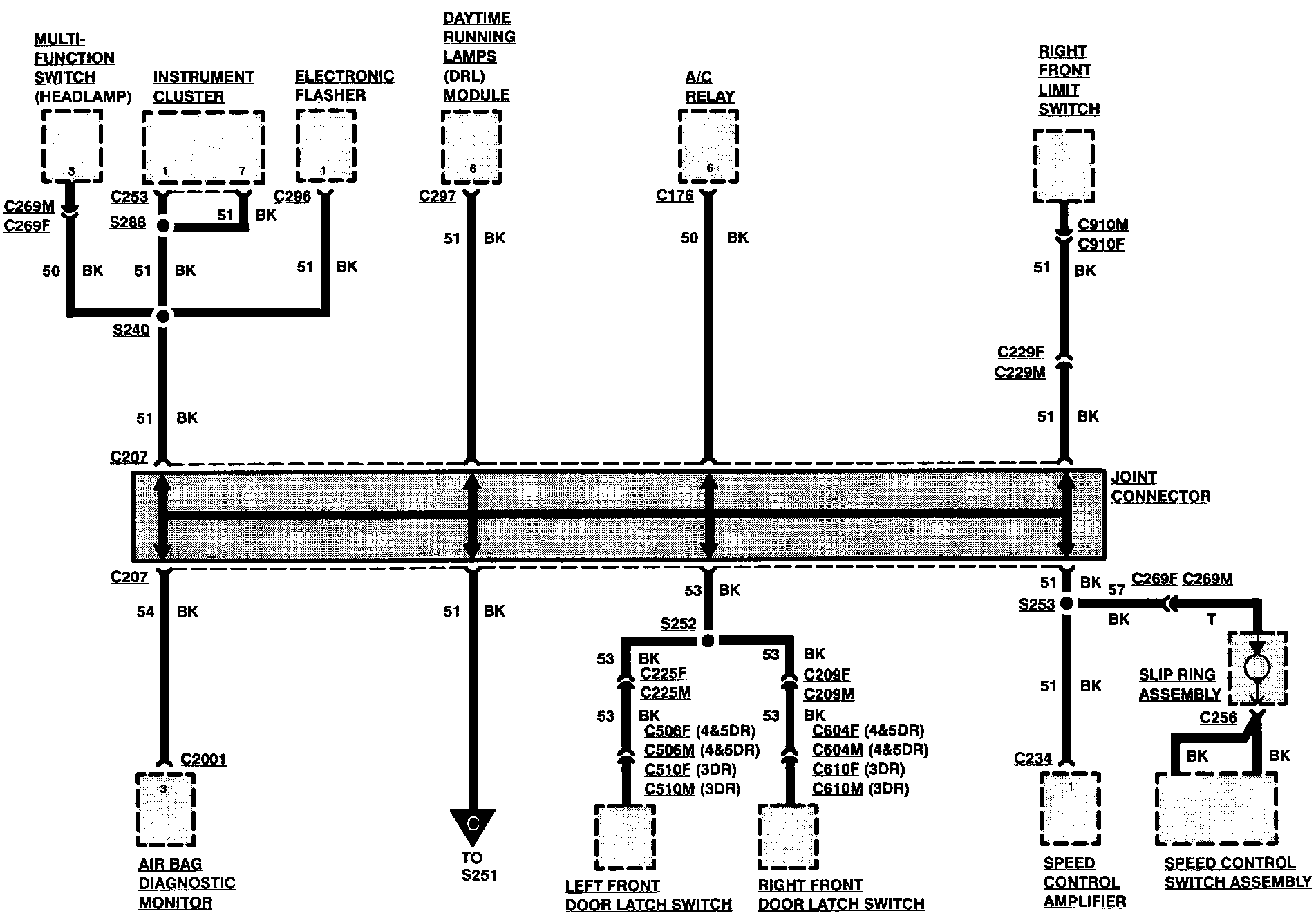

Grounds (G224):

A/C Relay
Air Bag Diagnostic Monitor
Daytime Running Lamps Module
Electronic Flasher
Instrument Cluster
Joint Connector
Left Front Door Latch Switch
Multi-Function Switch (Headlamp)
Right Front Door Latch Switch
Right Front Limit Switch
Speed Control Amplifier
Speed Control Switch Assembly
Warning Chime Module

Grounds (G103, G206):

Data Link Connector
Engine Compartment Fuse Box
Engine Coolant Temperature Sensor
Fuel Pump Relay
Heated Oxygen Sensor
Joint Connector
Neutral Switch
PCM Power Relay
Throttle Position Sensor/Switch
Volume Air Flow Meter

Grounds (G101, G102, G114, G115):

Battery
Distributor
Distributor Ignition Module
Heated Oxygen Sensor
Powertrain Control Module
Radio Noise Capacitor
Solenoid Control Assembly
Speed Control Amplifier
Transaxle
Vehicle Speed Sensor

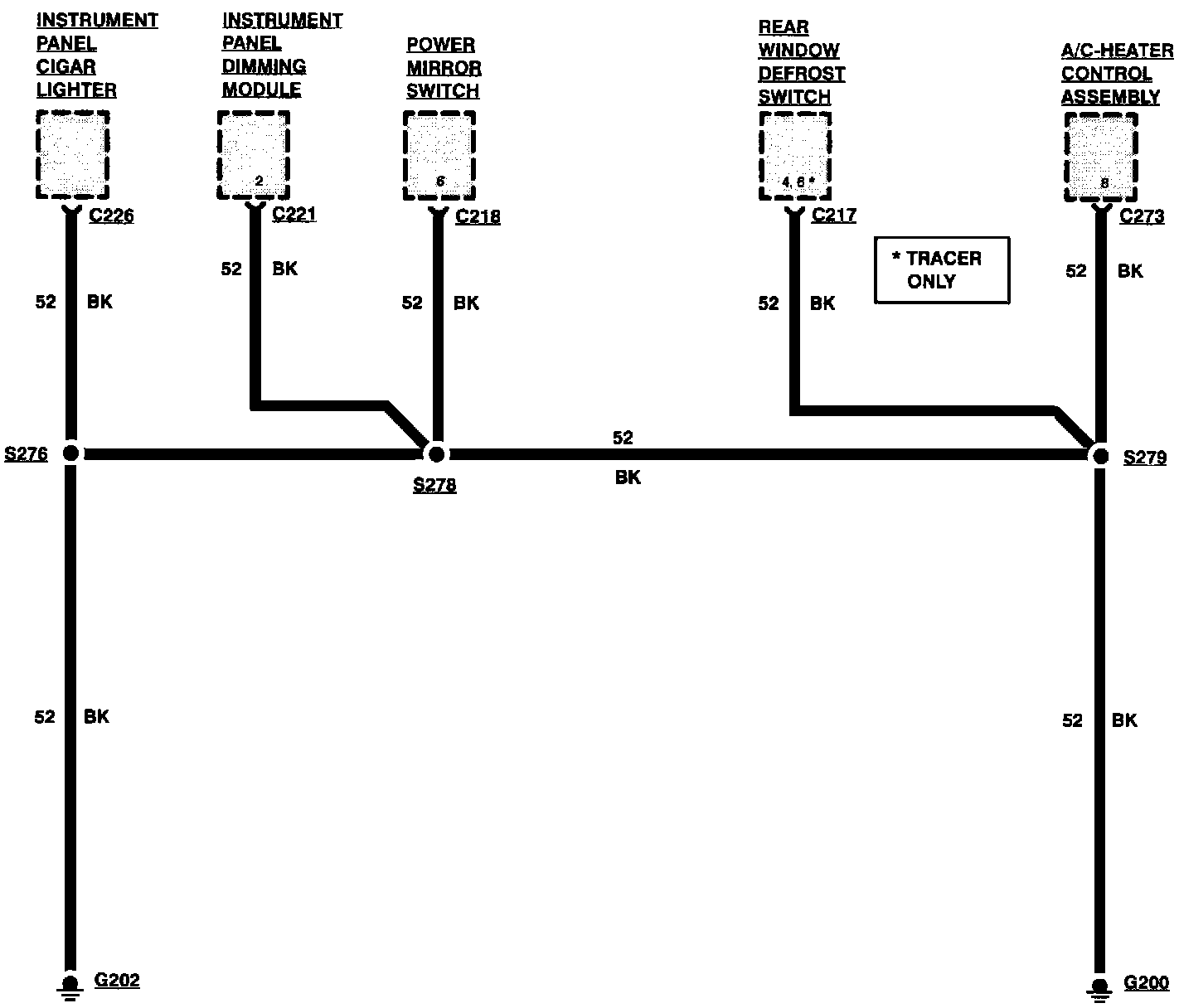

Grounds (G200, G202):

A/C Heater Control Assembly
Instrument Panel Cigar Lighter
Instrument Panel Dimming Module
Power Mirror Switch
Rear Window Defrost Switch

Grounds (G401, G403):

Hi Mount Stop Lamp
Inertia Fuel Shutoff
Joint Connector
Left Backup Lamp
Left License Lamp
Left Rear Park/Stop Lamp
Left Rear Turn/Hazard Lamp
Rear Window Defrost Grid
Right Backup Lamp
Right License Lamp
Right Rear Park/Stop Lamp
Right Rear Turn/Hazard Lamp

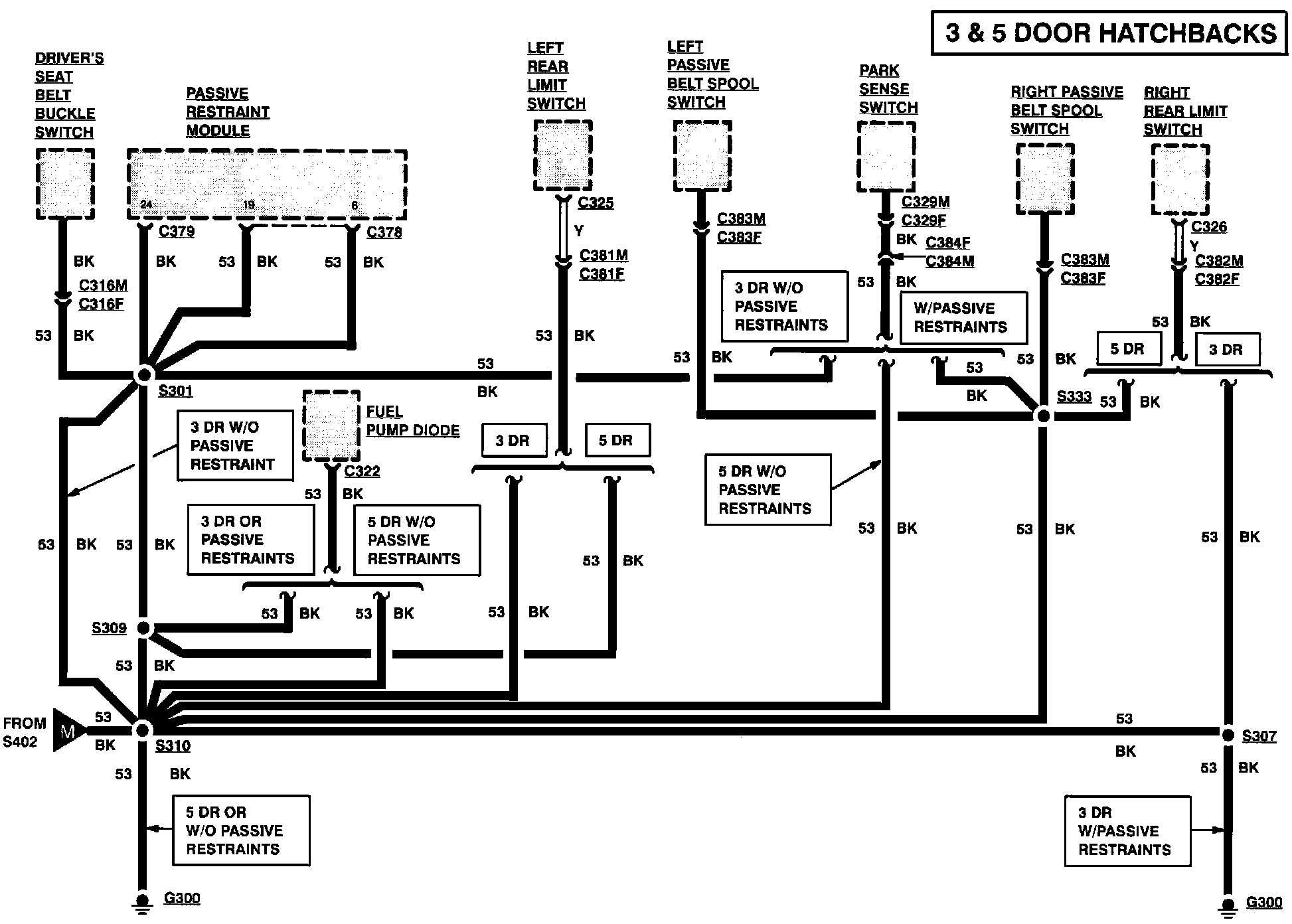

Grounds (G300):

Driver Seat Belt Buckle Switch
Fuel Pump Diode
Left Passive Belt Spool Switch
Left Rear Limit Switch
Park Sense Switch
Passive Restraint Module
Right Passive Belt Spool Switch
Right Rear Limit Switch

Grounds (G401, G404):

Hi Mount Stop Lamp
Inertia Fuel Shutoff
Joint Connector
Left Backup Lamp
Left License Lamp
Left Rear Park/Stop Lamp
Left Rear Side Marker Lamp
Left Rear Turn/Hazard Lamp
Right Backup Lamp
Right License Lamp
Right Rear Park/Stop Lamp
Right Rear Side Marker Lamp
Right Rear Turn/Hazard Lamp

Grounds (G300):

Driver Seat Belt Buckle Switch
Fuel Pump Diode
Left Passive Belt Spool Switch
Left Rear Limit Switch
Park Sense Switch
Passive Restraint Module
Right Passive Belt Spool Switch
Right Rear Limit Switch

Grounds (G402):

Hi Mount Stop Lamp
Inertia Fuel Shutoff
Joint Connector
Left Backup Lamp
Left License Lamp
Left Rear Turn/Hazard/Park Lamp
Left Stop Lamp
Right Backup Lamp
Right License

Grounds (G401):

Driver Seat Belt Buckle Switch
Fuel Pump Diode
Hi Mount Stop Lamp
Joint Connector
Left Passive Belt Spool Switch
Left Rear Limit Switch
Park Sense Switch
Passive Restraint Module
Rear Window Defrost Grid
Right Passive Belt Spool Switch
Right Rear Limit Switch
Right Rear Turn/Hazard/Park Lamp
