Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Exterior Lamps
Exterior Lamps

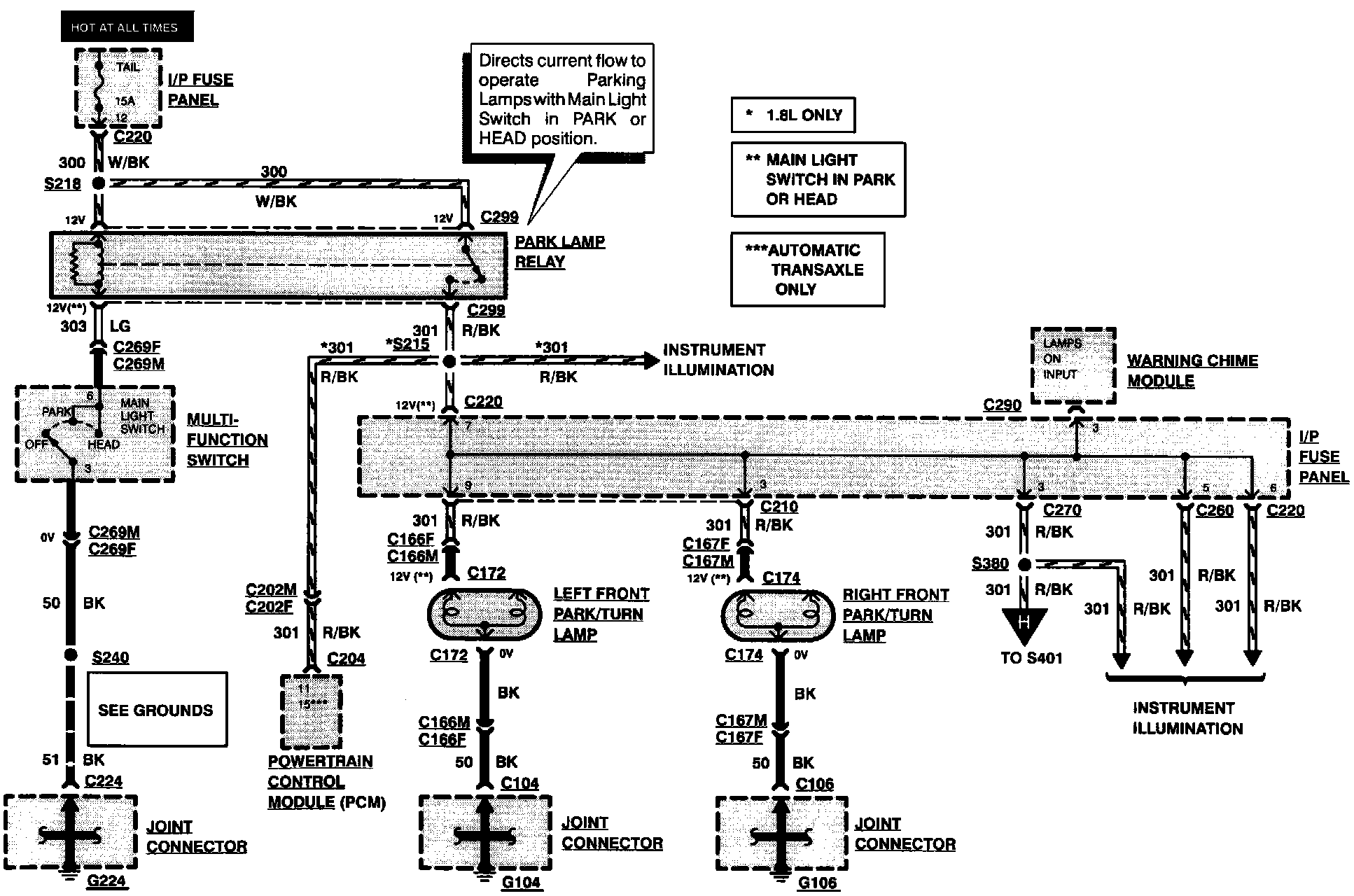

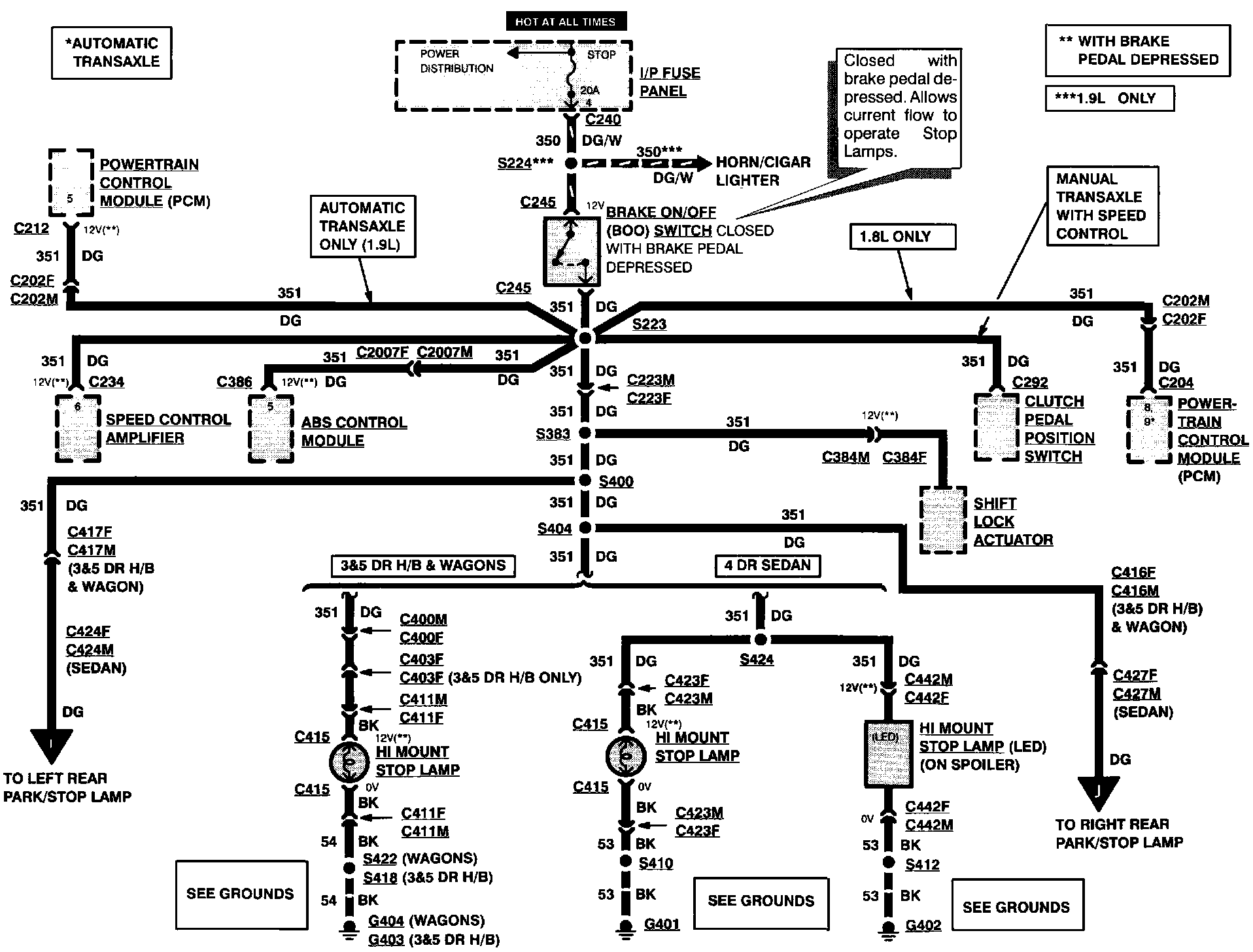

Park/Stop/License Lamps:
Park/Stop/License Lamps:

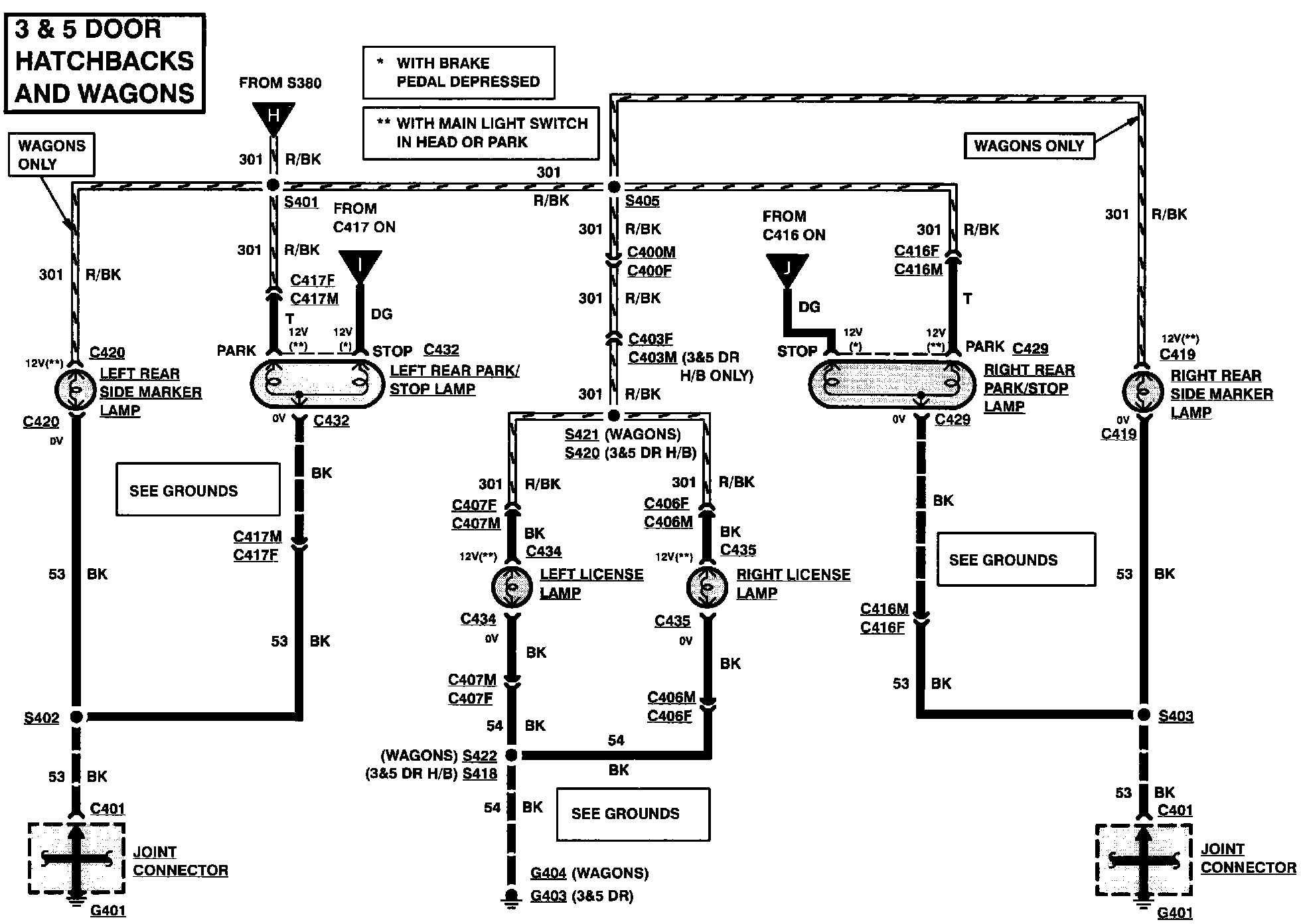

Park/Stop/License Lamps (3 & 5 Door Hatchbacks And Wagons):

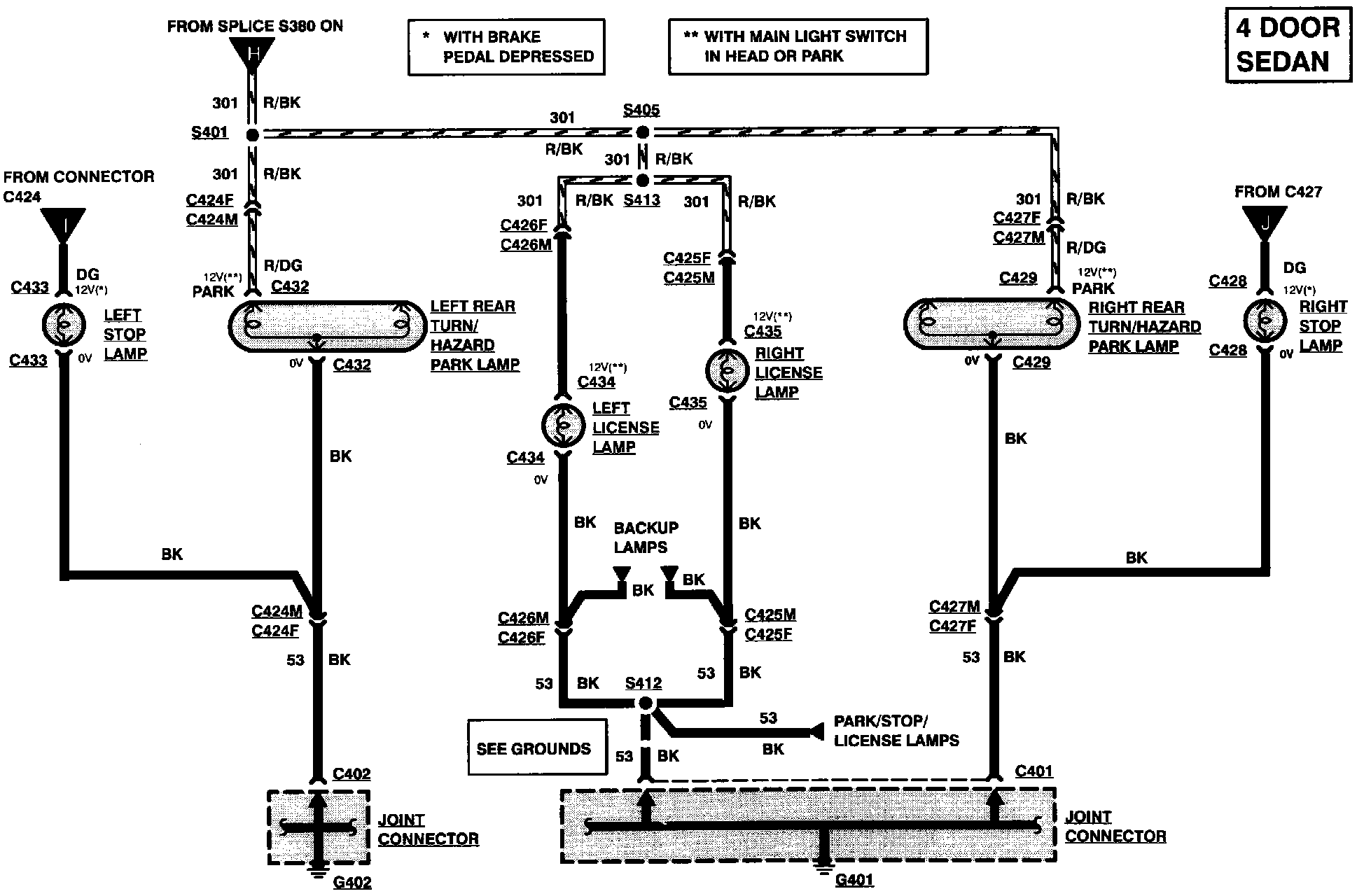

Park/Stop/License Lamps (4 Door Sedan):
