Sport Cluster

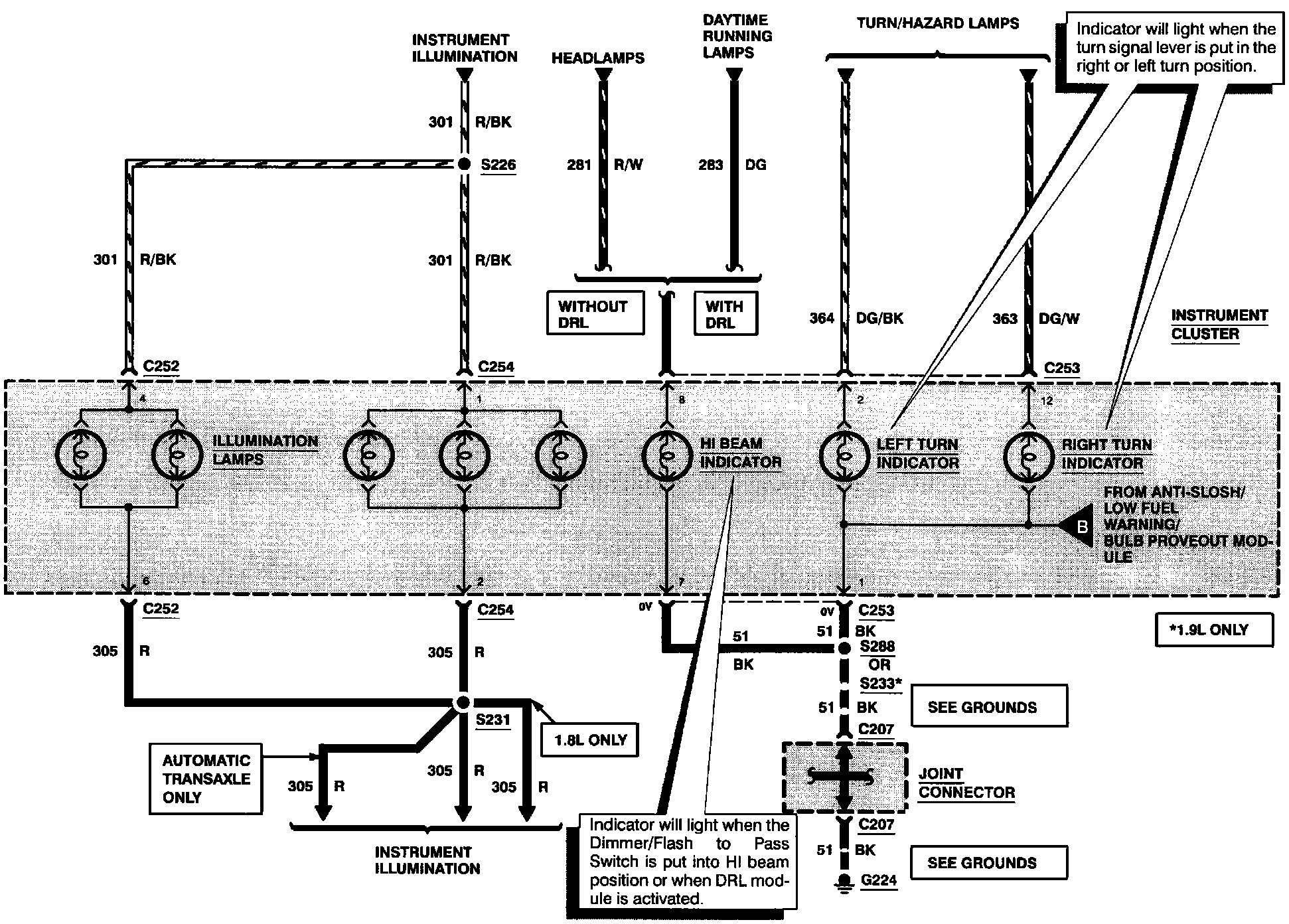

Instrument Cluster (Sport) (Part 1 Of 5):

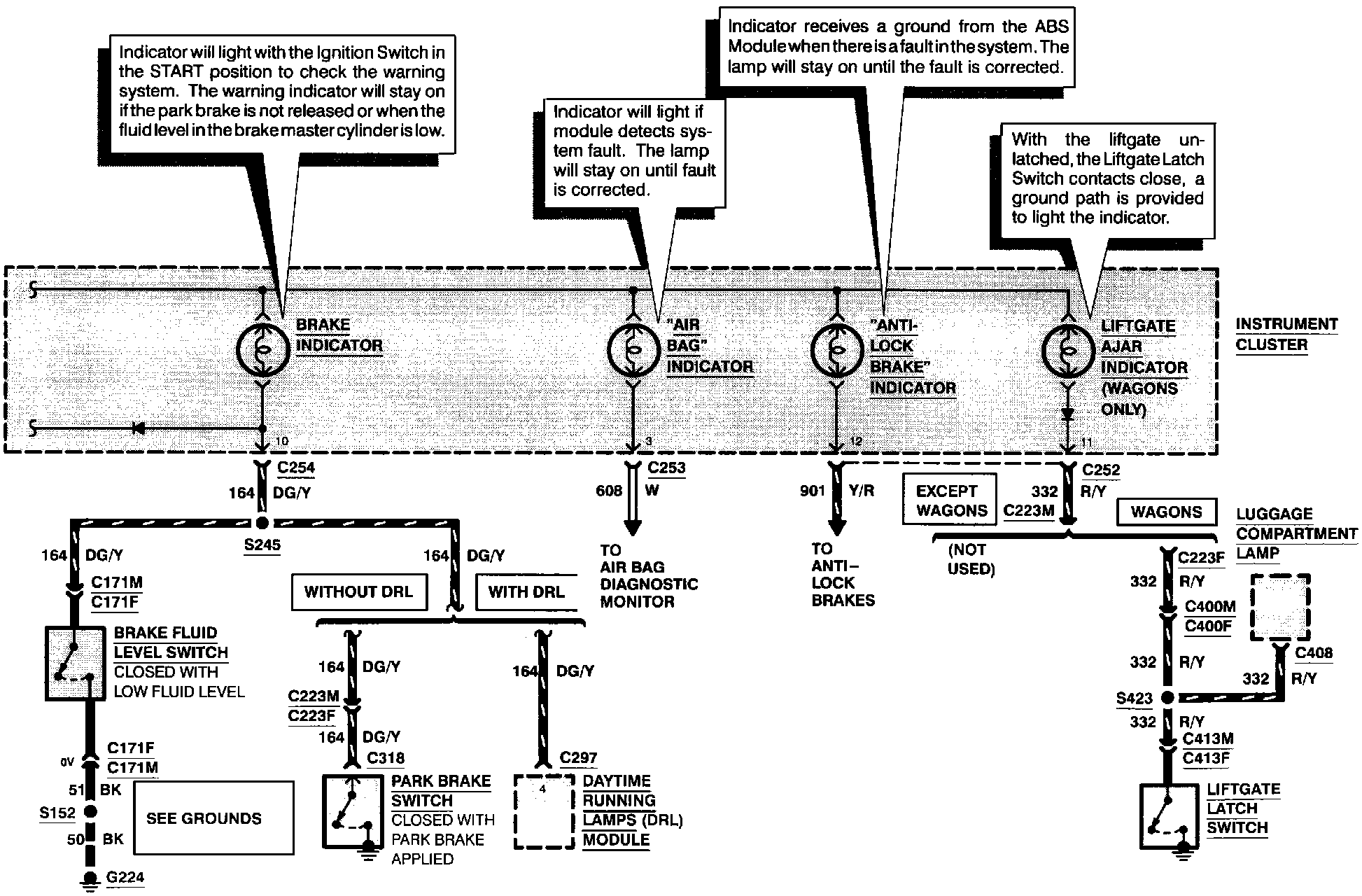

Instrument Cluster (Sport) (Part 2 Of 5):

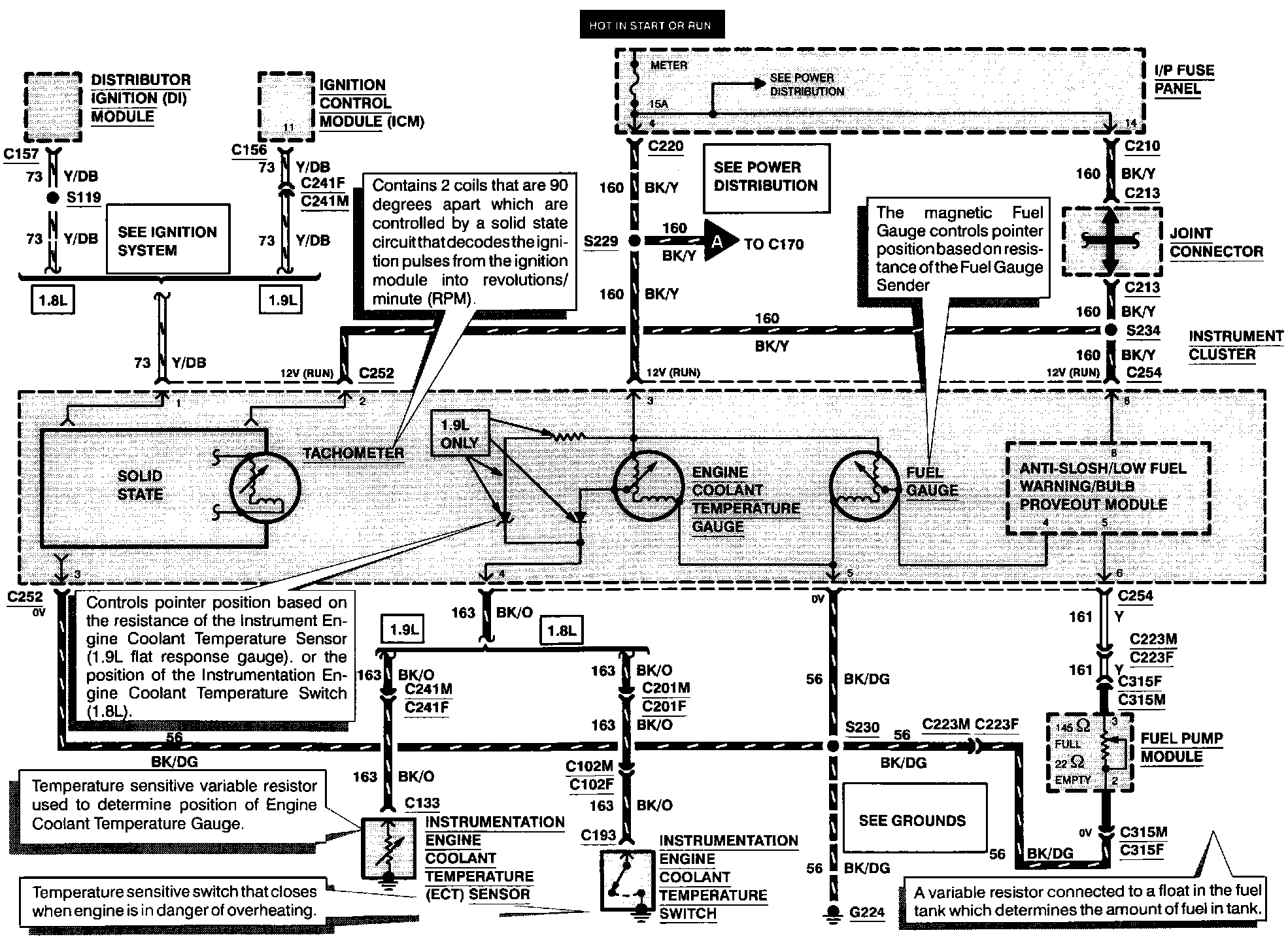

Instrument Cluster (Sport) (Part 3 Of 5):

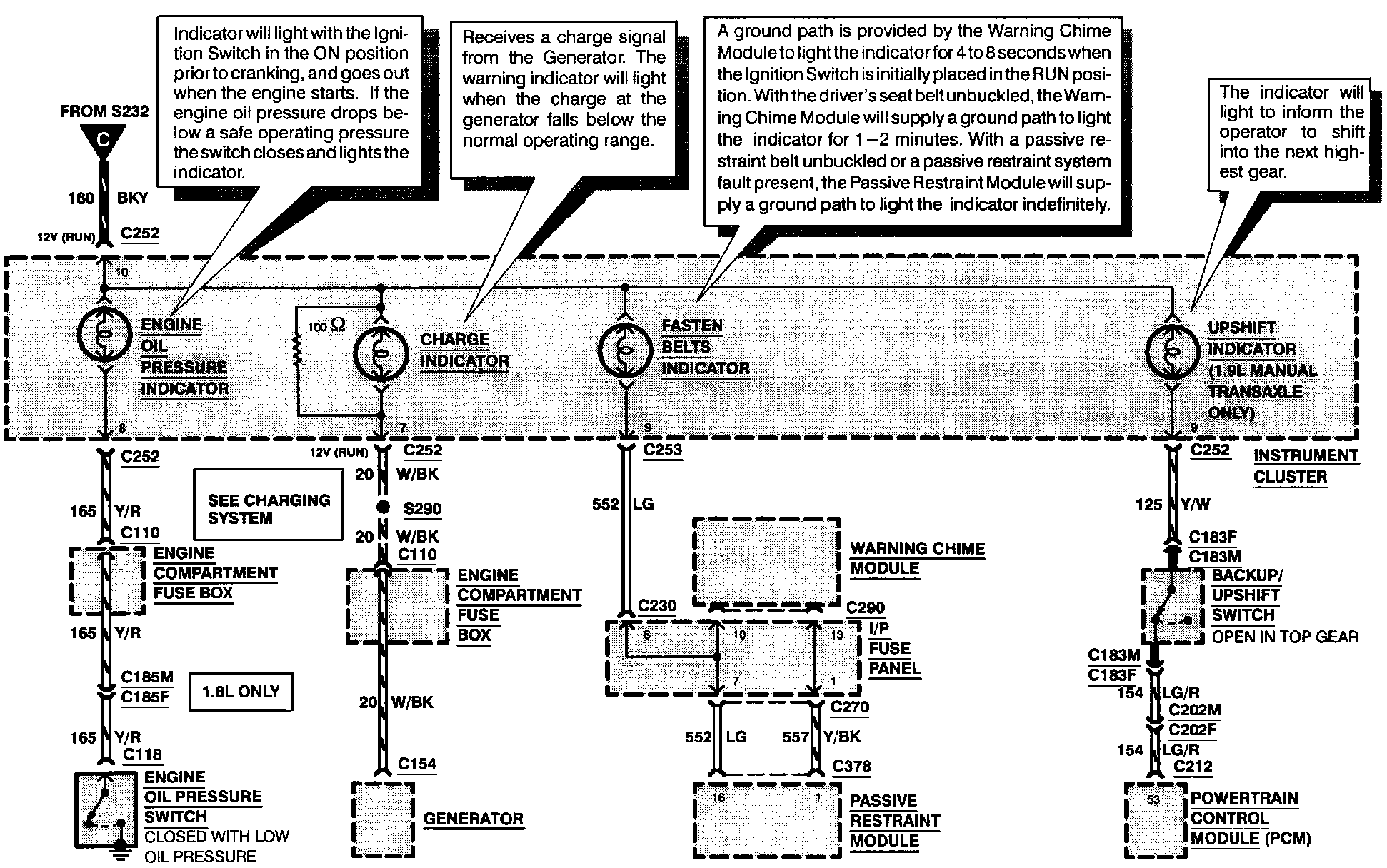

Instrument Cluster (Sport) (Part 4 Of 5):




Instrument Cluster (Sport) (Part 5 Of 5):
