Home
>>
Mercury
>>
1995
>>
Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

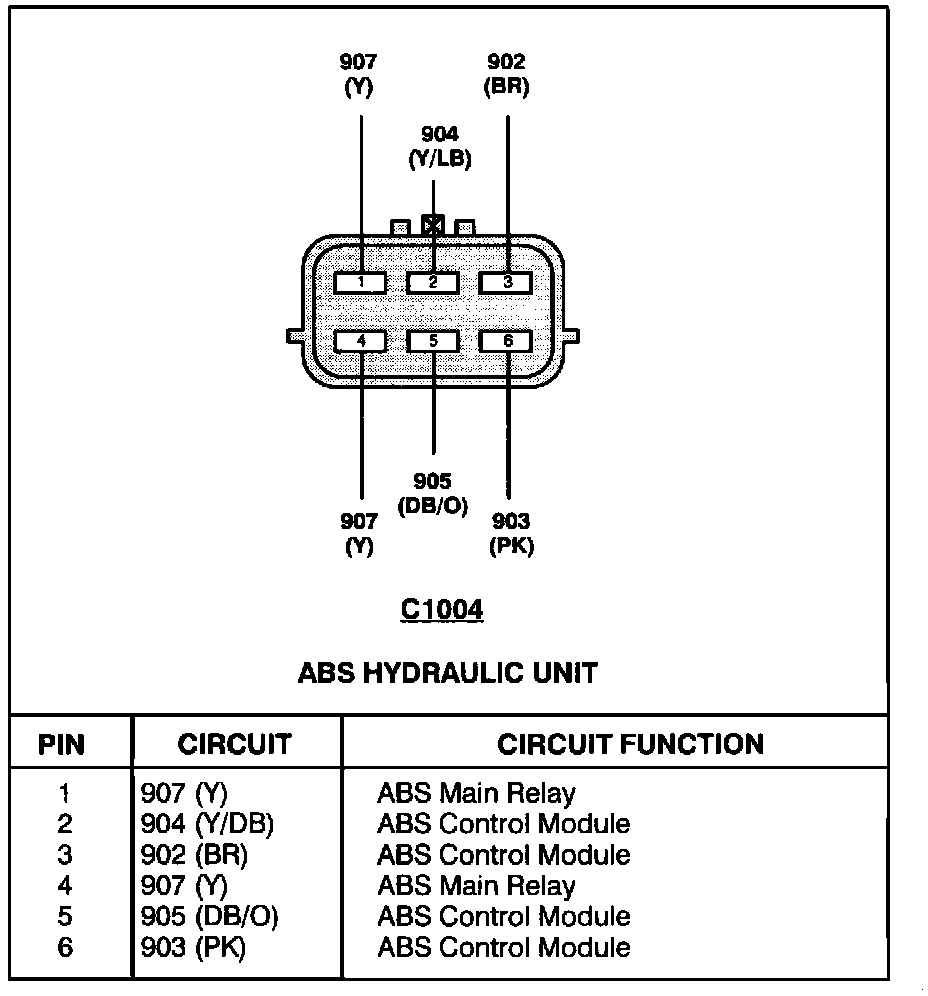

Anti_Lock Brake System Hydraulic Unit:
