Inspection - All Vehicles

1. If equipped, remove the radiator upper sight shield from the vehicle.

2. Disconnect the cooling fan motor electrical connector.

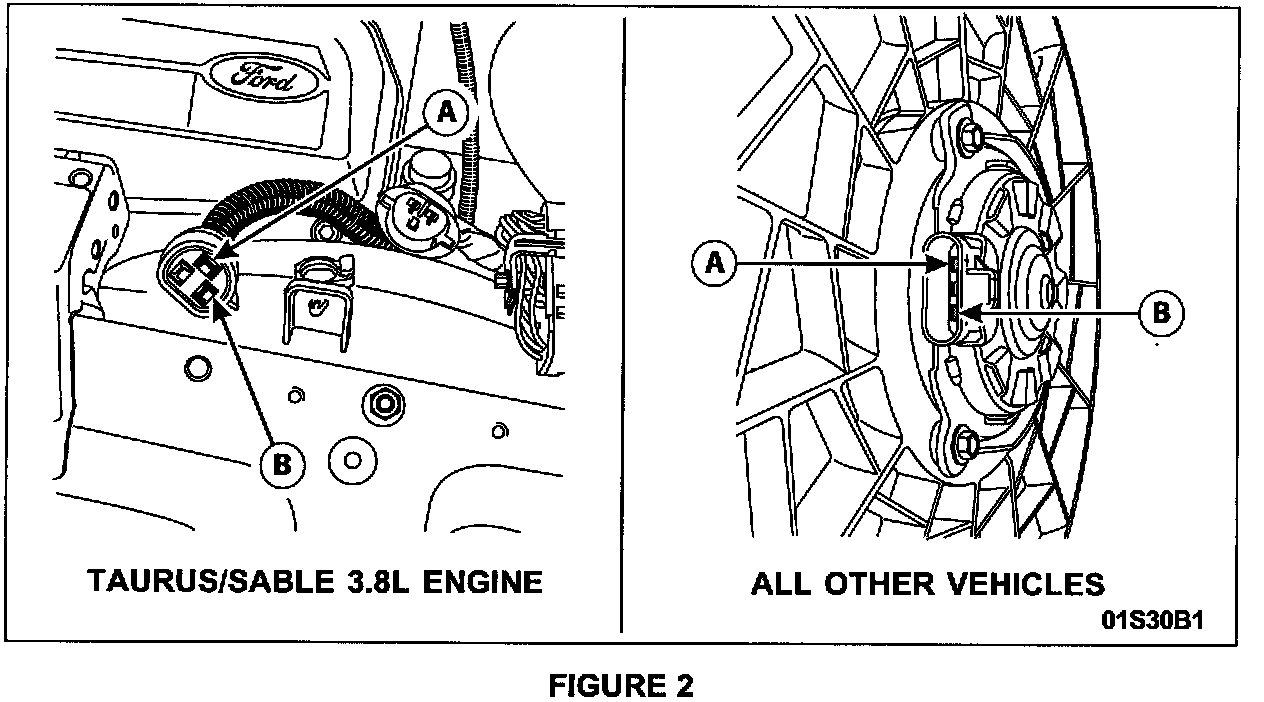

3. Using two (2) jumper wires, supply battery voltage to the terminal marked "A" and battery ground to the terminal marked "B". See Figure 2.

4. If the cooling fan operates normally when power and ground are supplied, go to Circuit Breaker Module Installation.

5. If the cooling fan does not operate normally when power and ground are supplied, go to Cooling Fan and Shroud Assembly Replacement.
