Autolamp Time Control Switch

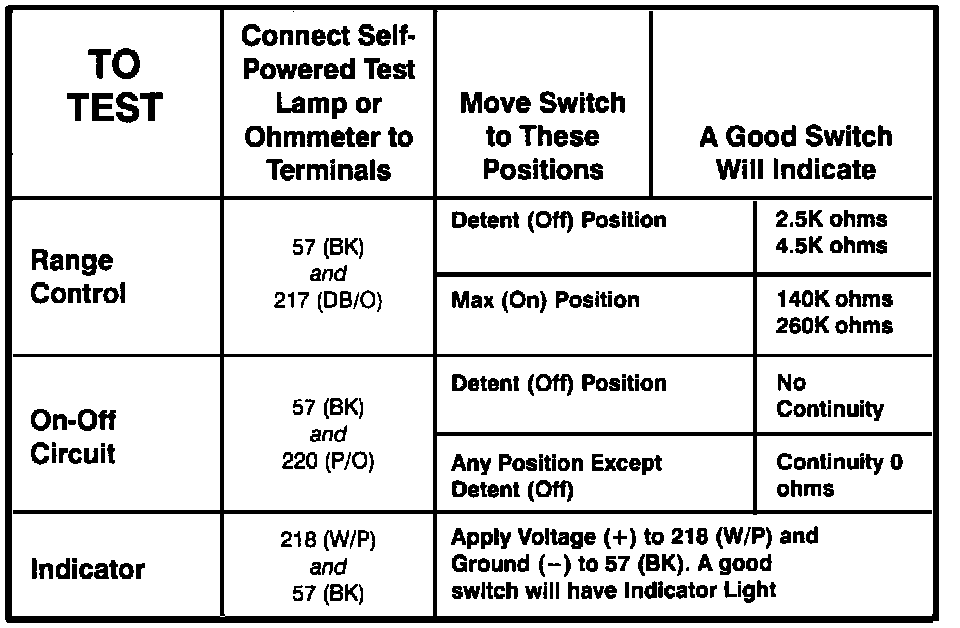

Autolamp Time Control Switch - Component Testing Procedure:




Autolamp Time Control Switch - Terminal Locations:

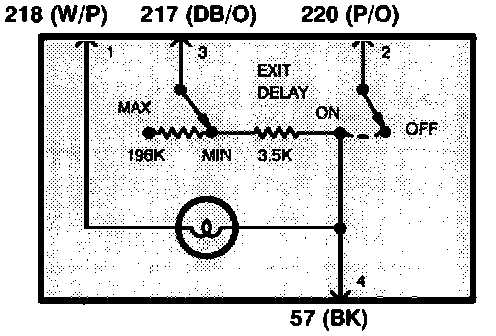

Autolamp Time Control Switch - Schematic:
