Ignition Coil Bracket

REMOVAL
1. Remove ignition coil and radio ignition interference capacitor (if required) from ignition coil mounting bracket.
2. Remove engine control sensor wiring support bracket retainer screw from ignition coil mounting bracket.

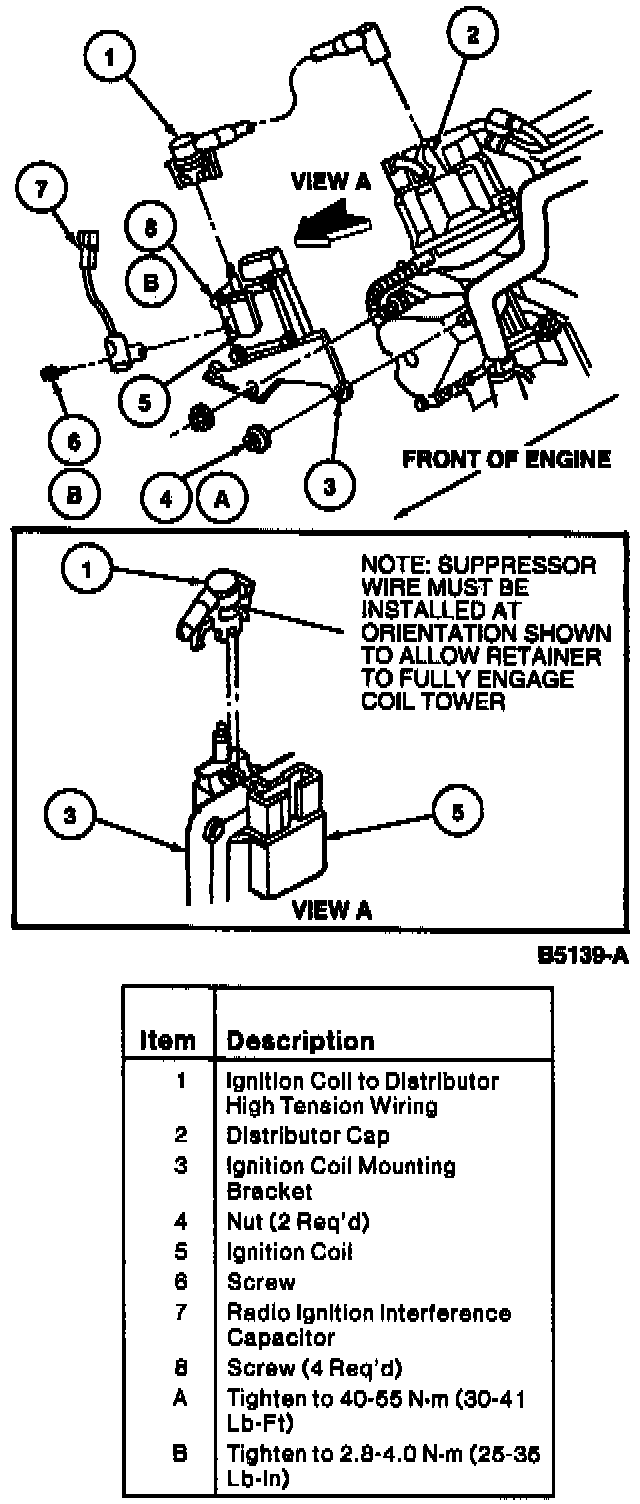

Ignition Coil Assembly:

3. Remove ignition coil mounting bracket retaining nuts or bolts and ignition coil bracket from cylinder head.

INSTALLATION
1. To install, reverse Removal procedure.
2. Tighten engine control sensor wiring support bracket retaining screw securely.
3. Tighten ignition coil mounting bracket retaining nuts to 40-55 Nm (30-41 lb ft).
