Home >> Mercury >> 1995 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Component Tests and General Diagnostics >> Conventional (Connector) >> Instrument Cluster 18-Pin Connector C1

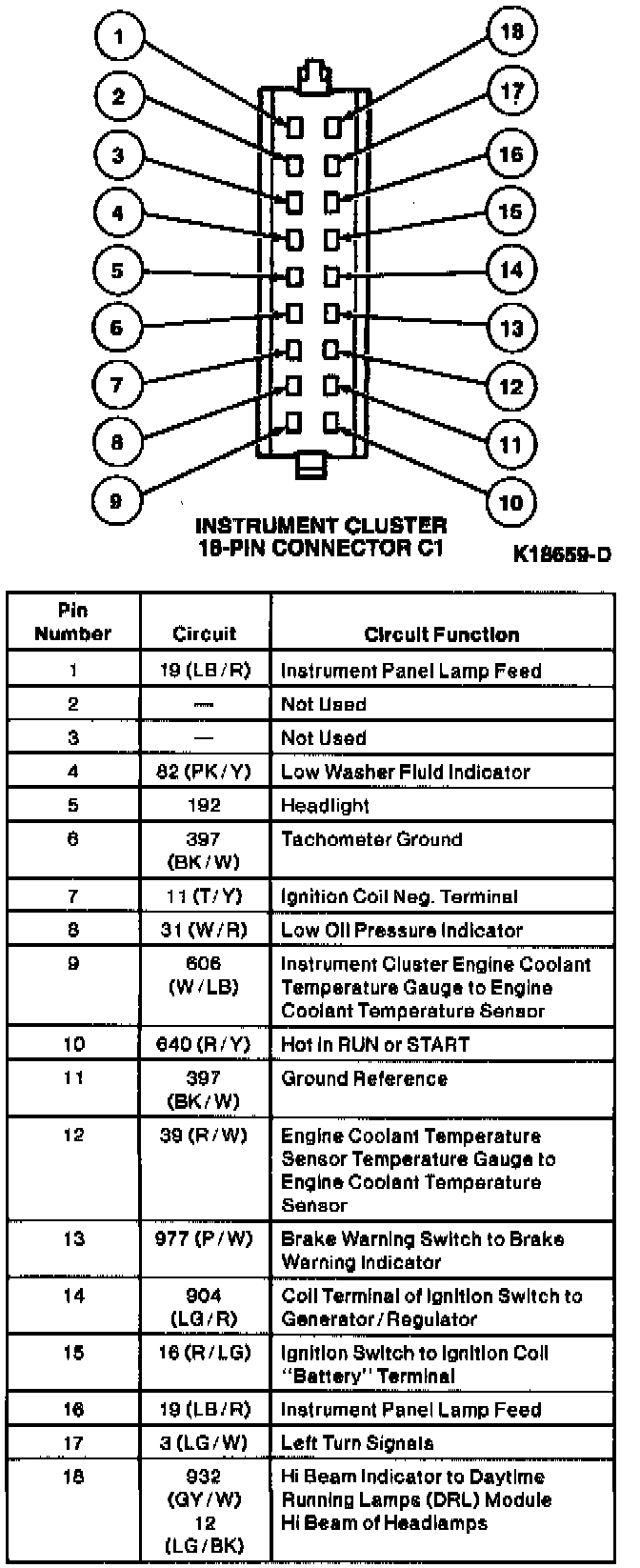

Instrument Cluster 18-Pin Connector C1
