With Column Shift

REMOVAL
1. Disconnect battery ground cable.
2. Remove ignition switch assembly to permit removal of steering column shrouds, please refer to Starting and Charging/Starting Systems/Ignition Lock/Service and Repair/ Service and Repair






3. Remove instrument panel steering column cover.

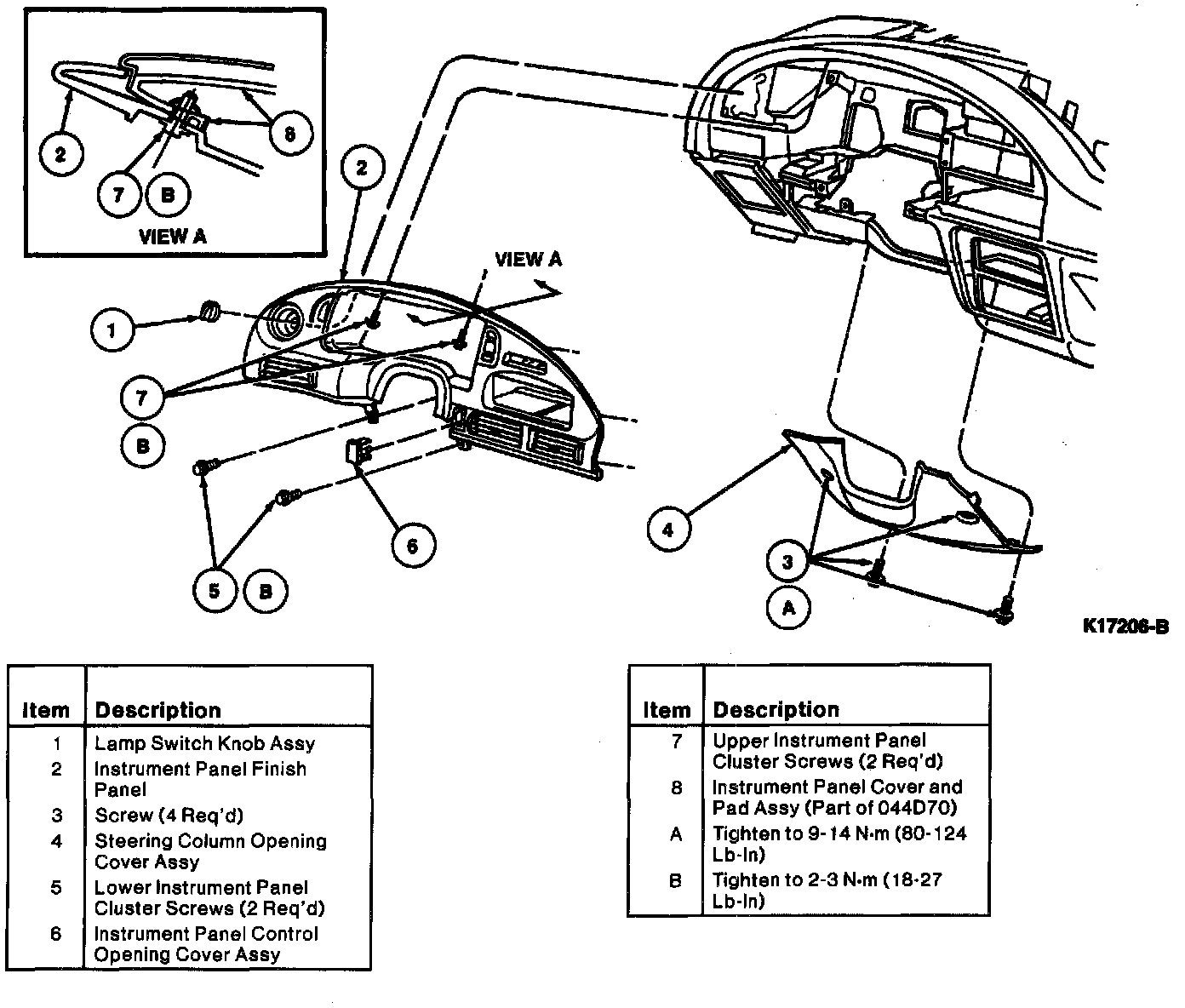

4. Remove screws retaining lower LH instrument panel finish panels and radio instrument panel finish panels (one screw each) and remove panels by snapping out.
5. Remove electric clock (or clock cover) to gain access to finish panel screw behind electric clock, please refer to Instrument Panel, Gauges and Warning Indicators/Clock/Service and Repair/ Service and Repair
6. Remove seven cluster opening finish panel retaining screws, and one jam nut behind headlamp switch. Remove finish panel by rocking upper edge toward driver.
7. Disconnect transmission range indicator cable from column (one screw and cable loop).
8. Disconnect upper speedometer cable from lower speedometer cable in engine compartment.
9. Remove four screws retaining instrument cluster to instrument panel finish panel and pull instrument cluster forward.
10. Disconnect cluster electrical connectors and speedometer cable. Press cable latch to disengage cable from speedometer head, while pulling cable away from instrument cluster. Remove instrument cluster.

INSTALLATION
1. To install, reverse Removal procedure and calibrate the transmission control selector indicator using the thumbwheel.
