Home >> Mercury >> 1995 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Charge Lamp/Indicator >> Testing and Inspection

Charge Lamp/Indicator: Testing and Inspection

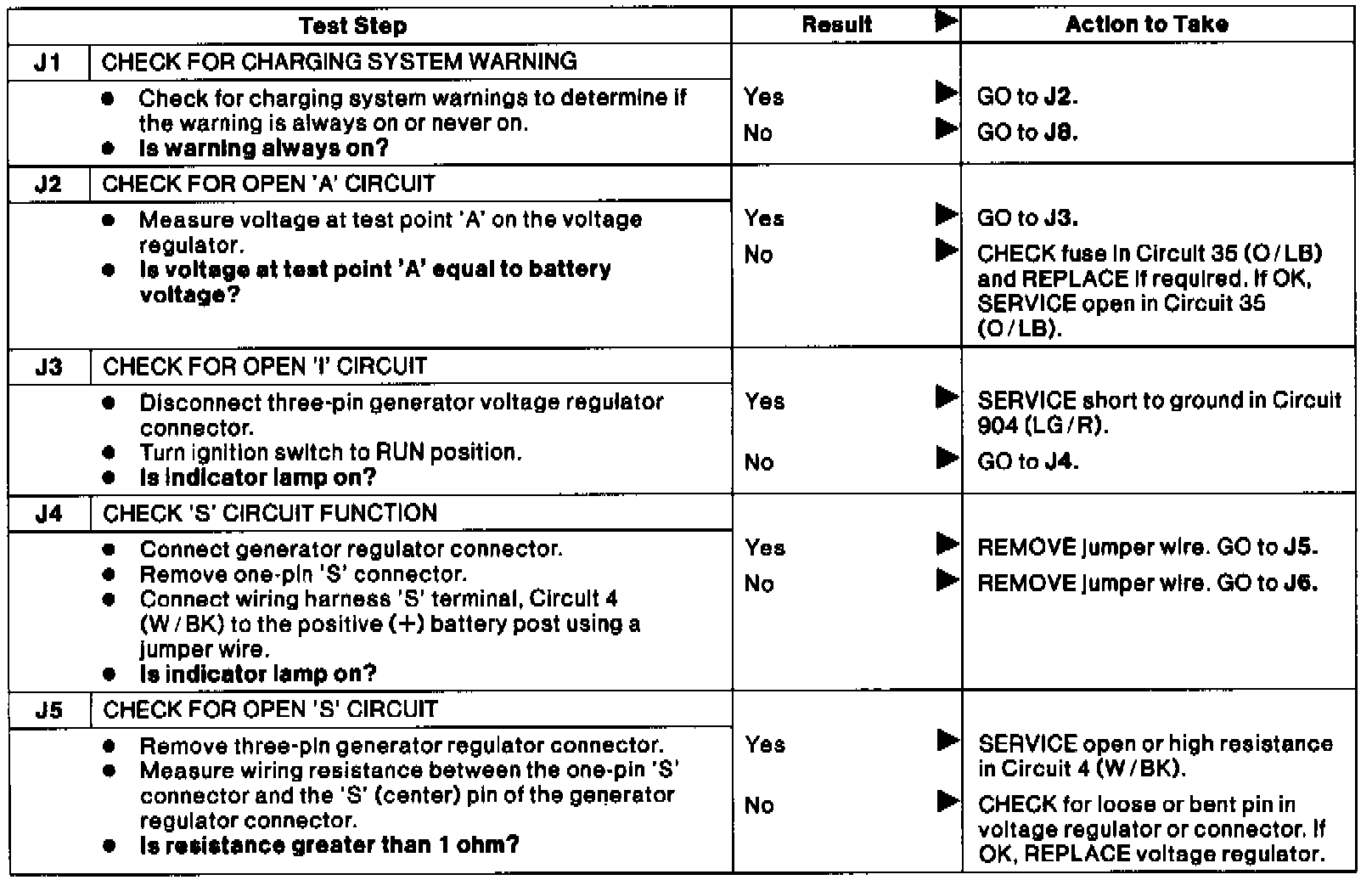

Test J: Charge System Warning Lamp Never/Always On.:

Test J1-J5

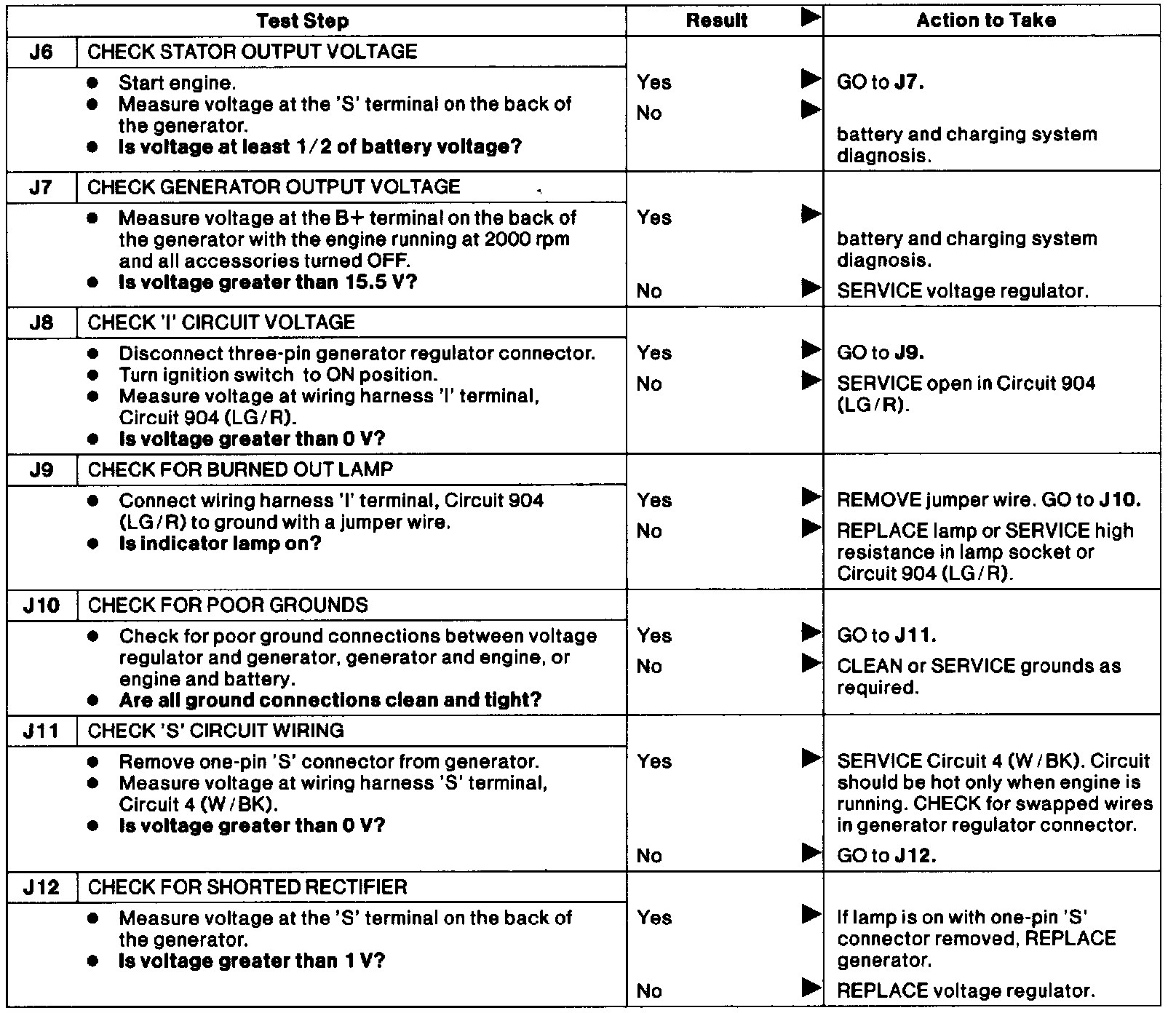

Test J: Charge System Warning Lamp Never/Always On.:

Test J6-J12
